Planmeca ProMax Technical Manual

Chapter H - CEPHALOSTAT
H-42 Planmeca ProMax
ADJUSTMENTS AND CALIBRATIONS
Technical manual
1.15 Calibrating the cephalostat sensor head
Remove the sensor alignment tool from the cephalostat sensor head connector. Attach the
sensor head to the connector.
Remove the nasial positioner and the ear posts from their holders. Attach the cephalostat
calibration tool to the right-hand ear post holder (near the sensor head).

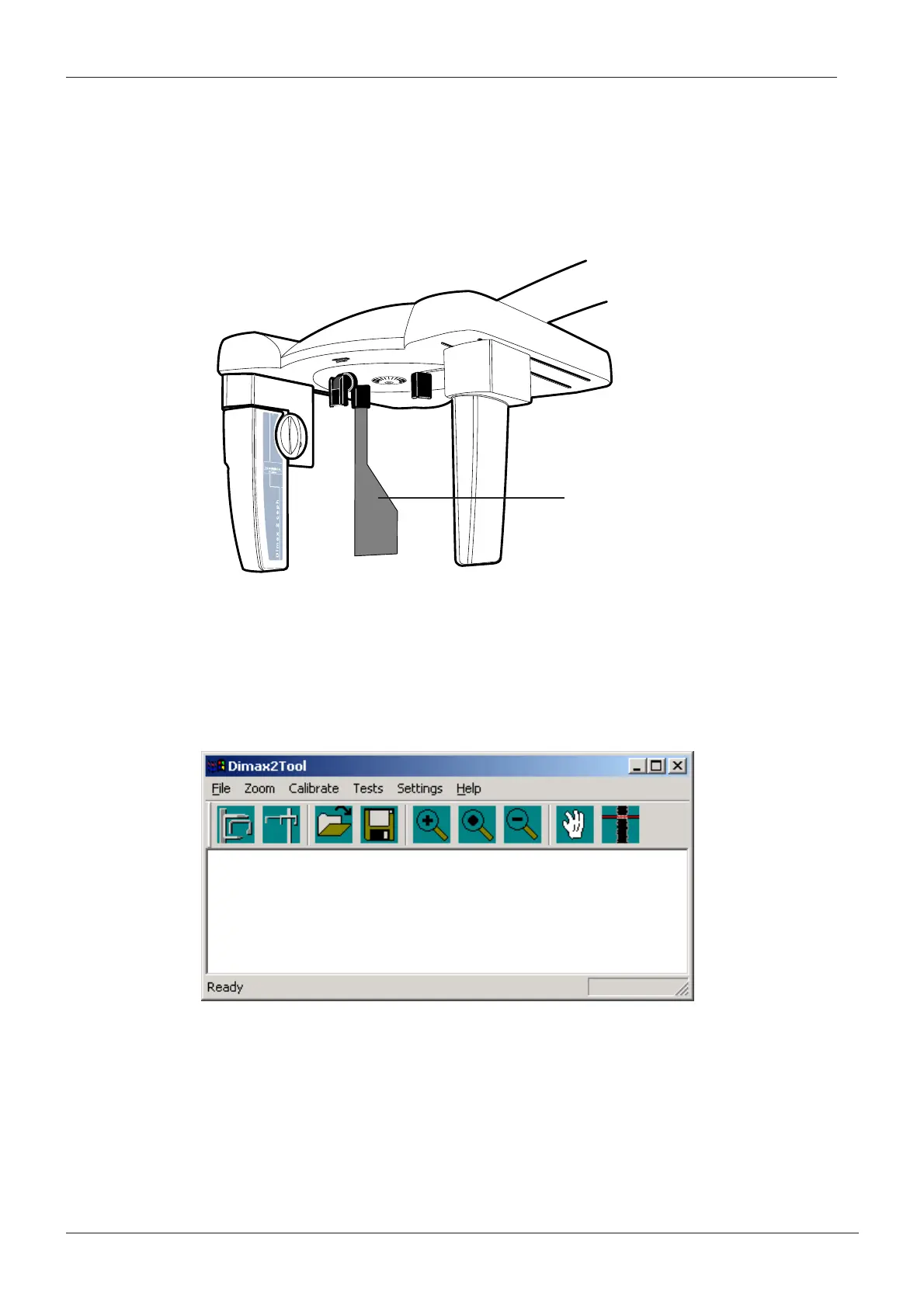

Figure 72
Make sure that the second primary collimator is in its position.
In the Main display select cephalometric program.
Start the Dimax calibration program by double-clicking the Dimax2Tool.exe program icon
located in the Romexis program folder. The DimaxTool window appears.
Figure 73
NOTE The system automatically creates the calibration files into the same folder where the
calibration program is located. The calibration files are named the following way
according to the serial number of the ProMax unit.
If the ProMax sensor head serial number e.g. is: RDX123456, then the calibration files
are named as: RDX123456.p4.cal (p = Panoramic) and RDX123456.c4.cal (c = Cepha-
lostat).
PXR_Ceph_calib_tool.eps
Cephalostat
calibration tool

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
