Chapter F - PATIENT SUPPORT ARM
Planmeca ProMax F-13
REPLACING PCBS
Technical Manual
4.2 Graphic user interface (GUI) PCB
Detach the user interface according to the instructions given in section “Detaching the user
interface” on page F-8.
Detach the grounding cable from the support plate.
Detach the user interface assembly from the interface box by unscrewing the four PT 3x12 rst
WN1451 Torx screws.

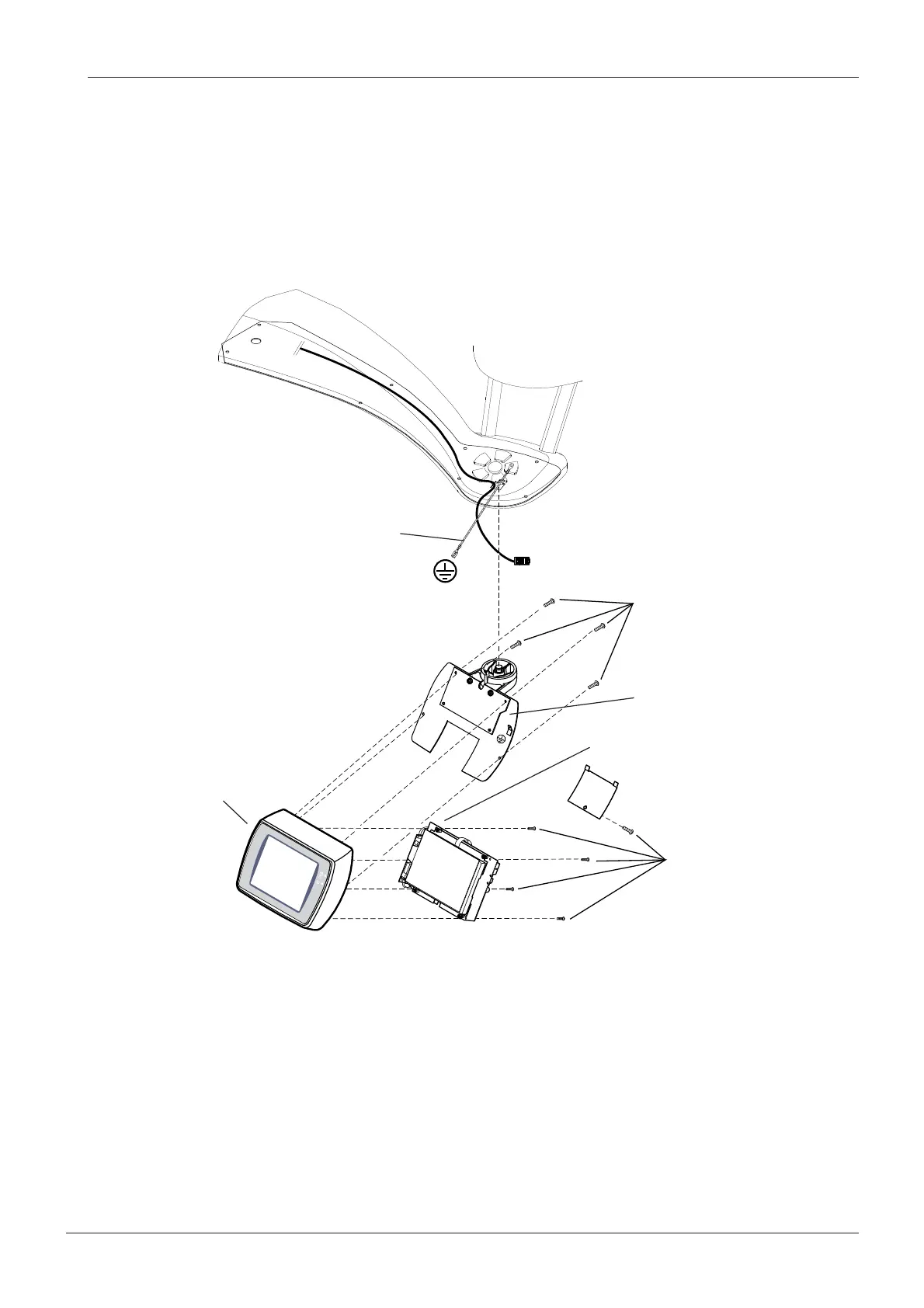

Figure 16
PT 3x12 rst WN1451 torx
Cover
PT 3x12 rst WN1451 torx
J3
Interface_TFT.eps
User interface assembly
Interface box
Support plate
Grounding cable
