Chapter B - INFORMATION DISPLAYS
Planmeca ProMax B-39
TROUBLESHOOTING
Technical Manual
7 TROUBLESHOOTING

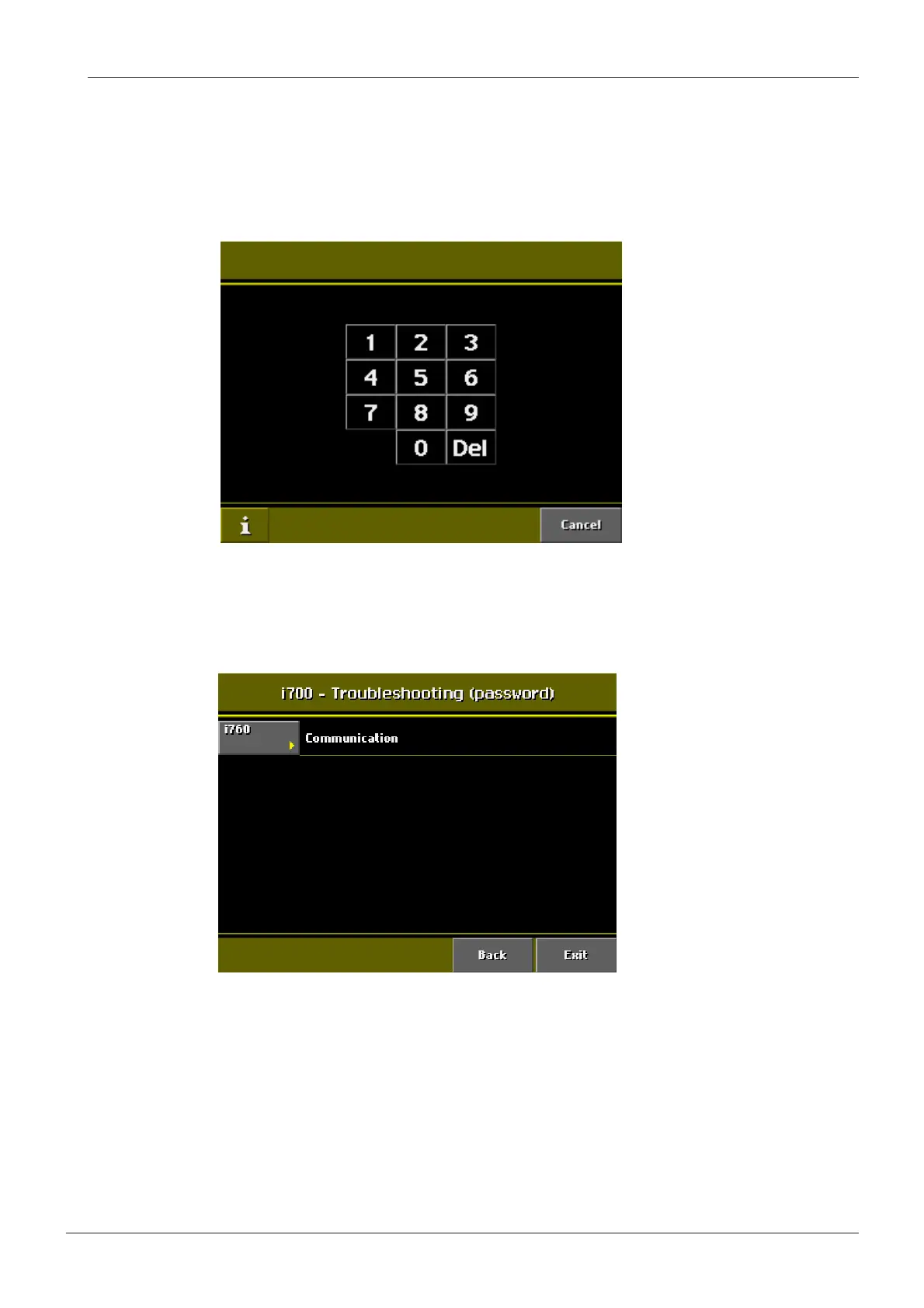

From the list of information displays select Troubleshooting (i570). The troubleshooting
mode is password protected and the password is asked when the mode is entered for the first
time after switching the unit on. The password is 1701.
Figure 59
In this mode the communication between the PC and X-ray unit can be monitored. Select
i760 Communication.
Figure 60
