Chapter B - INFORMATION DISPLAYS
Planmeca ProMax B-17
SPECIAL FUNCTIONS
Technical Manual
4.3 Exposure statistics

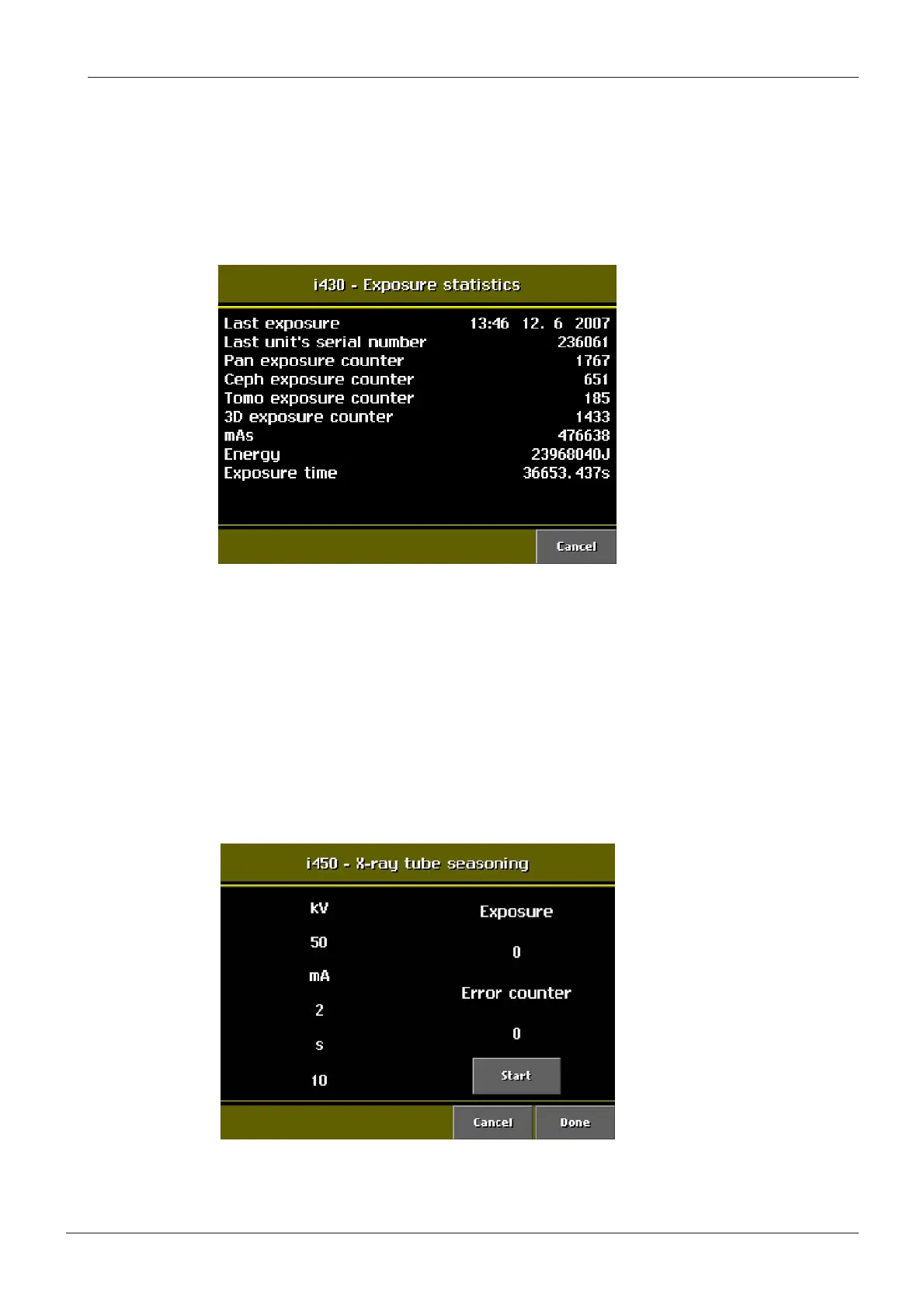

Select Exposure statistics (i430) on the Special functions display. The display shown below
appears. In this mode it is possible to check the unit tube head’s exposure statistics. The
diplays shows the time and the date of the latest exposure, the serial number of the latest unit
and the exposure counters of the panoramic, cephalometric, tomographic and 3D exposures.
The total amount of mAs, energy and exposure time are also shown.
Figure 22
NOTE The parameters can be cleared on the Configuration selftest (i560) display by touching
the Clear exposure history button.
4.4 X-ray tube head seasoning
Tube head seasoning procedure is recommended if the Planmeca ProMax x-ray unit stands
unused for a couple of days or longer.
The x-ray tube head seasoning is done in the X-ray tube seasoning (i450) display by press-
ing the start button.
Figure 23
