Planmeca ProMax Technical Manual

Chapter B - INFORMATION DISPLAYS
Planmeca ProMax B-41
TROUBLESHOOTING
Technical Manual
7.2 Network status
On the Network Mode field the configuration mode is displayed: 100/10 Mb / Full-duplex or
Half-duplex. If the text Disconnected is shown, the problem may be in one of the following:
cable between the ProMax X-ray unit and PC / cable or one of connectors is damaged /
wrong type cable / Ethernet PCB is defective.
The Frames Received field shows the amount of frames received from the Network. If the
value increases gradually, the X-ray unit’s connection to the Network is operational.
The Frames Sent field shows the amount of frames sent by the X-ray unit.

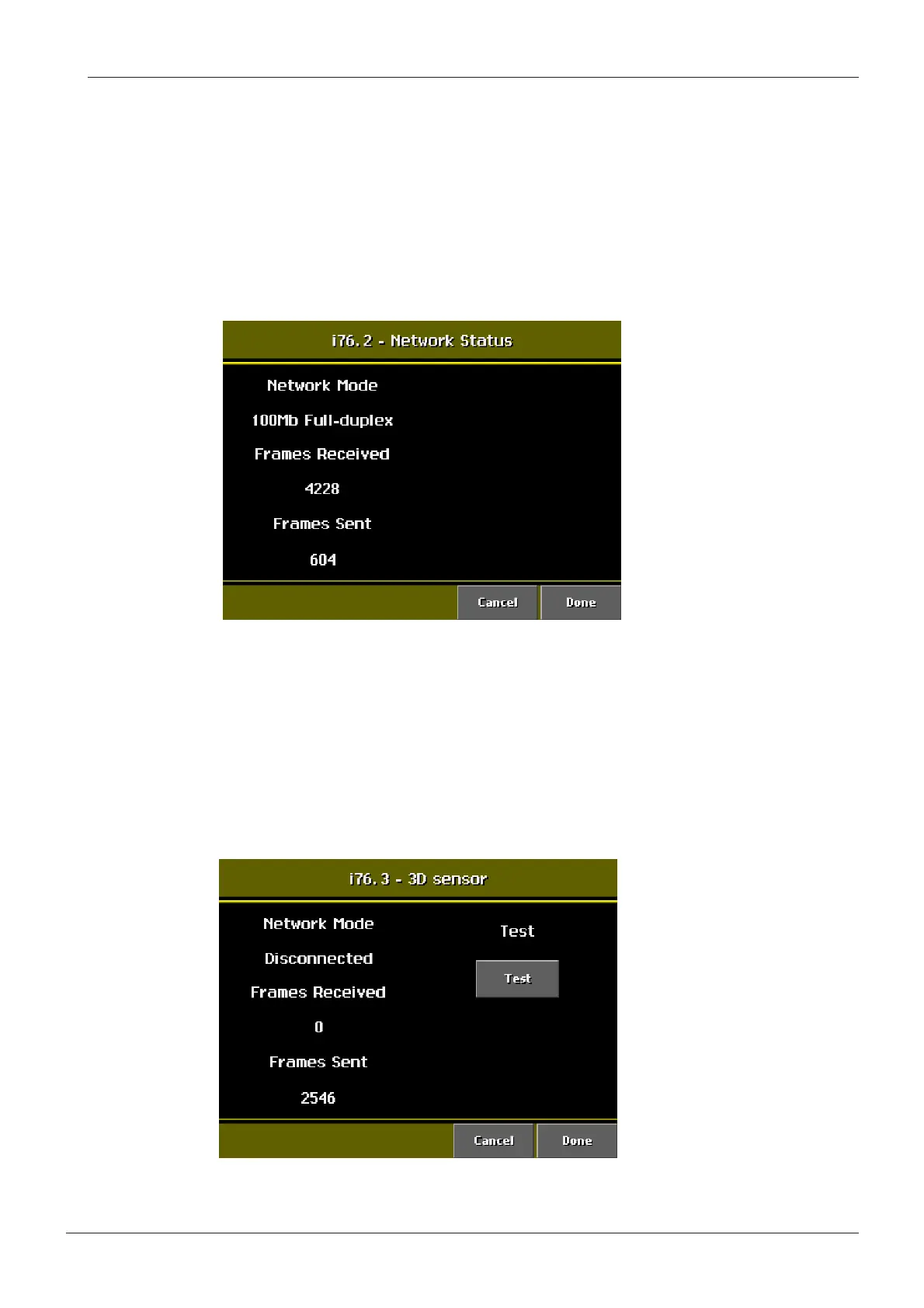

Figure 63
7.3 3D sensor communication
On the 3D sensor (i76.3) display the communication between CPU PCB and 3D sensor head
can be checked. Make sure that the sensor head is attached to the holder.
Start the 3D exposure in Romexis program. Enter the i76.3 display and touch the Test field
and check that the red light on the sensor head is ON. Check that the values on the Frames
Received and Frames sent fields increase gradually.
Figure 64
