Planmeca ProMax Technical Manual

Planmeca ProMax E-1
Chapter
Technical Manual
E C-ARM AND IMAGING ARM
NOTE If you use the Planmeca Device Tool software for calibrations, refer to the Planmeca
Device Tool manual, publication number 10031558, which should be used in
conjunction with this manual. Do not follow the Dimax4Tool instructions given in this
chapter.
1 REQUIRED TOOLS
• ProMax alignment tool (part number 10004225). For checking the position of the patient
positioning mechanism.

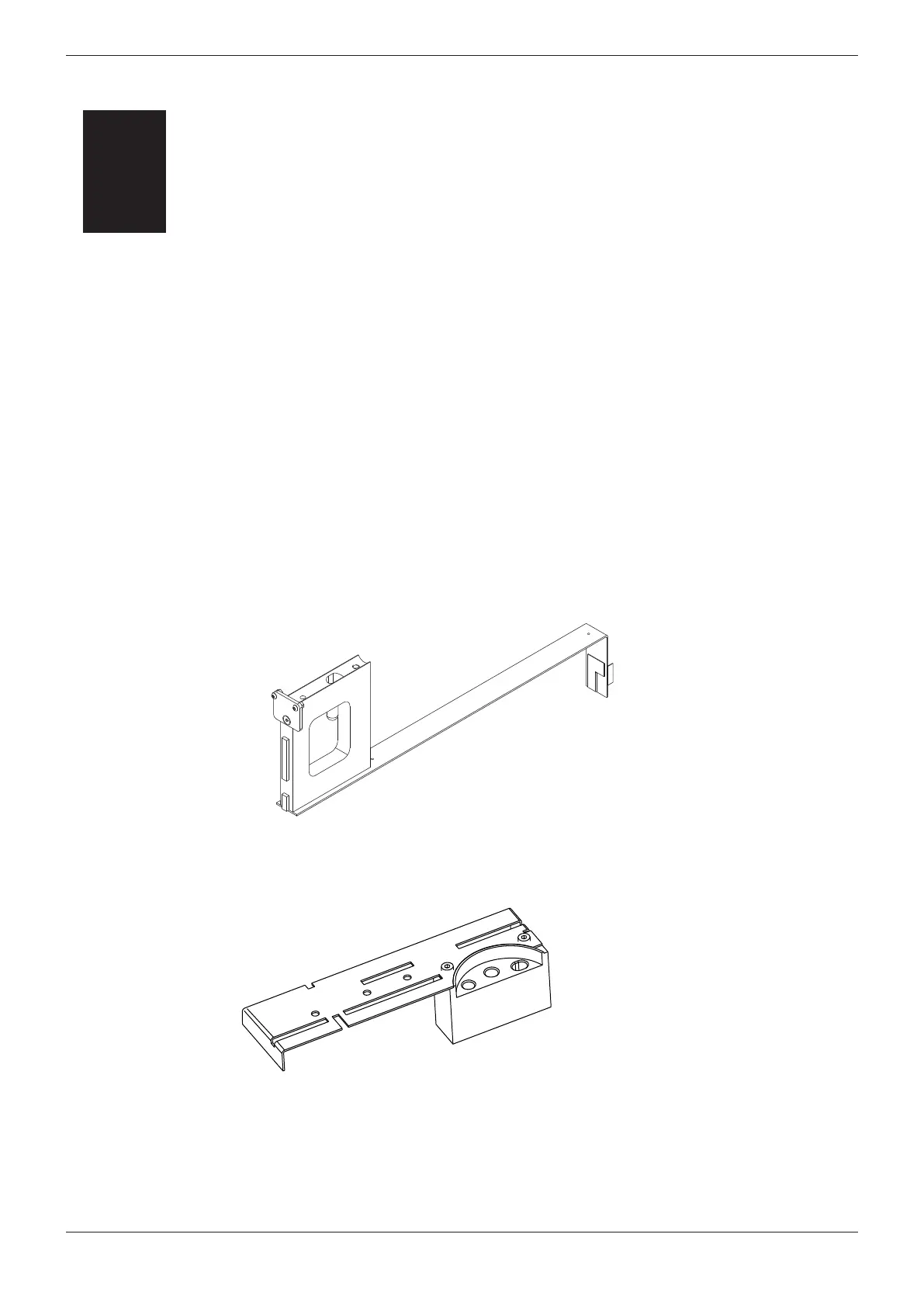

Figure 1
• Sensor head alignment tool (Dimax4: part number 10029167, Dimax2/3: part number
10002699).For attaching the beam alignment tool.
Figure 2
alignm_ruler1.eps
ProMax alignment tool
calibtool.eps

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
