Planmeca ProMax Technical Manual

Chapter B - INFORMATION DISPLAYS
Planmeca ProMax B-5
USER PREFERENCE SETTINGS
Technical Manual

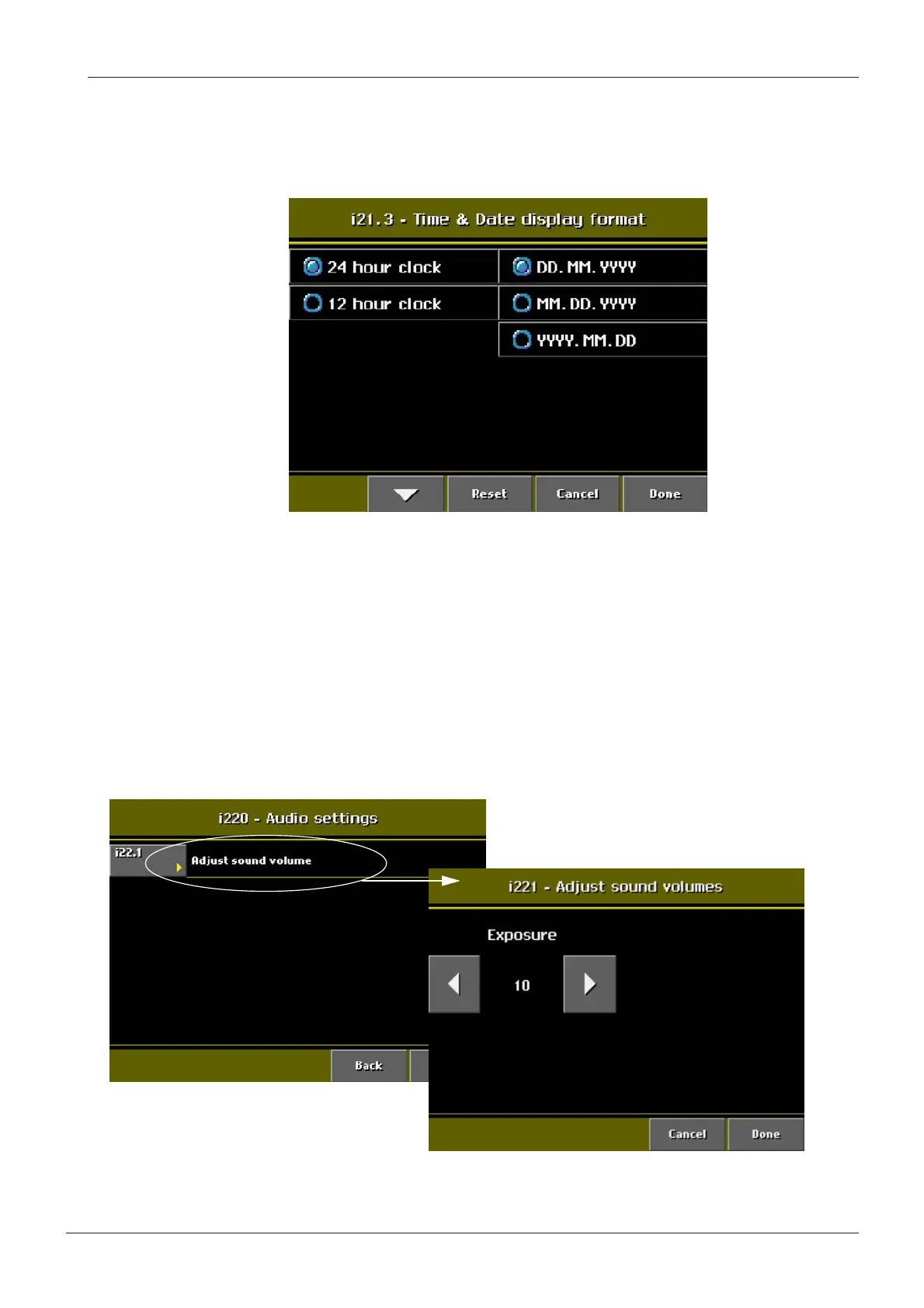

You can choose either the 12-hour or the 24-hour system. There are three possibilities to
choose from for the date display format. Touch the desired formats and confirm your selection
by touching Done.
Figure 6
2.2 Audio settings
From the list of User preference settings select Audio settings (i220). To adjust sound
volumes touch the Adjust sound volume field.
The display shown below appears. When an X-ray exposure is taken you will hear a warning
tone indicating that radiation is being generated. If the warning sound of the radiation cannot
be heard or is considered too loud, it can be adjusted with the arrow fields. The adjustment
range is 1-255.
Figure 7

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
