Planmeca ProMax Technical Manual

Chapter B - INFORMATION DISPLAYS
B-36 Planmeca ProMax
TECHNICAL CALIBRATIONS
Technical Manual
6.1 Collimator speed adjustment

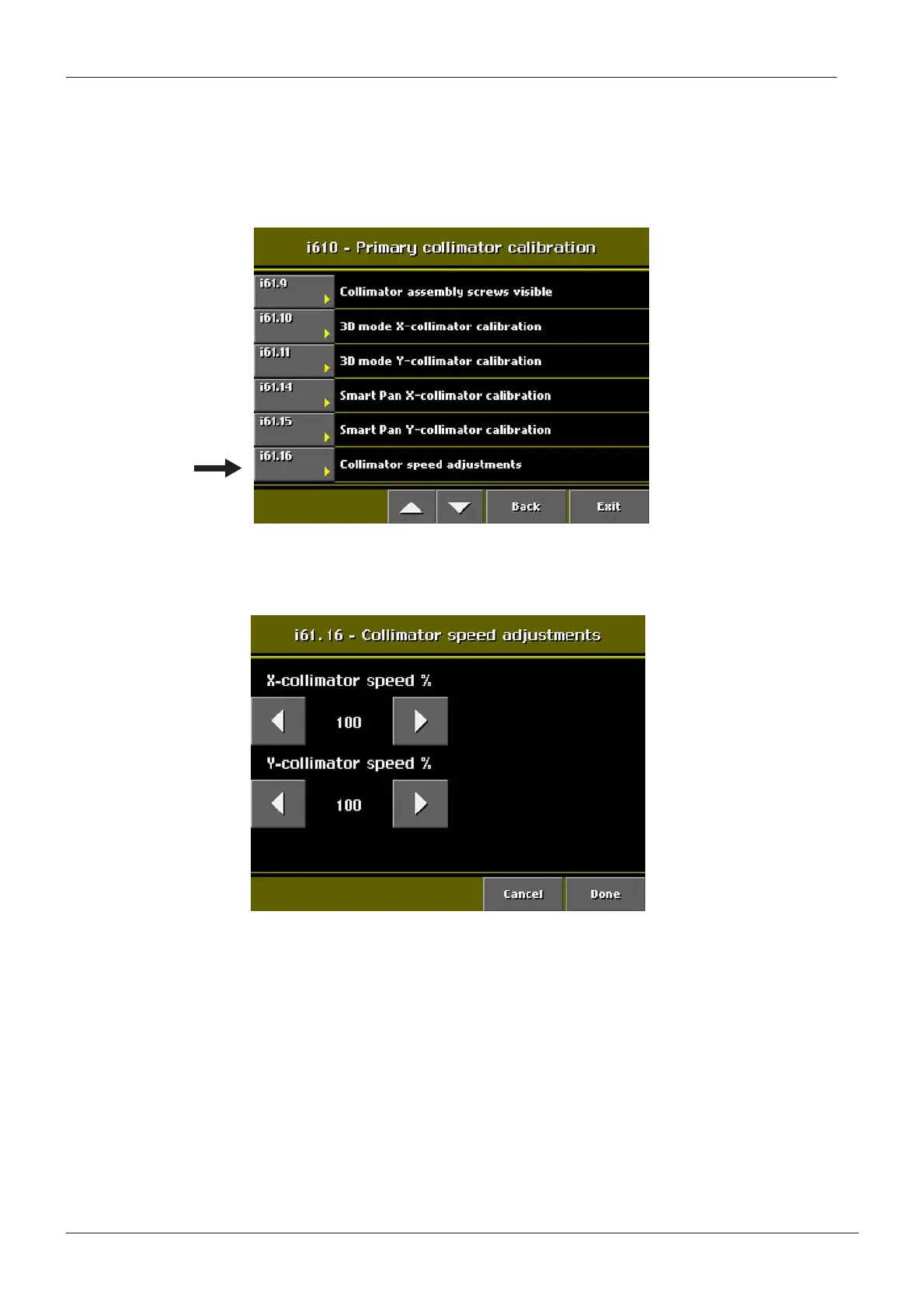

From the list on the i600 display that appears select Primary collimator calibration (i610).
Select Collimator speed adjustments (i61.16)
Figure 55
The collimator speed can be adjusted on the this display.
Figure 56
Changing the speed affects to the sound of the collimator movement. You can try to decrease
the sound by changing the collimator speed gradually in either direction. The max values x:
105%, y: 115%, equals the same speed as with the previous software version. The factory
defaults are 100% with both x and y values.

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
