Planmeca ProMax Technical Manual

Chapter H - CEPHALOSTAT
H-6 Planmeca ProMax
ADJUSTMENTS AND CALIBRATIONS
Technical manual
1.4 Adjusting the sensor and second primary collimator rails
The rails of both sensor head and second primary collimator must run parallel with the head
support frame. Check the position of the rail using the spirit level. To adjust the rail loosen the
attachment screws on the side of rail (Fig. 10, 1).
Adjust the rail position with the adjustment screw (Fig. 10,2) and tighten the attachment
screws. Recheck the rail position.

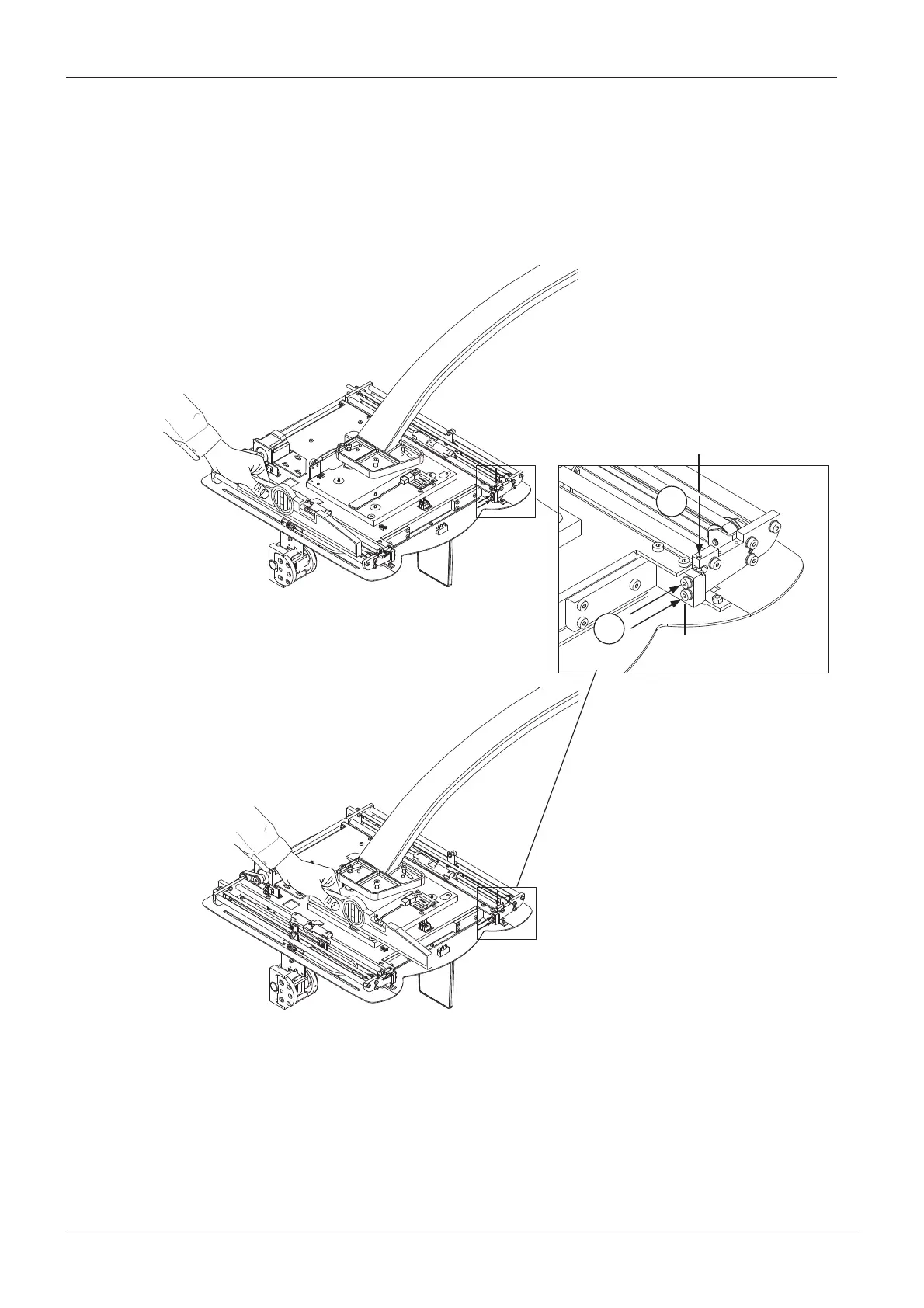

Figure 10
PXR_Adj_digiceph3.eps
PXR_Adj_digiceph3_1.eps
Adjustment screw
Attachment screws
1
2

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
