Chapter E - C-ARM AND IMAGING ARM
Planmeca ProMax E-77
REMOVING THE COVERS
Technical Manual
5 REMOVING THE COVERS
NOTE Switch the unit off before removing the covers.
5.1 C-arm upper covers

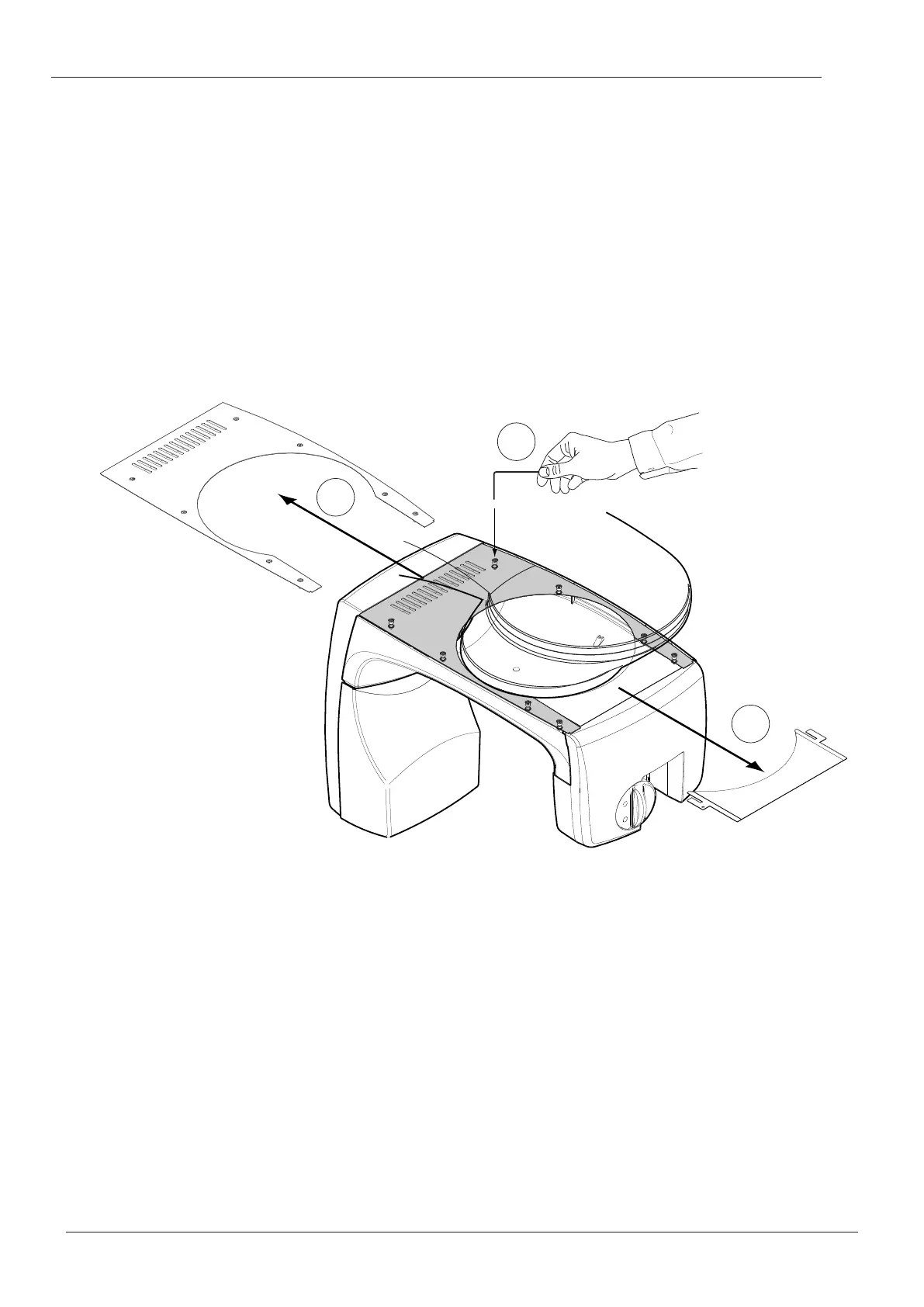

Loosen the eight attachment screws with the 2.5mm Allen key (Fig. 101, 1). Do not remove
the screws. Slide the tube head cover plate (Fig. 101, 2) and the receptor cover plate (Fig.
101, 3) from their positions as shown below.
Figure 101
Digi_C_arm_covers1.eps
1
8x
3
2
