Chapter B - INFORMATION DISPLAYS
B-40 Planmeca ProMax
TROUBLESHOOTING
Technical Manual

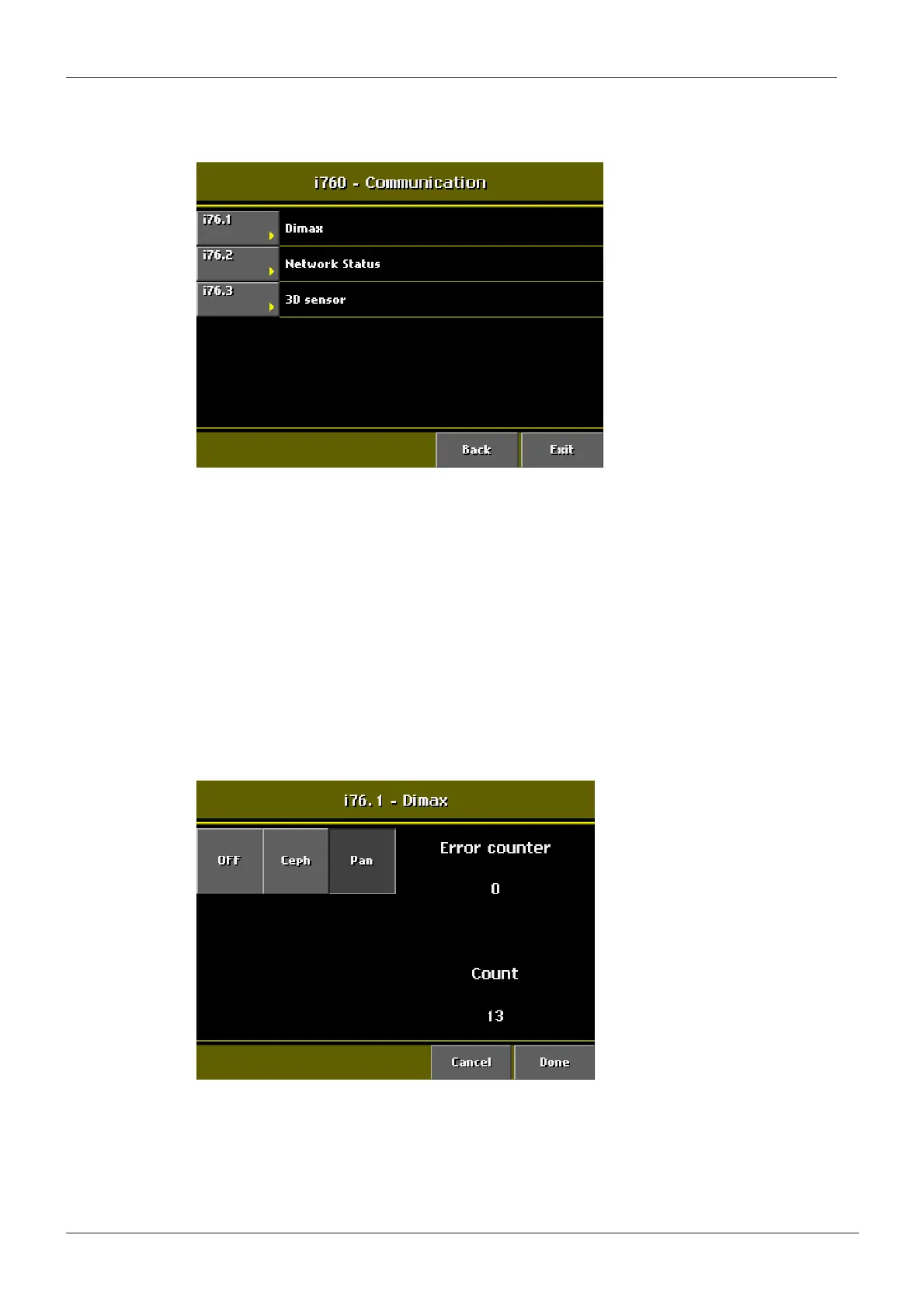

The display shown below appears. Note that if the X-ray unit is equipped with DIN PCB,
only the i76.1 Dimax communication is available.
Figure 61
7.1 Dimax communication
On the Dimax (i76.1) display the communication between CPU PCB and panoramic/cephalo-
metric sensor head can be checked. Make sure that the sensor head is attached to the holder
before selecting the sensor head (pan or ceph) and that the red light on the sensor head is
ON.
The number on the Count field should gradually increase after the pan or ceph field is
touched. The test can be interrupted by touching the OFF field.
If the Error counter number is larger than two, a cable between the sensor head and CPU
PCB may be damaged or disconnected.
Figure 62
