Chapter H - CEPHALOSTAT
Planmeca ProMax H-17
ADJUSTMENTS AND CALIBRATIONS
Technical manual
Adjusting the ear posts in vertical direction
Make sure that the locking screw of the adjustment flange (Fig. 28, 1) is loosened. To adjust
the ear posts in vertical direction rotate the head support around its horizontal axis (Fig. 28, 4)
with the two screws on the adjustment flange (Fig. 28, 2 and 3).

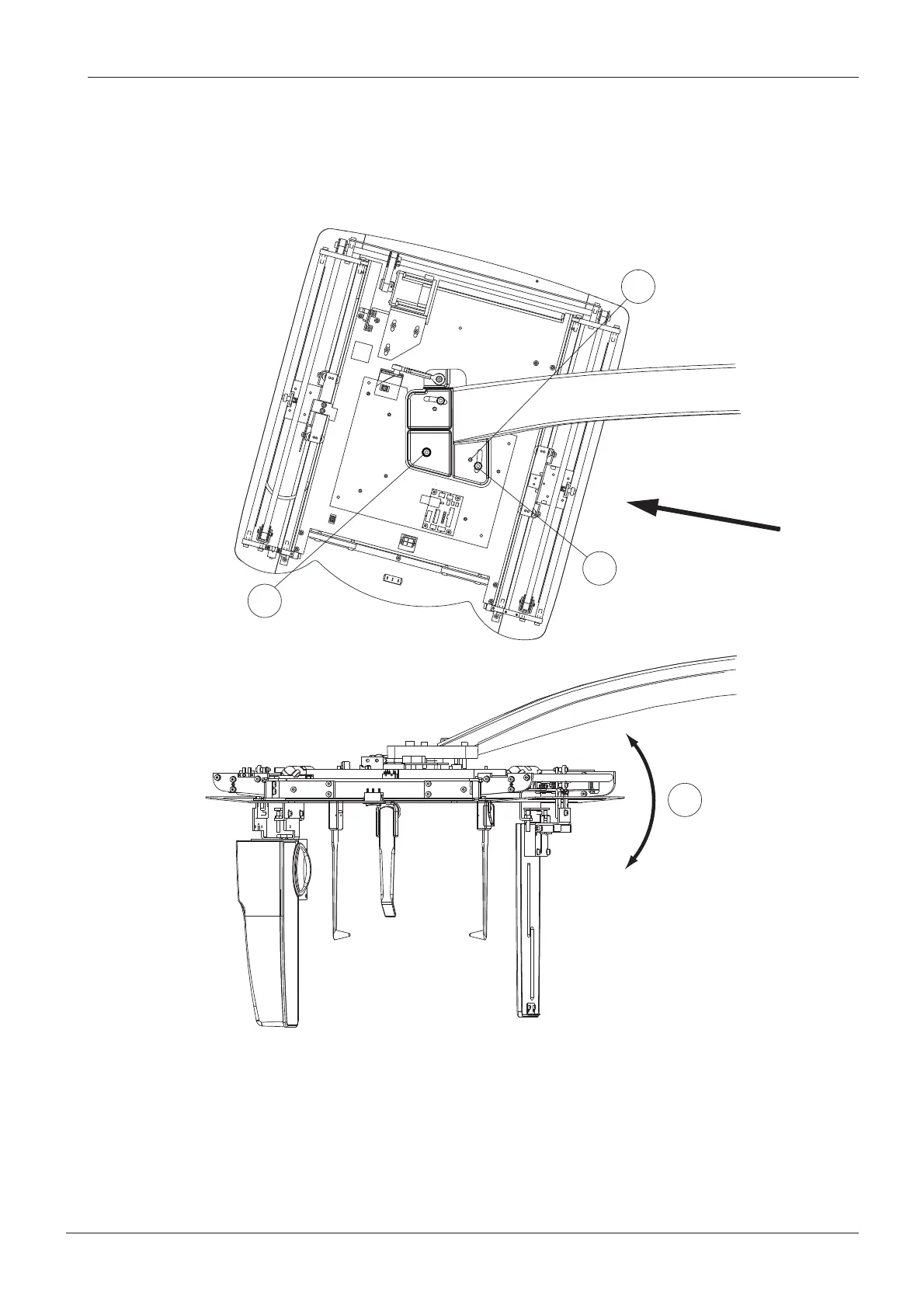

Figure 28 Adjusting the ear posts in vertical direction
PXR_Adj_digiceph26.eps
1
4
2
3
Radiation beam
