Chapter E - C-ARM AND IMAGING ARM
E-20 Planmeca ProMax
PANORAMIC BEAM AND PATIENT POSITIONING MECHANISM
ADJUSTMENT
Technical Manual
Leave the ball phantom tool in position. Place the alignment tool in position between the multi
primary collimator and the sensor head alignment tool as described below.

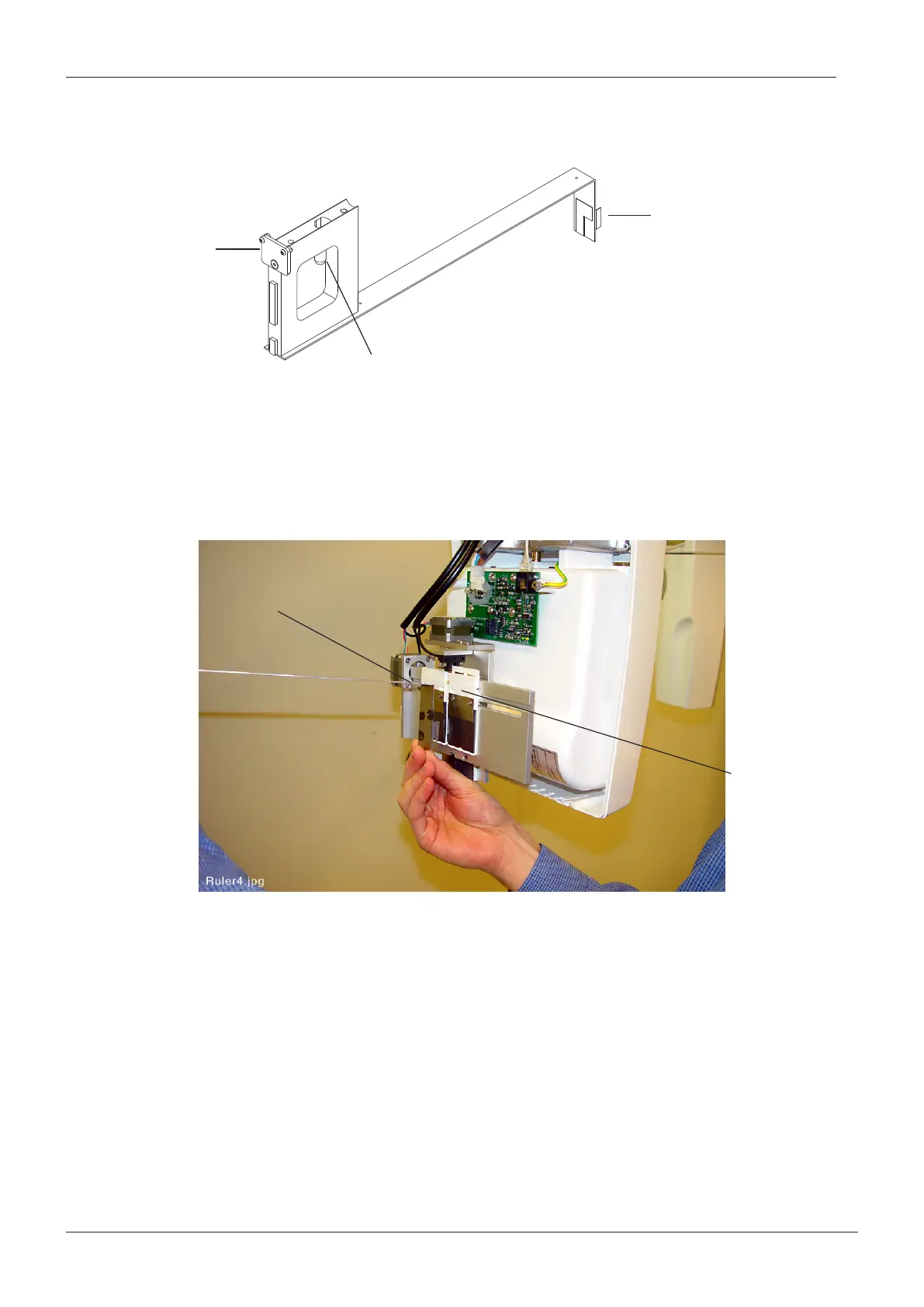

Figure 27
NOTE Units with fixed primary collimator: Place the alignment tool in position between the
tube head and the sensor head alignment tool so that the alignment tool tongue goes
into the primary collimator opening.
Slide the right side blade of the horizontal blade mechanism to the right and position the align-
ment tool tongue into the opening.
Figure 28
alignm_ruler1.eps
ProMax alignment tool
Tongue
Trigger bar
Attachment plate
Alignment tool
Slide the blade
