Planmeca ProMax Technical Manual

Chapter E - C-ARM AND IMAGING ARM
Planmeca ProMax E-53
PANORAMIC BEAM AND PATIENT POSITIONING
MECHANISM ADJUSTMENT
Technical Manual
2.11.1 Positioning light adjustment

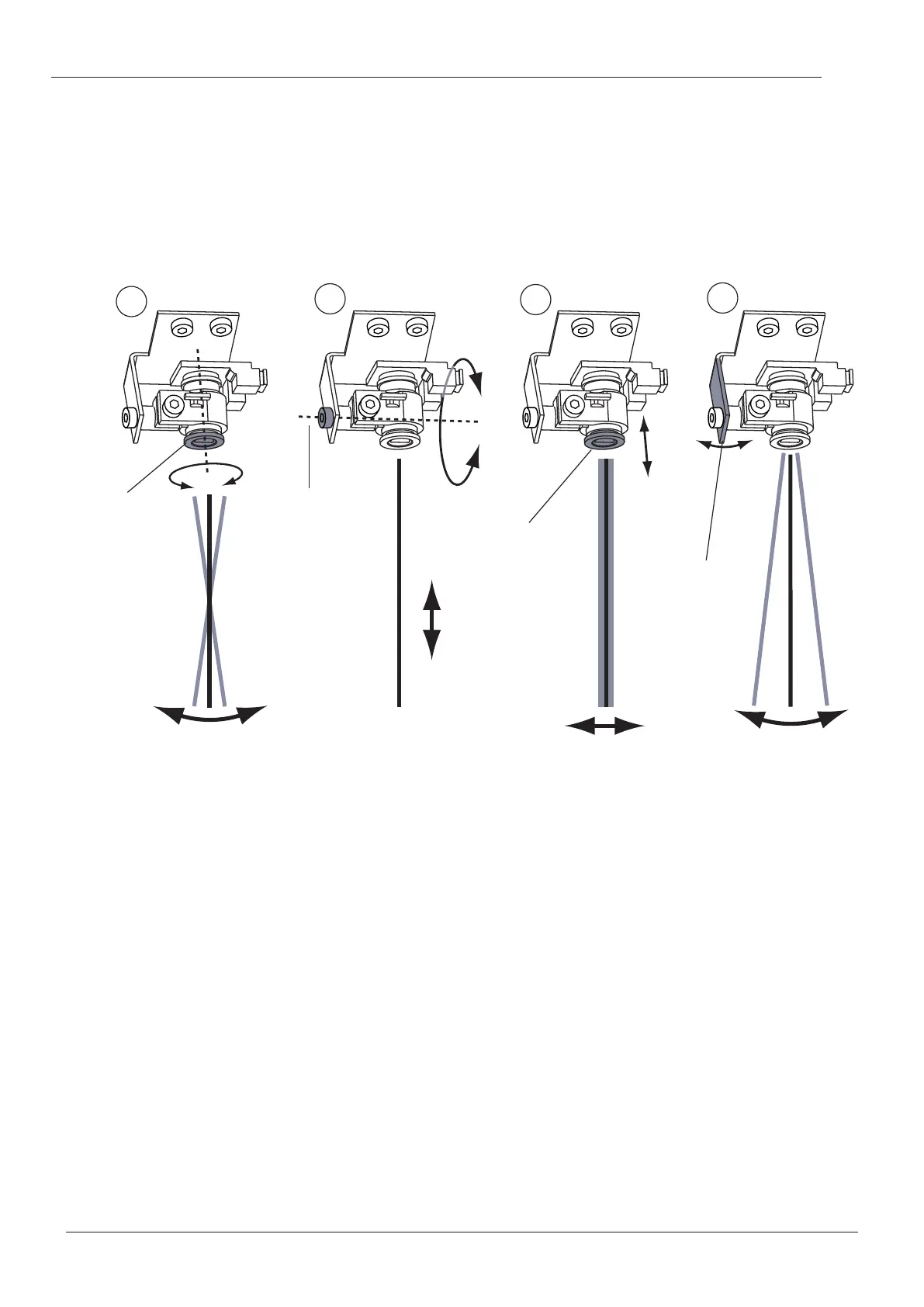

To adjust the light beam angle rotate the lens assembly of the light (Fig. 71, 1)
To adjust the light beam vertical position loosen the attachment screw of the laser light
assembly and rotate the assembly (Fig. 71, 2).
To focus the light beam adjust the depth of the lens assembly (Fig. 71, 3).
To adjust the light beam horizontal position bend the light attachment plate (Fig. 71, 4).l
Figure 71
Adjust_laser.eps
1
2
3
Lens
Lens assembly
Light assembly
attachment screw
assembly
4
Light attachment
plate

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
