Planmeca ProMax Technical Manual

Chapter E - C-ARM AND IMAGING ARM
E-70 Planmeca ProMax
OTHER ADJUSTMENTS AND CALIBRATIONS
Technical Manual
C-arm gear ratio
From the list on the i640 display that appears select C-arm ratio calibration (i64.3).
Change the ratio value by touching the Default field. The Default 1 (336.578) is for the old
traction belt and the Default 2 (335.646) is for the new traction belt.

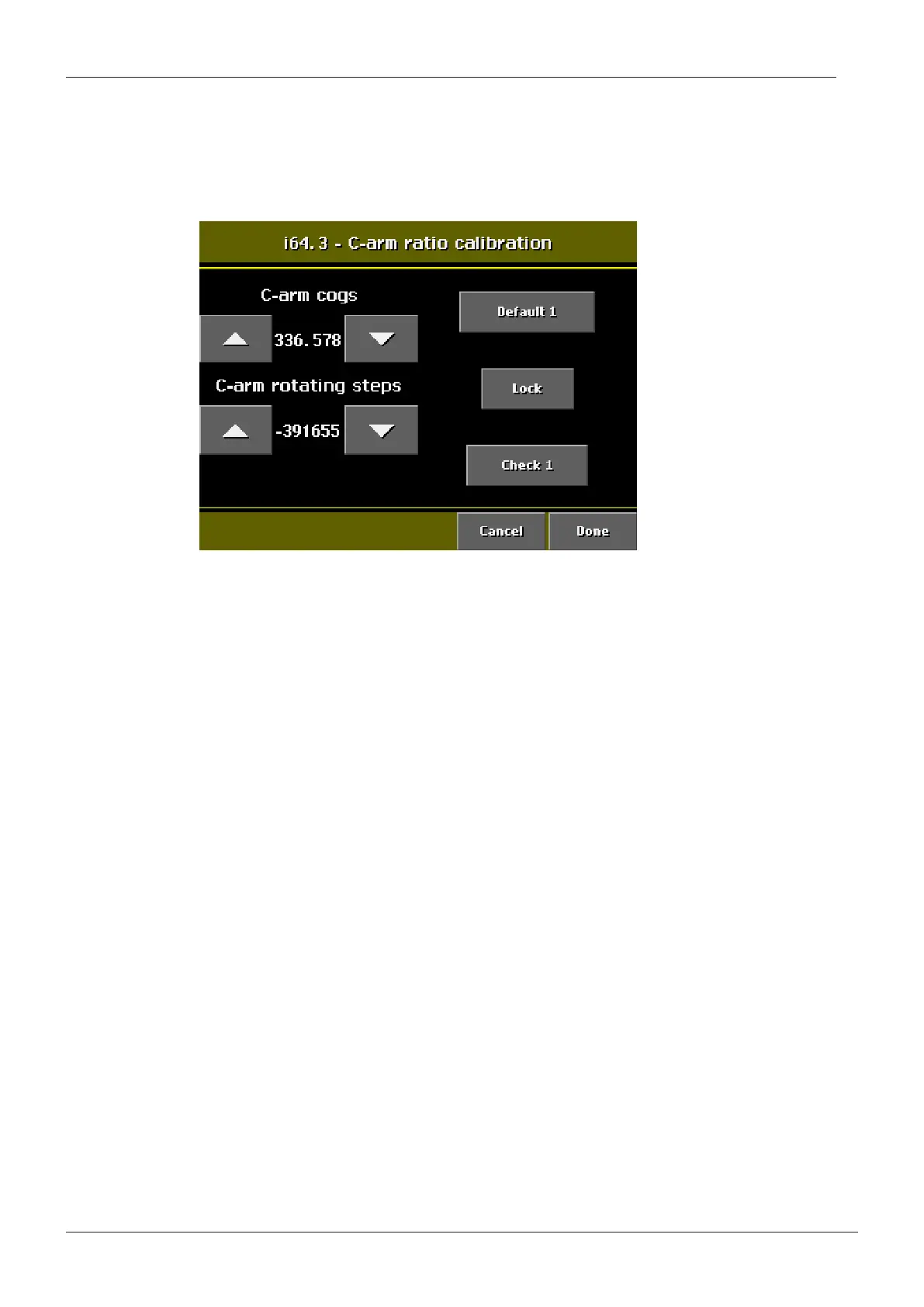

Figure 90
NOTE The X-ray unit must be switched off and on after changing the ratio value. After
switching the X-ray unit on again, the angle sensors must be calibrated.
CAUTION The C-arm rotating steps function as well as the respective fields (arrow
fields, Lock/release field and Check field) are for factory use only.
