Planmeca ProMax Technical Manual

Chapter A - GENERAL & TECHNICAL DATA
A-10 Planmeca ProMax
USER’S STATEMENT
Technical Manual
Reference axis to which the target angle and the focal spot
characteristics of the tube head assembly refer
Target angle with respect to the reference axis
5°
Dimensions of the tube head assembly
(WxHxD) 235mm x 340mm x 120mm
Weight of the tube head assembly
10.3 kg without collimator assembly
11.2 kg with collimator assembly
Values of loading factors concerning leakage radiation
84 kV, 16 mA
Tolerances of the focal spot on the reference axis
X= ±0.5mm (sideways)
Y= ±0.5mm (in depth)
Z= ±0.5mm (in height)
86.5º
7º

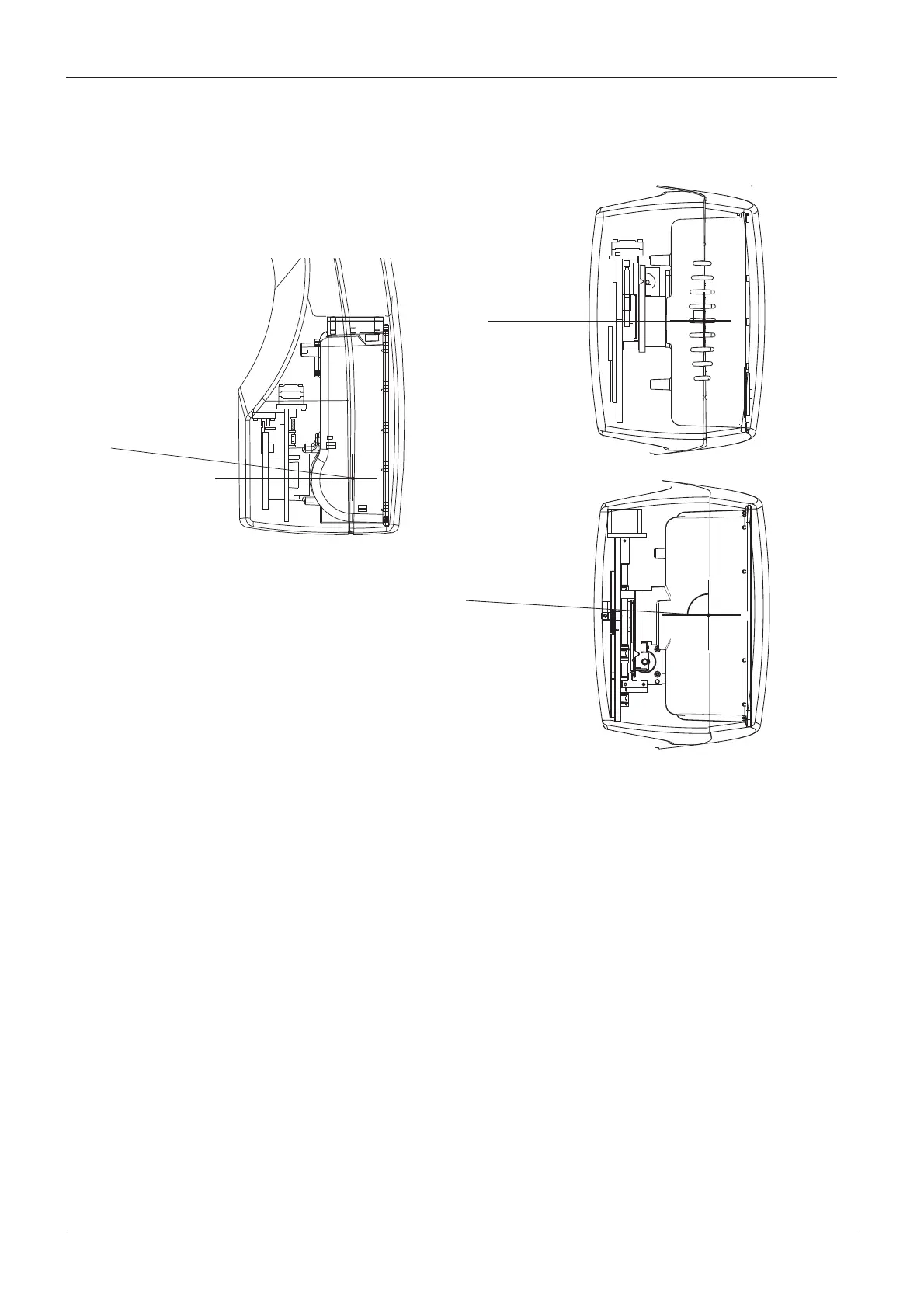

focal_spot1.eps
90º
focal_spot2.e
ps
3D/3D s/pan/ceph
Pan/ceph

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
