Planmeca ProMax Technical Manual

Chapter E - C-ARM AND IMAGING ARM
E-94 Planmeca ProMax
PROMAX 3D: REPLACING THE SENSOR HEAD
Technical Manual
Carefully pull the sensor head out from its position.

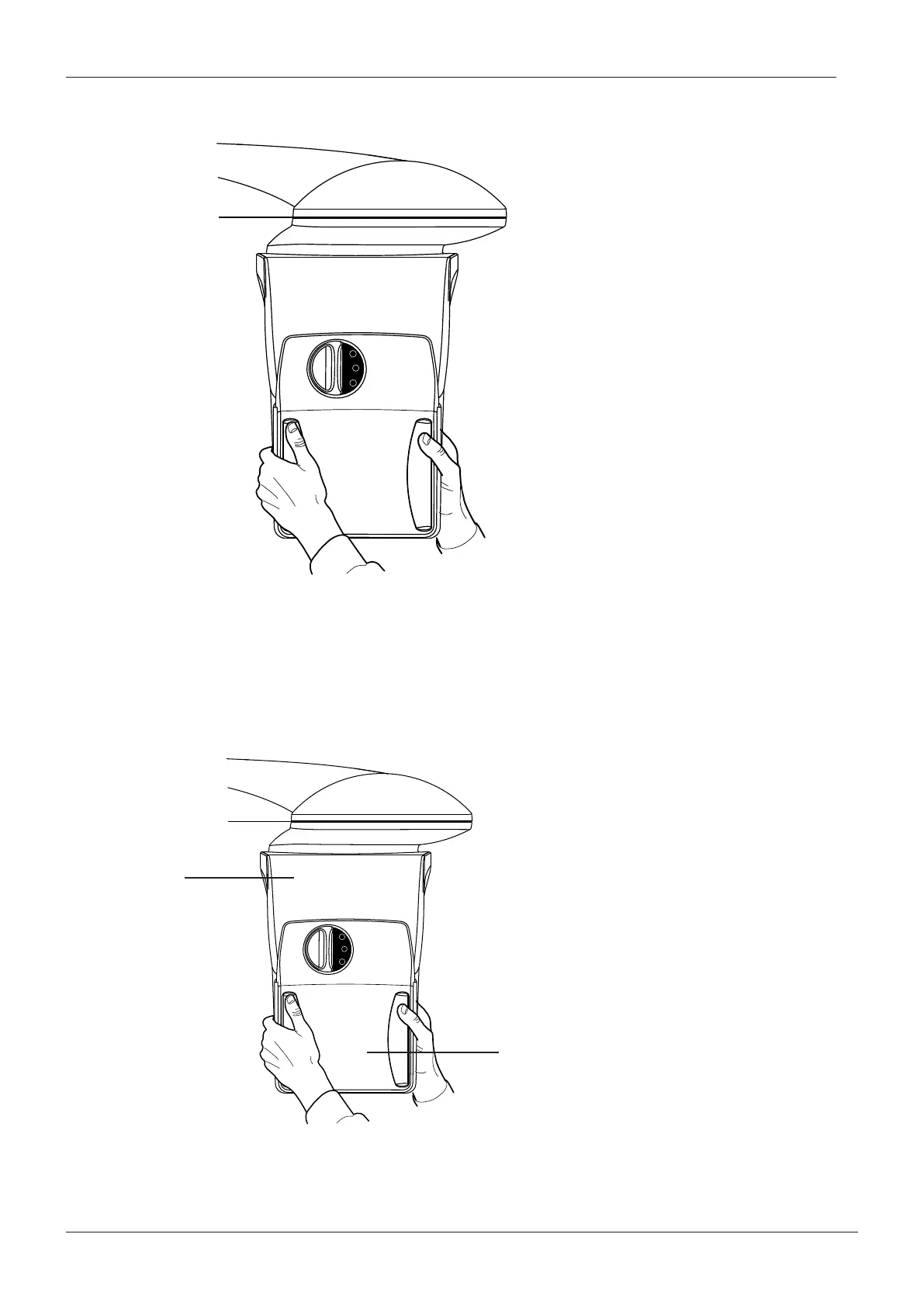

Figure 127
Attaching the sensor head to the C-arm
NOTE Select the sensor you are using on display i57.2 (Service settings > Select configuration
> Select 3D sensor type). See section 5.7.3 “Select 3D sensor type” on page B-33 for
details.
Push the sensor head onto the connector on the C-arm.
Figure 128
CBCT_s3.eps
CBCT_s3.eps
C-arm
3D / 3D s sensor head
