Chapter B - INFORMATION DISPLAYS
B-12 Planmeca ProMax
USER PREFERENCE SETTINGS
Technical Manual
2.6.3 2D View settings
You can set the X-ray unit so that two 2D images (Scout, Lat-PA, Lat or PA) will be shown on
the computer screen before you take a 3D image. This will allow you to check the position of
the target area or, if necessary, confirm the need for a 3D exposure.

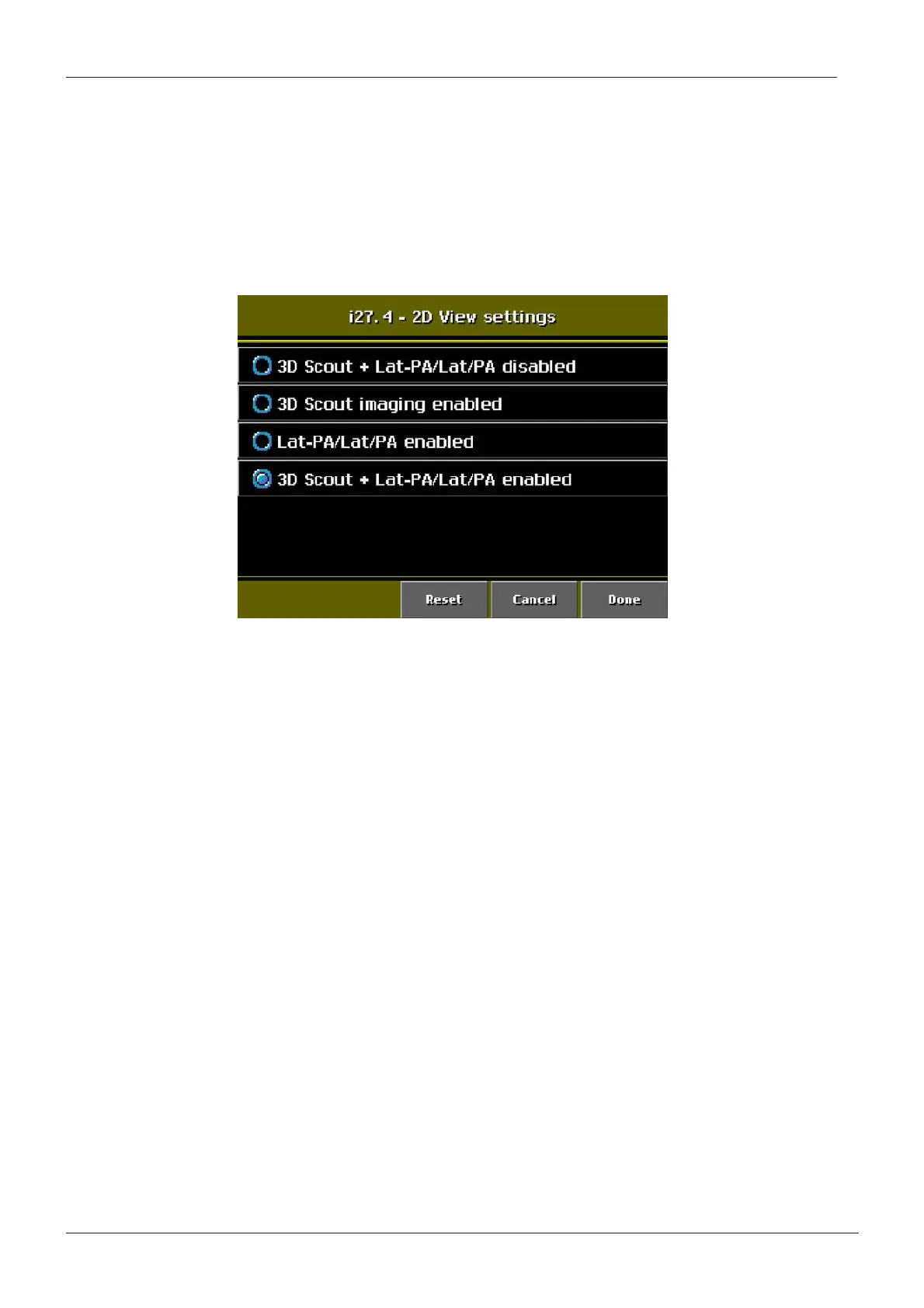

Touch the 2D View settings field to select the type of 2D views that will be available when tak-
ing 3D exposures.
The selected option will be marked with a blue dot. Confirm your selection by touching Done.
Figure 16
