3.38
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.
4. Repeat procedure for second ring.
5. Remove the oil control ring.

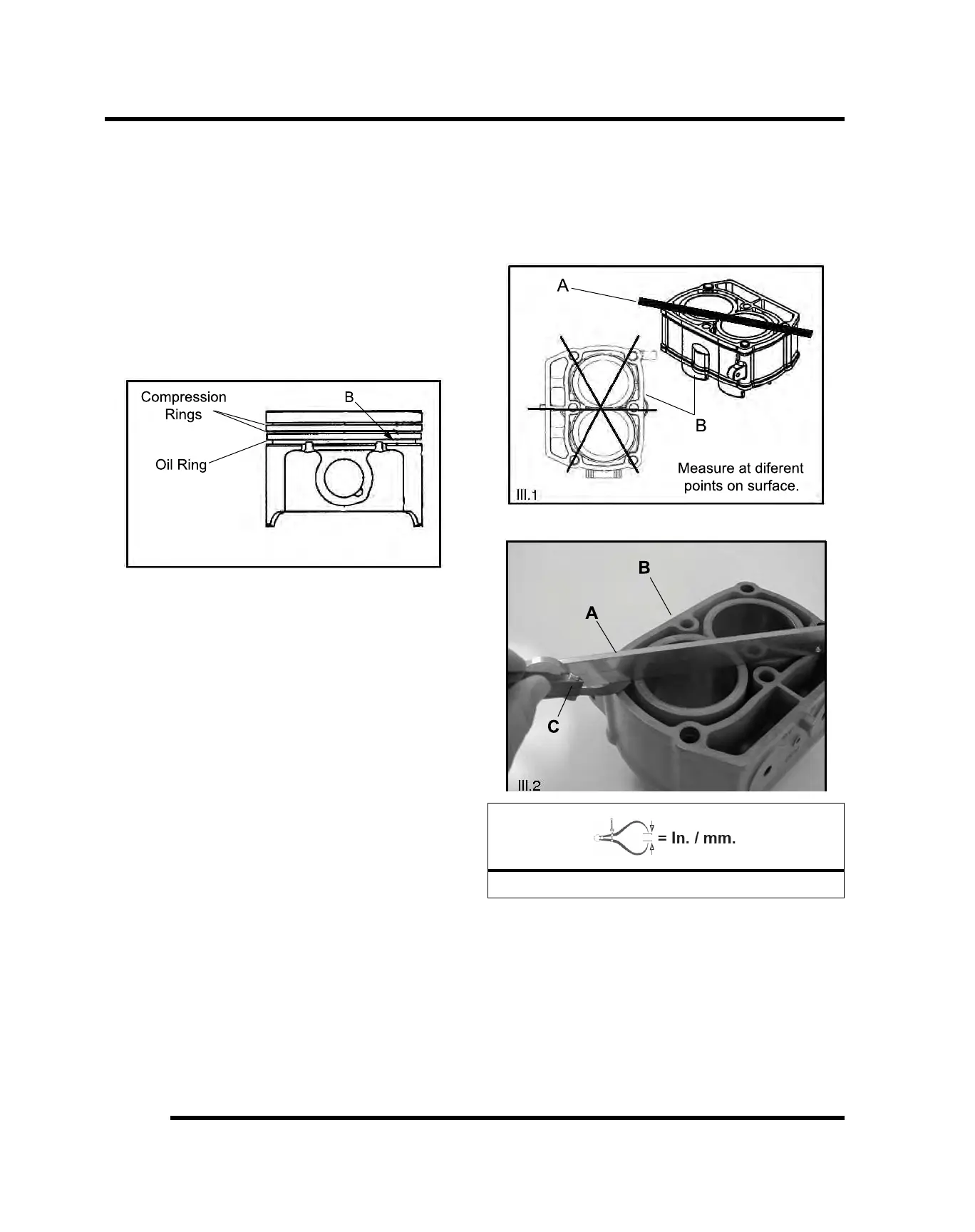

The oil control ring is a three piece design consisting
of a top and bottom steel rail and a center expander
section. The top rail has a locating tab on the end
which fits into a notch (B) in the upper oil ring land of
the piston.
To Remove:
A) Remove the top rail first followed by the bottom
rail.
B) Remove the expander.
Cylinder Inspection
1. Remove gasket material from cylinder sealing
surfaces.
2. Inspect top of the cylinder (B) for warp using a
straight edge (A) and feeler gauge (C). Refer to Ill. 1
and Ill. 2.
Cylinder Warp: 0.004" (0.1 mm) Max.
ENGINE
