9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.
PVT Disassembly
Some fasteners and procedures will vary. Refer to the
Electronic Parts Catalog for proper fastener placement.
1. Remove the driver’s seat (RZR / RZR S only).
2. Remove passenger seat(s) and rear service panel to
gain access to the outer clutch cover (see Chapter
5).
3. Remove the (2) screws from the rear of the center
console (RZR / RZR S only).

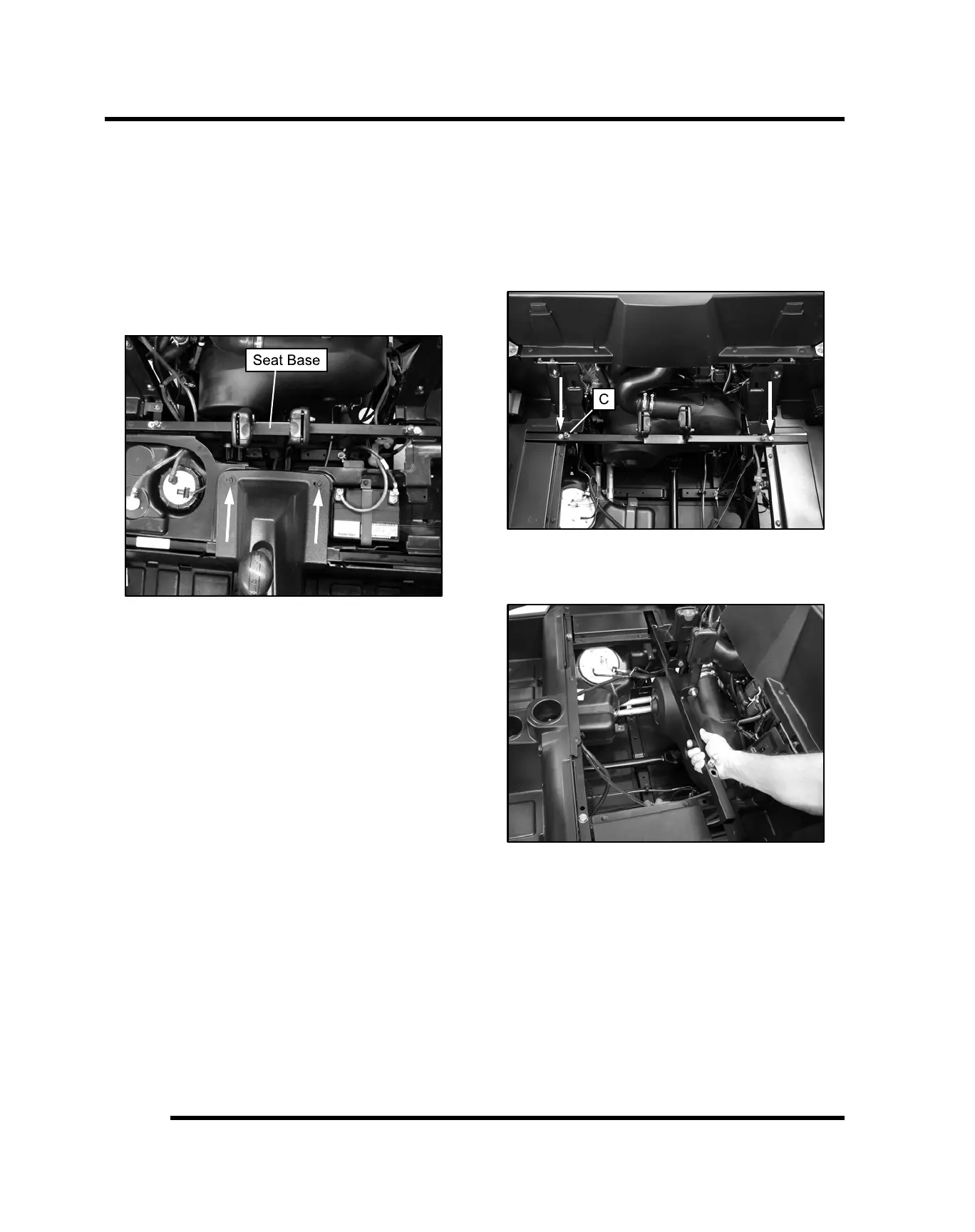

4. Remove the rear seat base assembly from the
vehicle to allow outer clutch cover removal:
• RZR / RZR S: Remove the (2) fasteners from the
rear seat base as shown and remove it from the
vehicle.
• RZR 4: Remove the (2) fasteners and seat latch
plunger (A).
• RZR 4: Slide rear seat base towards left side of
the vehicle to free it from the plastic and remove it.
5. Loosen the hose clamp on the clutch outlet duct.
6. Remove outer clutch cover screws and clutch cover.
CLUTCHING
