5
5.45
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

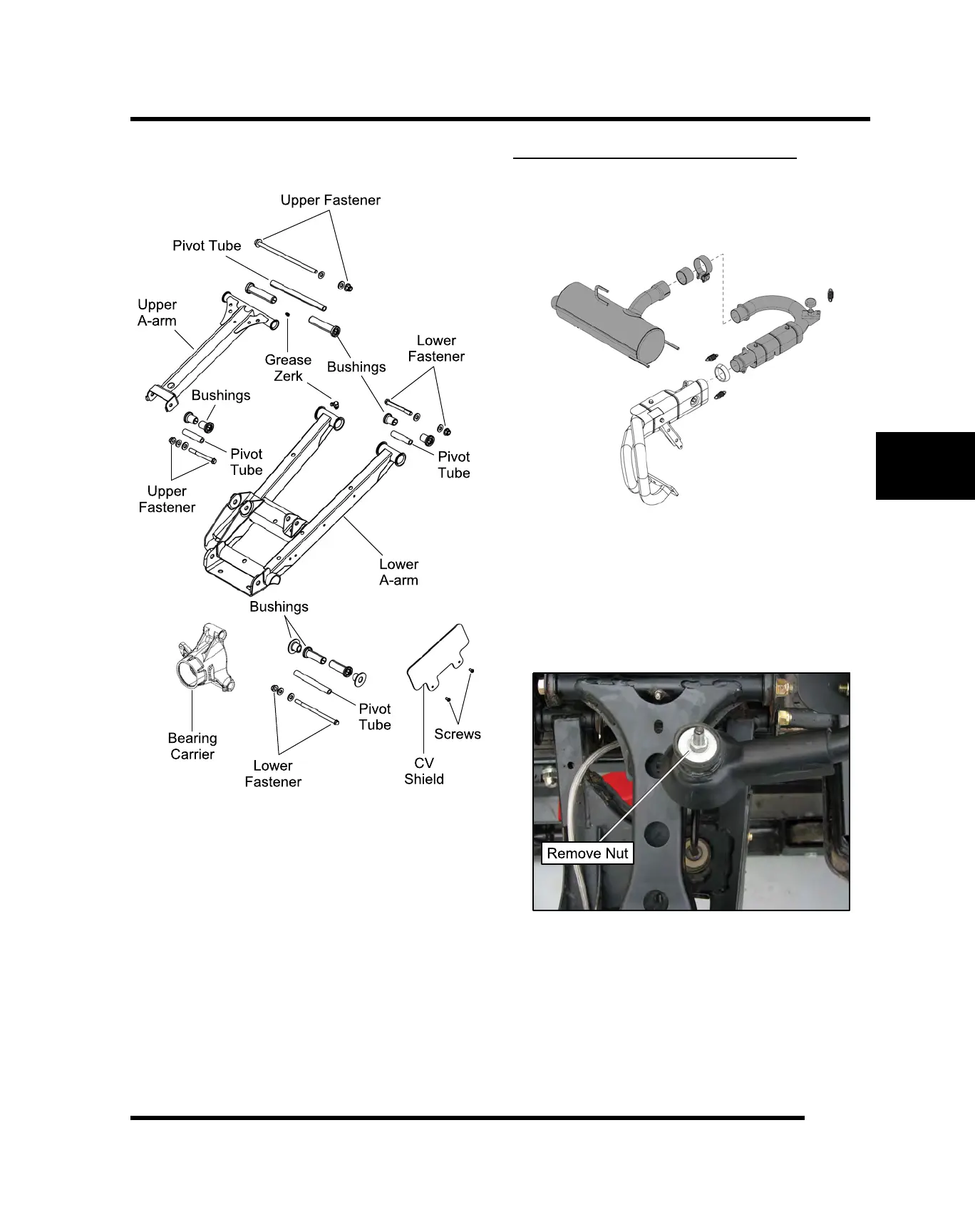

Exploded View (RZR S / RZR 4)
REAR STABILIZER BAR (RZR)
Removal / Installation
1. Remove the exhaust pipe and exhaust silencer from
the vehicle.
NOTE: The exhaust silencer can be removed
through the side of the vehicle after the exhaust
pipe is detached from the header pipe.
2. Remove the retaining nut from the upper portion of
the stabilizer bar linkage bushing on each side of the
vehicle.
3. Remove the (4) fasteners retaining the stabilizer bar
bracket to the frame.
BODY / STEERING / SUSPENSION
