5.22
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

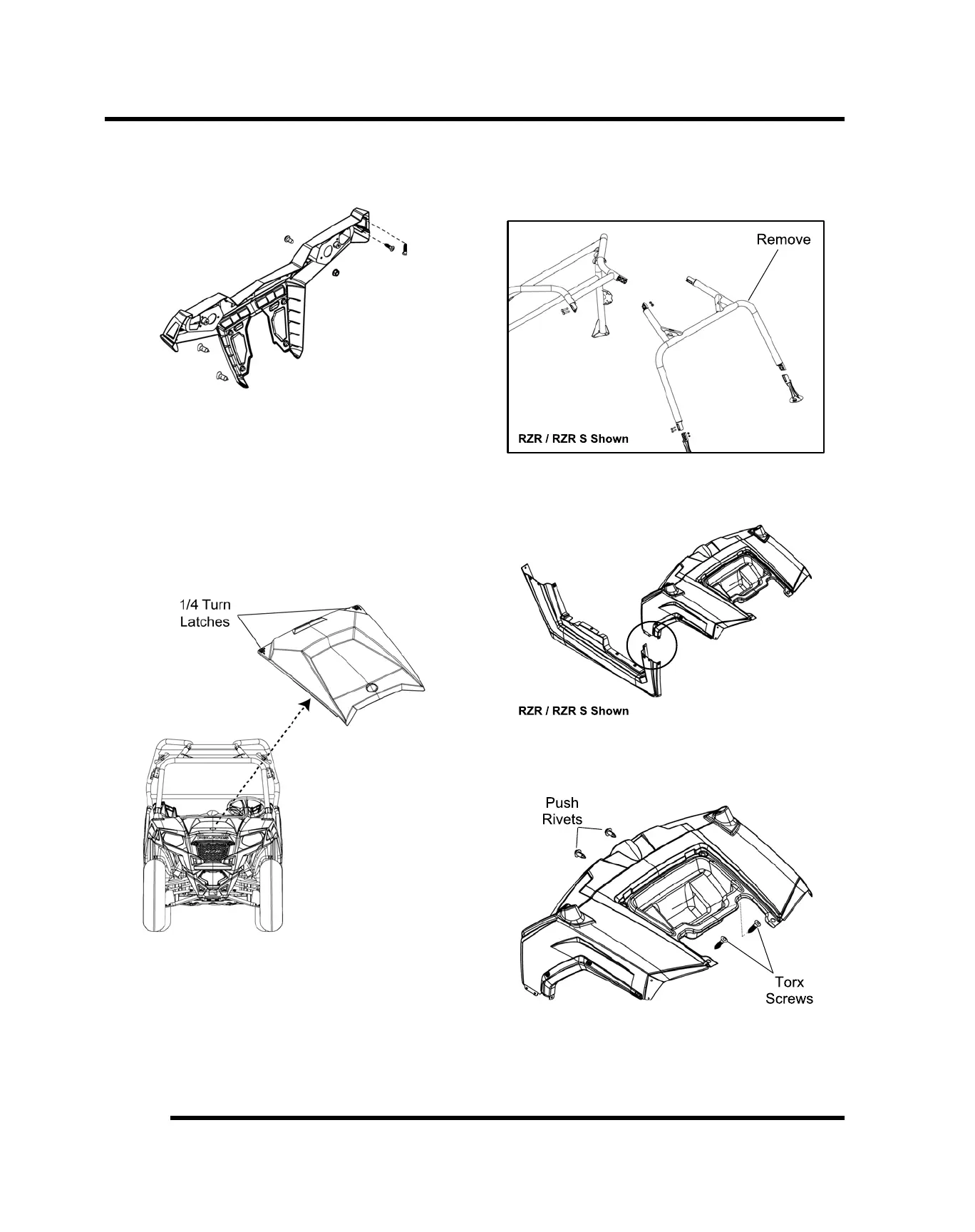

Rear Bumper
1. Remove the (4) Torx screws retaining the upper
portion of the rear bumper to the cargo box.
2. Remove the (4) Torx screws retaining the lower
portion of the rear bumper to the frame.
3. Remove the (2) fasteners retaining the middle
portion of the rear bumper to the cargo box.
Hood and Front Body Work
Hood Removal
1. To remove the hood, turn both latches to disengage
the rear portion of the hood.
2. Tilt the hood back to disengage the front tabs and
remove the hood from the vehicle.
Front Body / Dash Removal
1. Remove the hood as previously described.
2. Remove the front bumper (see “BODY COMPONENT
REMOVAL - Front Bumper”).
3. Remove the front portion of the cab frame assembly
to allow dash removal. Refer to appropriate “CAB
FRAME - Assembly / Removal” procedure for
assembly torque specifications.
4. Remove the push rivets that attach the dash
assembly to the rocker panels on each side.
5. Remove the (2) Torx screws and (2) push rivets that
retain the front and rear of the dash assembly.
6. Disconnect all electrical dash components noting
their location and wire routing.
BODY / STEERING / SUSPENSION
