9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

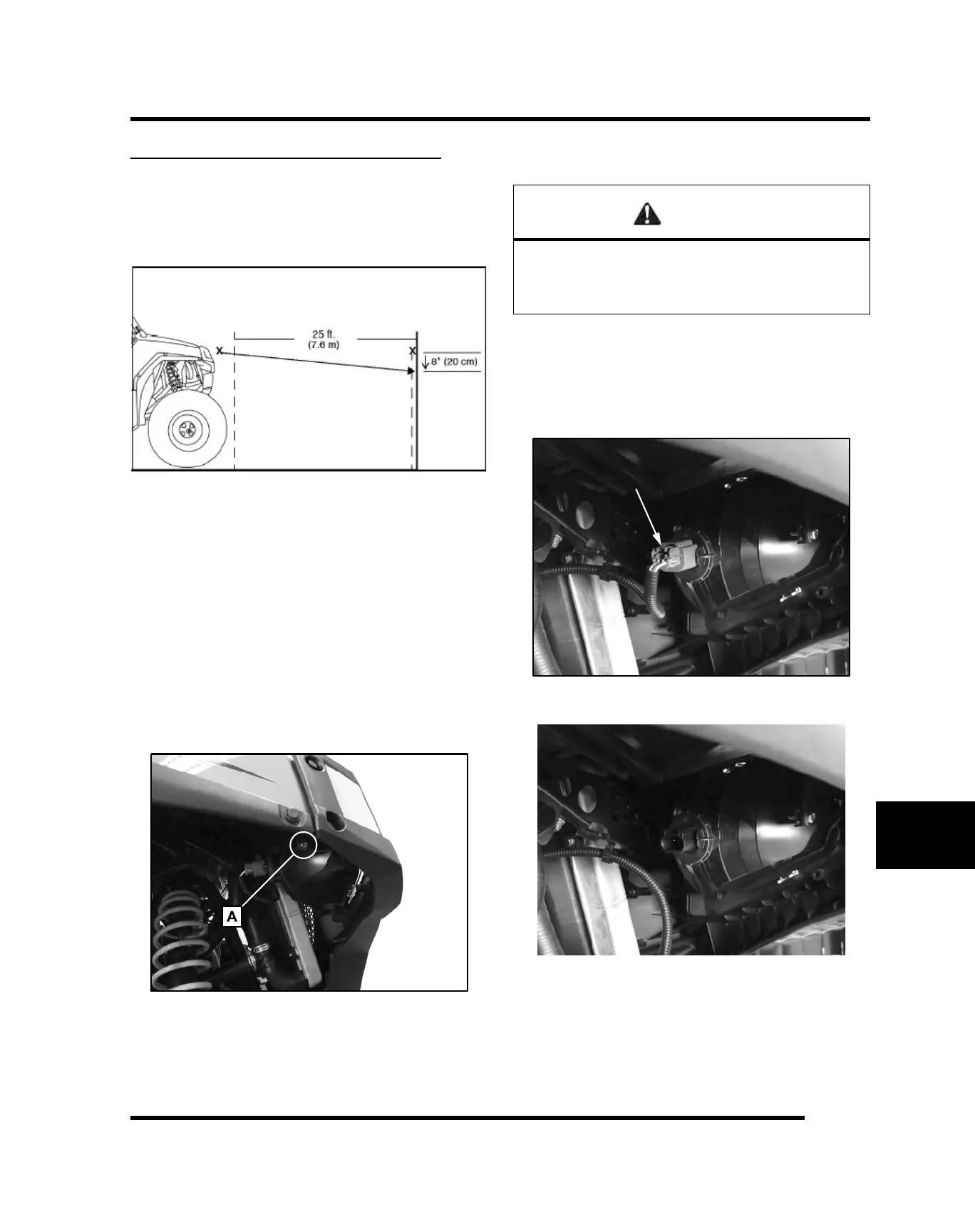

HEAD LIGHTS (INCANDESCENT)
Headlight Adjustment
The headlight beam is adjustable.
1. Place the vehicle on a level surface with the
headlight approximately 25 ft. (7.6 m) from a wall.
2. Measure the distance from the floor to the center of
the headlight and make a mark on the wall at the
same height.
3. With the machine in Park, start the engine and turn
the headlight switch to on.
4. The most intense part of the headlight beam should
be aimed 8 in. (20 cm) below the mark placed on the
wall in Step 2.
NOTE: Rider weight must be included in the seat
while performing this procedure.
5. Adjust the beam to the desired position by loosening
the adjustment screw (A) and moving the lamp to the
appropriate height.
6. Adjust the beam to desired position. Repeat the
procedure to adjust the other headlight.
WARNING
Due to the nature of light utility vehicles and where they
are operated, headlight lenses become dirty. Frequent
washing is necessary to maintain lighting quality. Riding
with poor lighting can result in severe injury or death.
Headlamp Bulb Replacement
1. Disconnect the wire harness from the headlamp
bulb. Be sure to pull on the connector, not on the
wiring.
2. Turn the bulb counterclockwise to remove it.
3. Insert new bulb. Reinstall the wire harness onto the
headlamp assembly.
4. Repeat steps 1-3 if replacing daytime running lights
(INT’L Only) also located in the headlamp housing.
NOTE: Make sure the tabs on the bulb locate
properly in the housing.
ELECTRICAL
