REAR CALIPER SERVICE

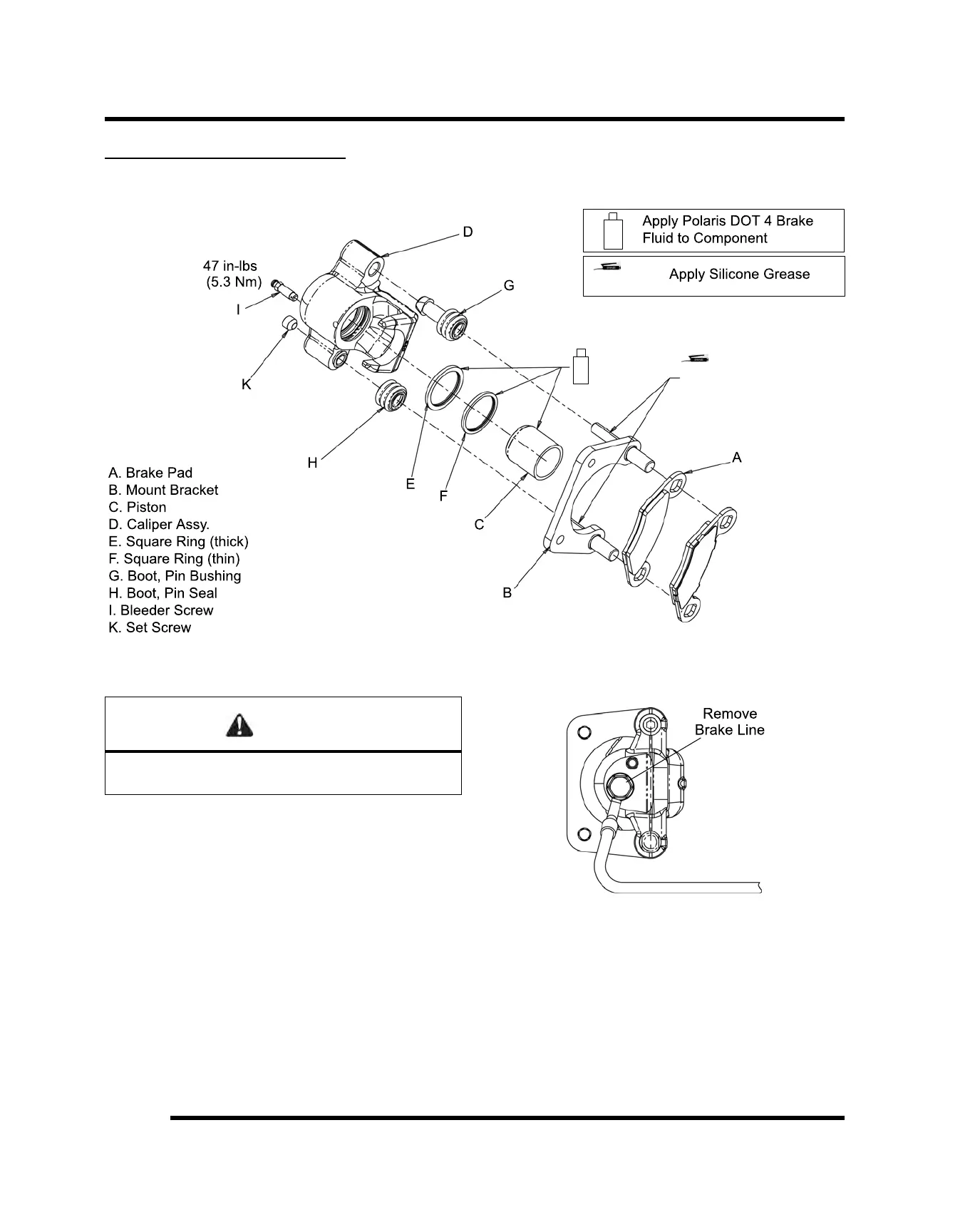

Caliper Exploded View
Caliper Removal
1. Elevate and safely support the rear of the vehicle.
CAUTION
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur.
2. Remove the (4) wheel nuts and rear wheel.
3. Clean caliper area before removal.
4. Place a container below the caliper to catch the
brake fluid. Remove brake line from caliper.
5. Loosen the brake pad adjustment set screw to allow
brake pad removal after the caliper is removed.
BRAKES
