4
4.35
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

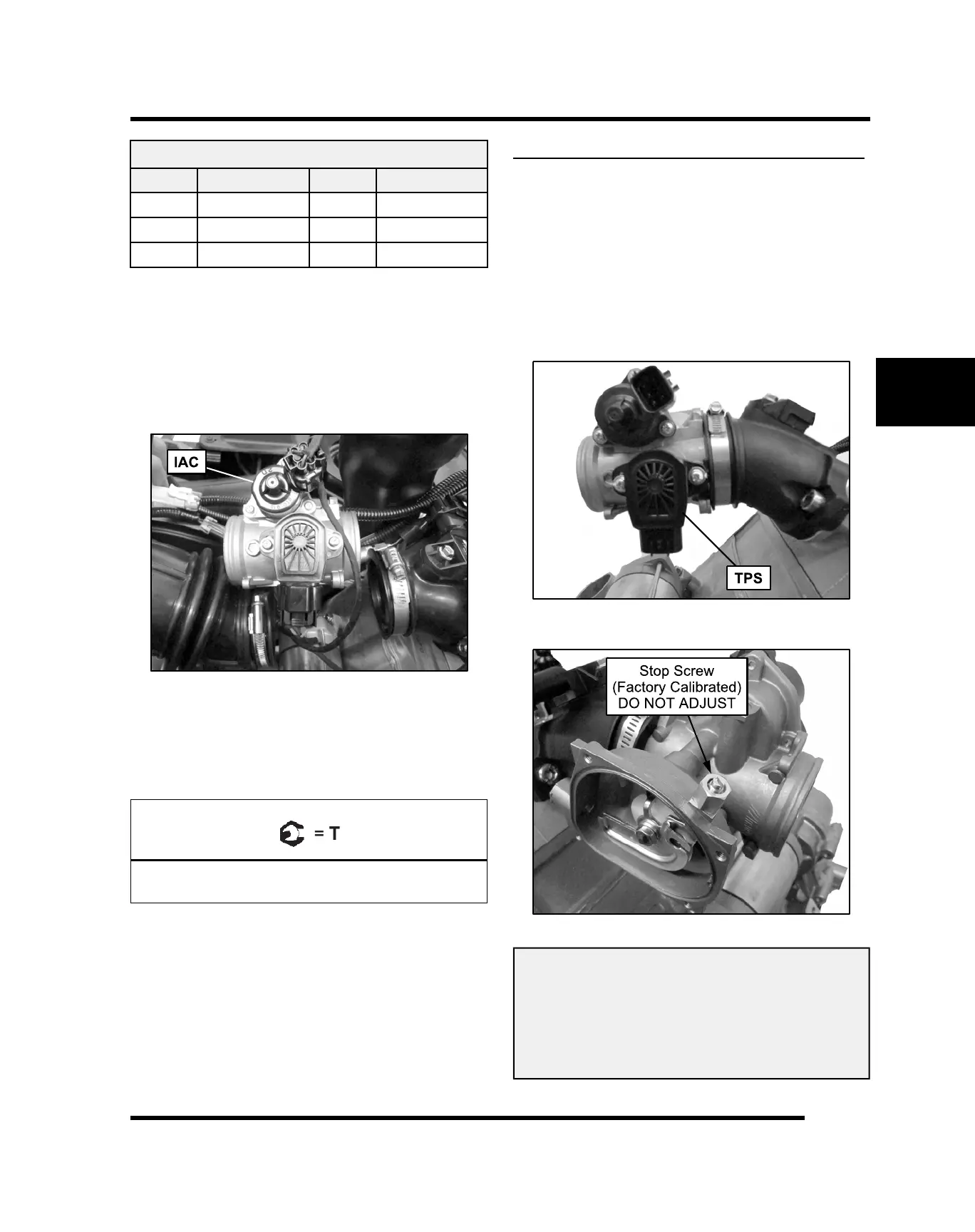

IAC Resistance Readings
Pins Resistance Pins Resistance
1 - 2 30 Ω ± 1.2 Ω
4 - 5
30 Ω ± 1.2 Ω
2 - 3
30 Ω ± 1.2 Ω
5 - 6
30 Ω ± 1.2 Ω
1 - 3
60 Ω ± 2.4 Ω
4 - 6
60 Ω ± 2.4 Ω
IAC Replacement
1. Remove the seats, rear service panel and the rear
cargo box (see Chapter 5).
2. Loosen the hose clamps retaining the throttle body.
3. Remove the throttle body from the intake track and
plug the intake boots with a clean shop towel.
4. Disconnect the vehicle harness from the IAC motor.
5. Remove the (3) Phillips-head mounting screws and
remove the IAC from the throttle body.
6. Install the new IAC and torque the mounting screws
to specification.
IAC Mounting Screw:
17.7 in-lbs (2 Nm)
7. Reconnect the vehicle harness to the IAC motor.
8. Reinstall the throttle body and securely tighten the
hose clamps.
9. Reinstall the rear cargo box, rear service panel and
seats (see Chapter 5).
THROTTLE POSITION SENSOR (TPS)
Operation Overview
The throttle position sensor (TPS) is used to indicate
throttle plate angle to the ECU. Mounted on the throttle
body and operated directly off the end of the throttle
shaft, the TPS works like a rheostat, varying the voltage
signal to the ECU in direct correlation to the angle of the
throttle plate. This signal is processed by the ECU and
compared to the internal pre-programmed “maps” to
determine the required fuel and ignition settings for the
amount of engine load.
The correct position of the throttle body stop screw
is established and set at the factory.
DO NOT loosen the throttle body stop screw or alter
its position in any manner. The stop screw controls
the air flow calibration of the throttle body. If the
stop screw is repositioned or adjusted, the throttle
body assembly must be replaced.
ELECTRONIC FUEL INJECTION
