Caliper Inspection

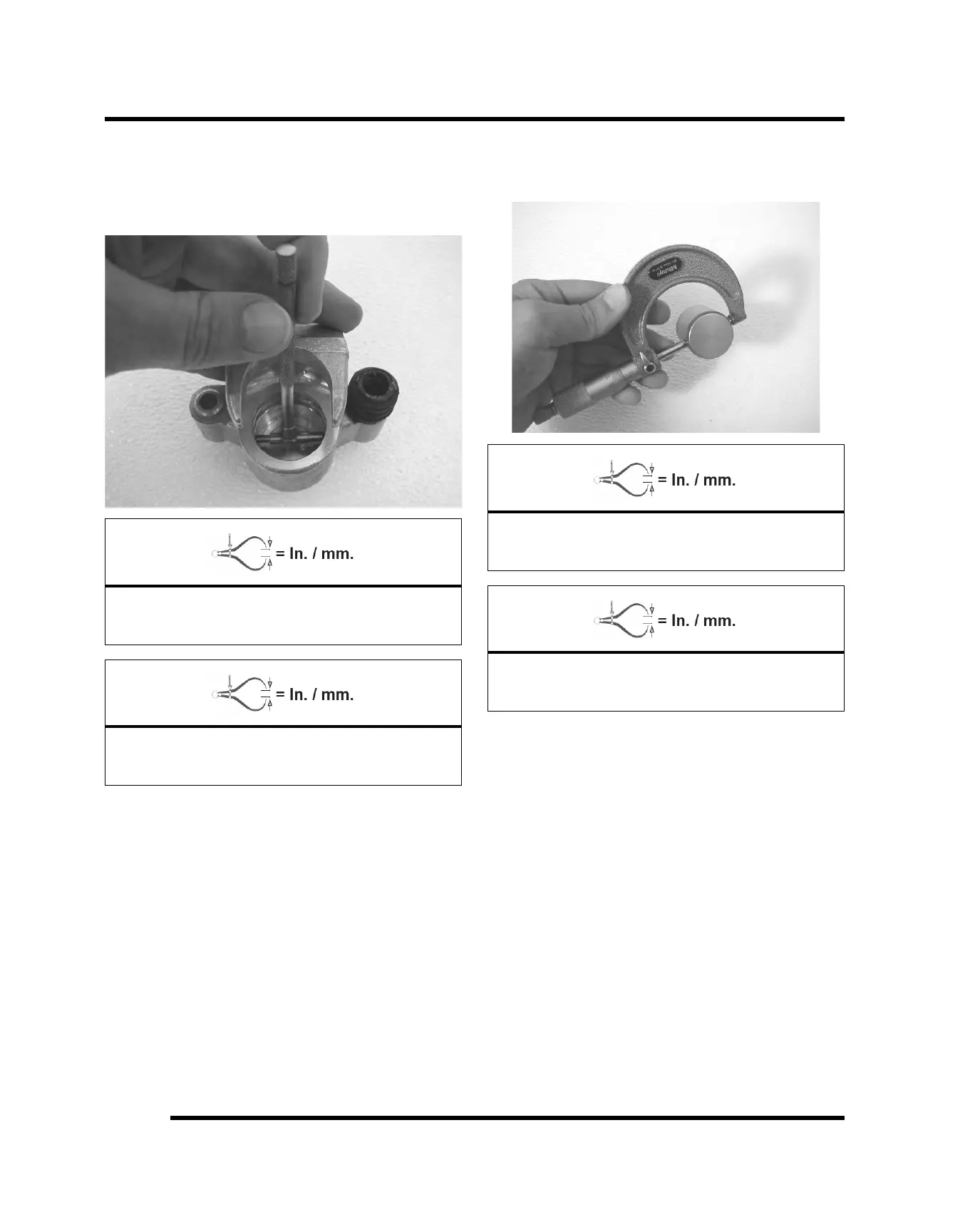

1. Inspect caliper body for nicks, scratches or wear.
Measure bore size and compare to specifications.
Replace if damage is evident or if worn beyond
service limit.
RZR / RZR S: Rear Caliper Piston Bore I.D.
Standard: 1.191” (30.25 mm)
Service Limit: 1.192” (30.28 mm)
RZR 4: Rear Caliper Piston Bore I.D.:
Standard: 1.505” (38.23 mm)
Service Limit: 1.507” (38.28 mm)
2. Inspect piston for nicks, scratches, wear or damage.
Measure diameter and replace if damaged or worn
beyond service limit.
RZR / RZR S: Rear Caliper Piston O.D.
Standard: 1.1875” (30.16 mm)
Service Limit: 1.186” (30.12 mm)
RZR 4: Rear Caliper Piston O.D.:
Standard: 1.500” (38.10 mm)
Service Limit: 1.498” (38.05 mm)
3. Inspect the brake disc and pads as outlined in this
chapter.
