7.62
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

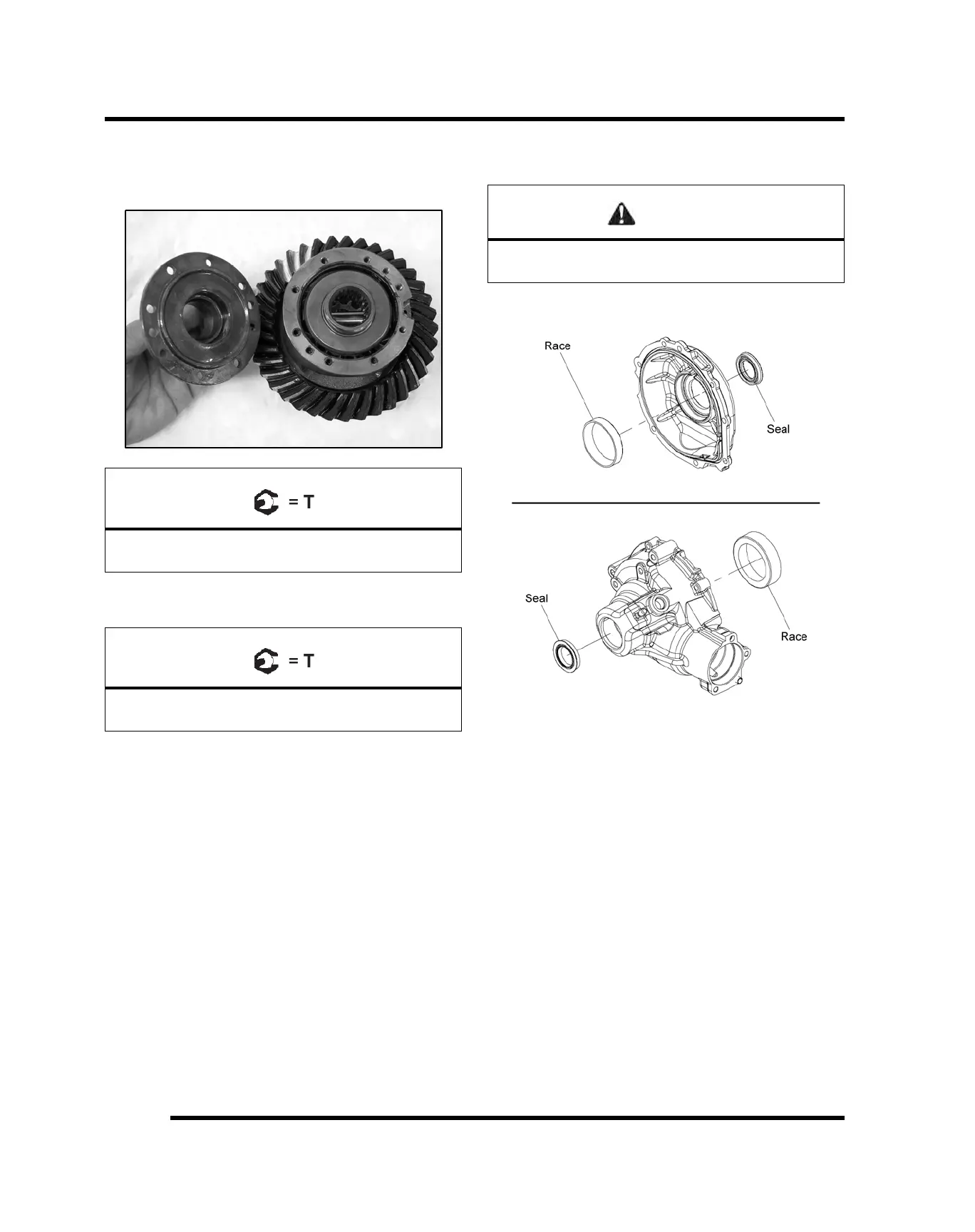

5. Install the upper differential gear and differential
cover. Apply Loctite® 271 to the cover screws and
torque the screws to specification.
Differential Cover Screws:
130-155 in-lbs (15-18 Nm)
6. Install the ring gear and torque the retaining bolts to
specification.
Ring Gear Bolts:
70-80 ft-lbs (95-108 Nm)
Gearcase Assembly
1. Replace all worn components.
2. If removed, install new bearing races using standard
bearing installation tools and an arbor press.
WARNING
Wear the appropriate safety equipment while installing
races to reduce the risk of injury.
NOTE: Grease all seals with Polaris All Season
Grease (PN 2871322) upon assembly.
3. Install new seals into the gearcase housing and
gearcase cover using a standard seal installer or
other suitable method.
4. Apply a thin coat of case sealant (PN 2871557) to
the gearcase mating surfaces upon cover
installation.
FINAL DRIVE
