9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

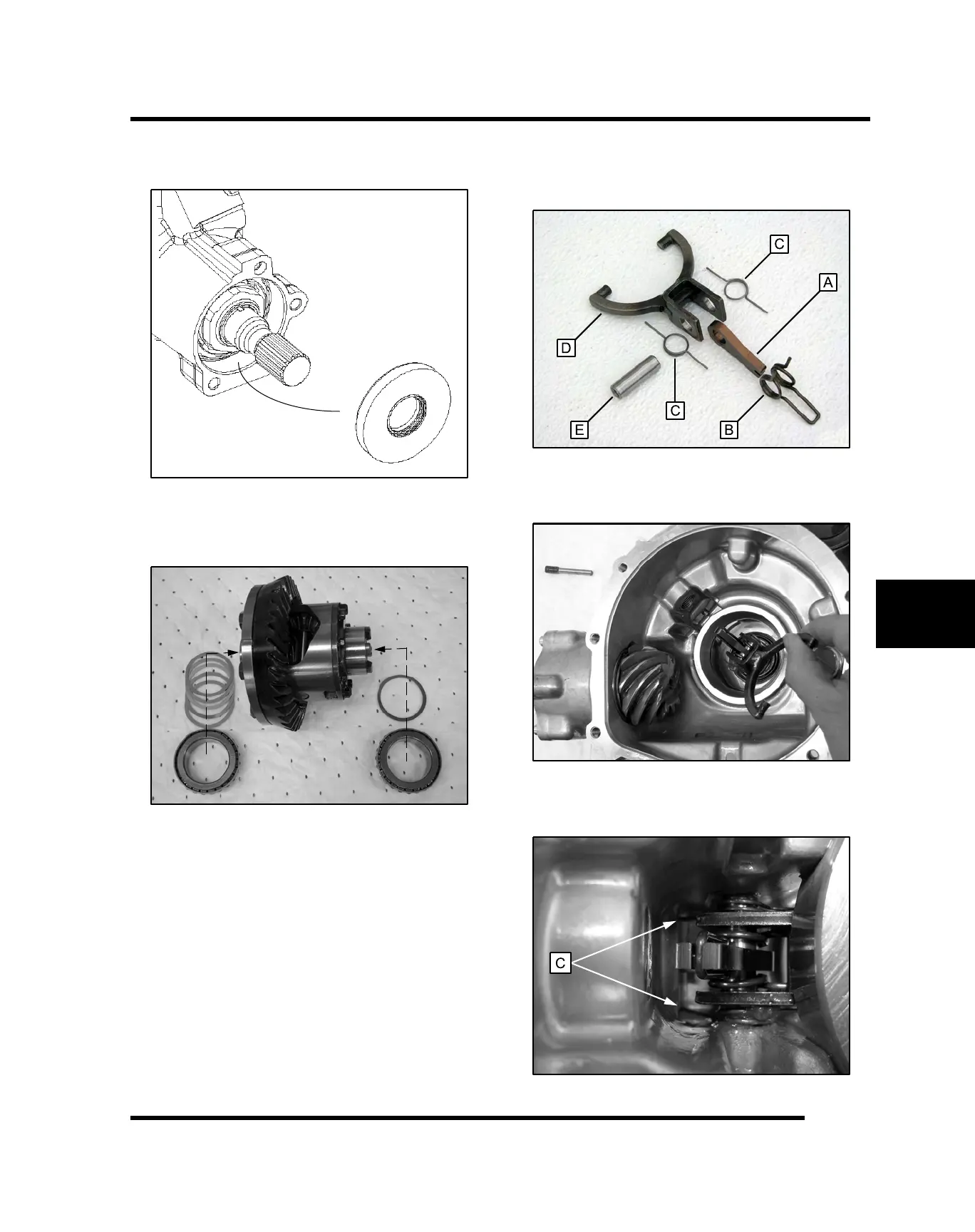

5. Install a new pinion shaft seal using a standard seal
installer or other suitable method.
6. Install the original shim (s) previously removed onto
the appropriate sides of the differential assembly.
Install the bearings by hand as they are a slip-fit.
7. If previously removed; assembly the shift lever (A),
shift lever spring (B), shift return springs (C), shift
yoke (D), and lock pin bushing (E).
8. Carefully install the shift yoke assembly into the
gearcase.
9. Install the shift yoke assembly with the shift return
springs (C), facing down in the housing.
FINAL DRIVE
