9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.
GENERAL INFORMATION
WARNING
* Gasoline is extremely flammable and explosive under
certain conditions.
* EFI components are under high pressure.
*Verify system pressure has been relieved before
disassembly.
* Never drain the fuel system when the engine is hot.
Severe burns may result.
* Do not overfill the tank. The tank is at full capacity
when the fuel reaches the bottom of the filler neck.
Leave room for expansion of fuel.
* Never start the engine or let it run in an enclosed area.
Gasoline powered engine exhaust fumes are poisonous
and can cause loss of consciousness and death in a
short time.
* Do not smoke or allow open flames or sparks in or
near the area where refueling is performed or where
gasoline is stored.
* If you get gasoline in your eyes or if you should
swallow gasoline, seek medical attention immediately.
* If you spill gasoline on your skin or clothing,
immediately wash with soap and water and change
clothing.
* Always stop the engine and refuel outdoorsor in a well
ventilated area.
Special Tools
PART
NUMBER
TOOL DESCRIPTION
2201519-A
Throttle Position Sensor (TPS) Tester
PU-47466
TPS Tester Wire
Harness
547927
TPS Tester Regulator
PU-43506-A
Fuel Pressure Gauge Kit
PV-48656
Fuel Pressure Gauge Adaptor
PU-47063-B
Digital Wrench® Diagnostic Software
(Includes most recent version of
software w/serial number, standard
interface cable, USB-Serial Adaptor
cable and SmartLink Module Kit)
PU-47471
Digital Wrench® SmartLink Module Kit
(PU-47470, PU-47469, PU-47468)
PU-47470
Digital Wrench®
PC Interface Cable
PU-47469
Digital Wrench®
Vehicle Interface Cable
PART
NUMBER
TOOL DESCRIPTION
PU-47468
Digital Wrench®
SmartLink Module
Bosch Automotive Service Solutions: 1-800-328-
6657 or http://polaris.service-solutions.com/

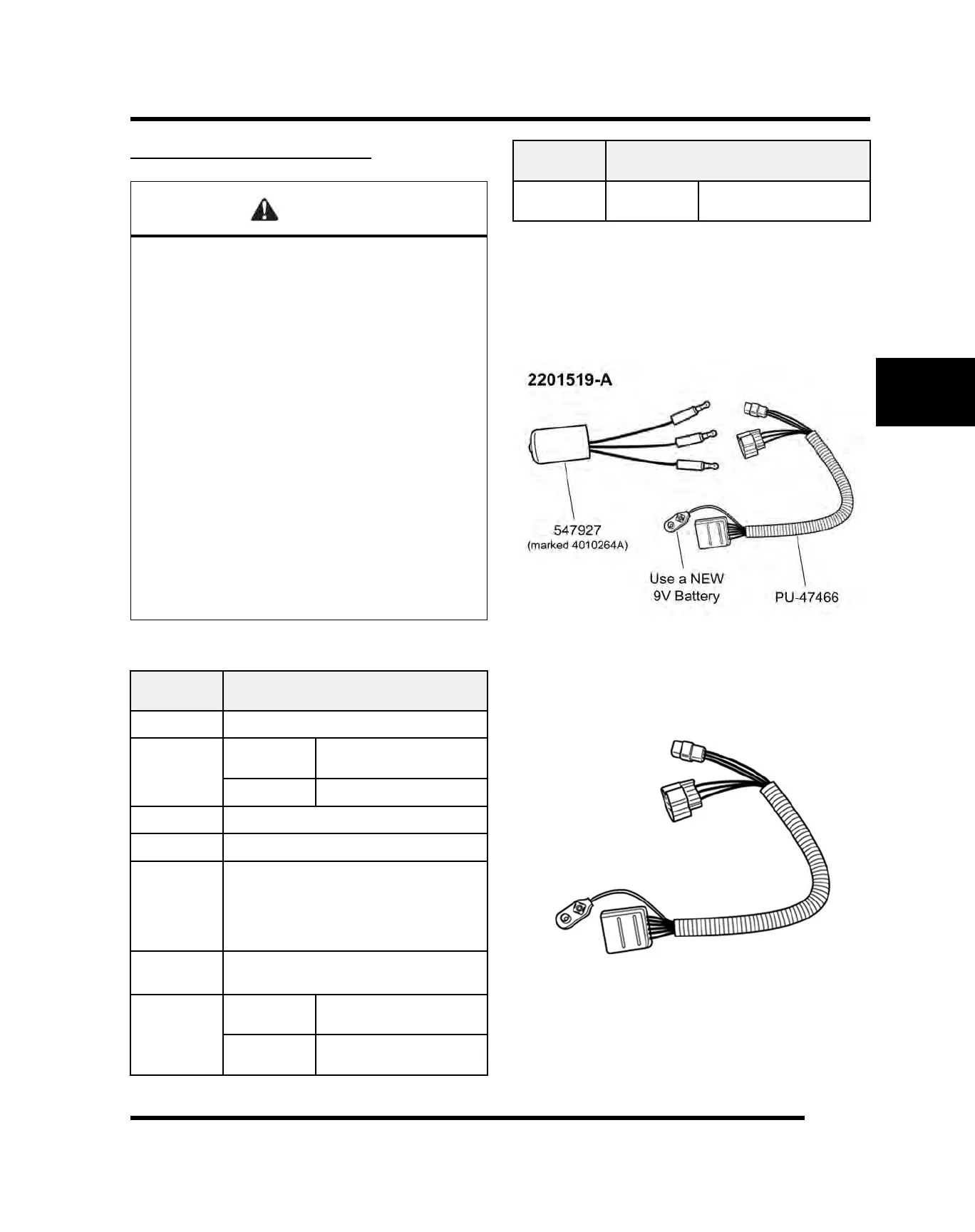

Throttle Position Sensor (TPS) Tester - 2201519-A
This tester allows the use of a digital multi-meter to test
TPS function as well as perform the TPS adjustment
procedure.
TPS Tester Wire Harness - PU-47466
This TPS wire harness is part of 2201519-A and
incorporates two TPS connectors to allow for multi-use
applications.
