9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.
NOTE: Voltage Regulator (547927) is required if
using TPS Tester Wire Harness (PU-47466). You may
already have this regulator (marked 4010264) as part
of another TPS Tester Kit. If you do not have this
regulator, you must order one from Bosch
Automotive Service Solutions at 1-800-328-6657.

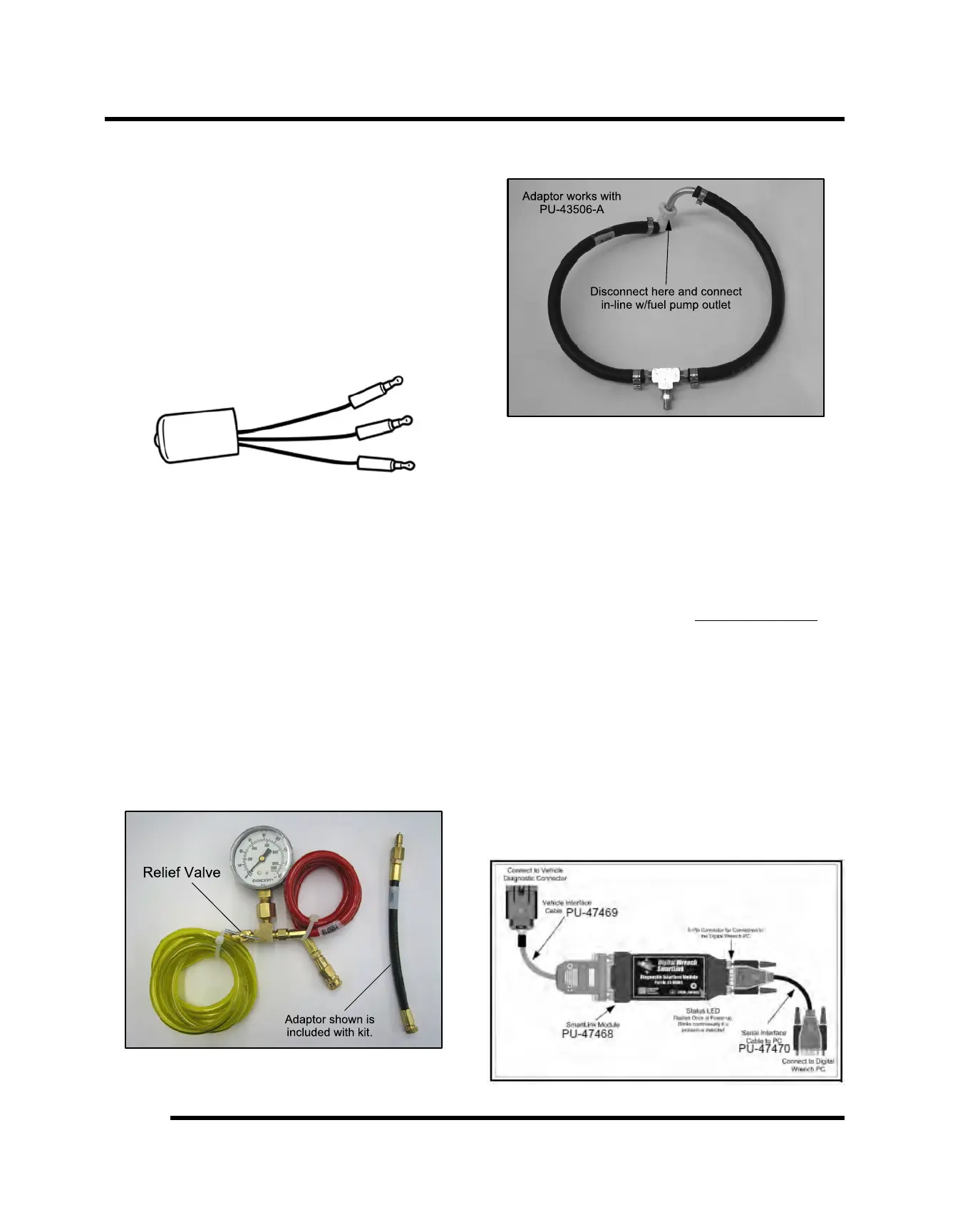

TPS Tester Regulator - 547927
This tester regulator is part of 2201519-A. It regulates the
9 volt battery voltage to a 5 volt reference input, required
when using the TPS Tester Wire Harness (PU-47466).
NOTE: You may already have this regulator (marked
4010264) as part of another TPS Tester Kit. If you do
not have this regulator, you must order one from
Bosch Automotive Service Solutions at 1-800-328-
6657.
Fuel Pressure Gauge Kit - PU-43506-A
IMPORTANT: The EFI fuel system remains under
high pressure, even when the engine is not running.
Before attempting to service any part of the fuel
system, pressure must be relieved (if applicable).
The Fuel Pressure Gauge Kit has an integrated
pressure relief valve that can be used to bleed off
pressure once you have completed the fuel pressure
test.
Fuel Pressure Gauge Adaptor - PV-48656
Digital Wrench® Diagnostic Software - PU-47063-B
This dealer-only software installs on laptop computers
equipped with a CD drive and is designed to replace
multiple shop tools often used to test EFI components. It
also includes step-by-step diagnostic procedures to aid
technician repair and troubleshooting.
IMPORTANT: If the PC you are using is not equipped
with a 9-pin serial port, a USB to serial port adaptor
will be necessary. A USB to serial port adaptor can
be purchased through DSA at: www.diagsys.com
Digital Wrench® SmartLink Module Kit - PU-47471
This module kit contains the necessary cables and
hardware to communicate between the vehicle ECU and
the Digital Wrench® diagnostic software. Polaris dealers
can also order the following kit components separately:
SmartLink Module PU-47468, Vehicle Interface Cable
PU-47469 and PC Interface Cable PU-47470. This
module kit is used on all 8 pin connector-based Polaris
EFI systems. This kit is available to Polaris dealers
through our tool supplier Bosch Automotive Service
Solutions at http://polaris.service-solutions.com or 1-800-
328-6657.
ELECTRONIC FUEL INJECTION
