2.26
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

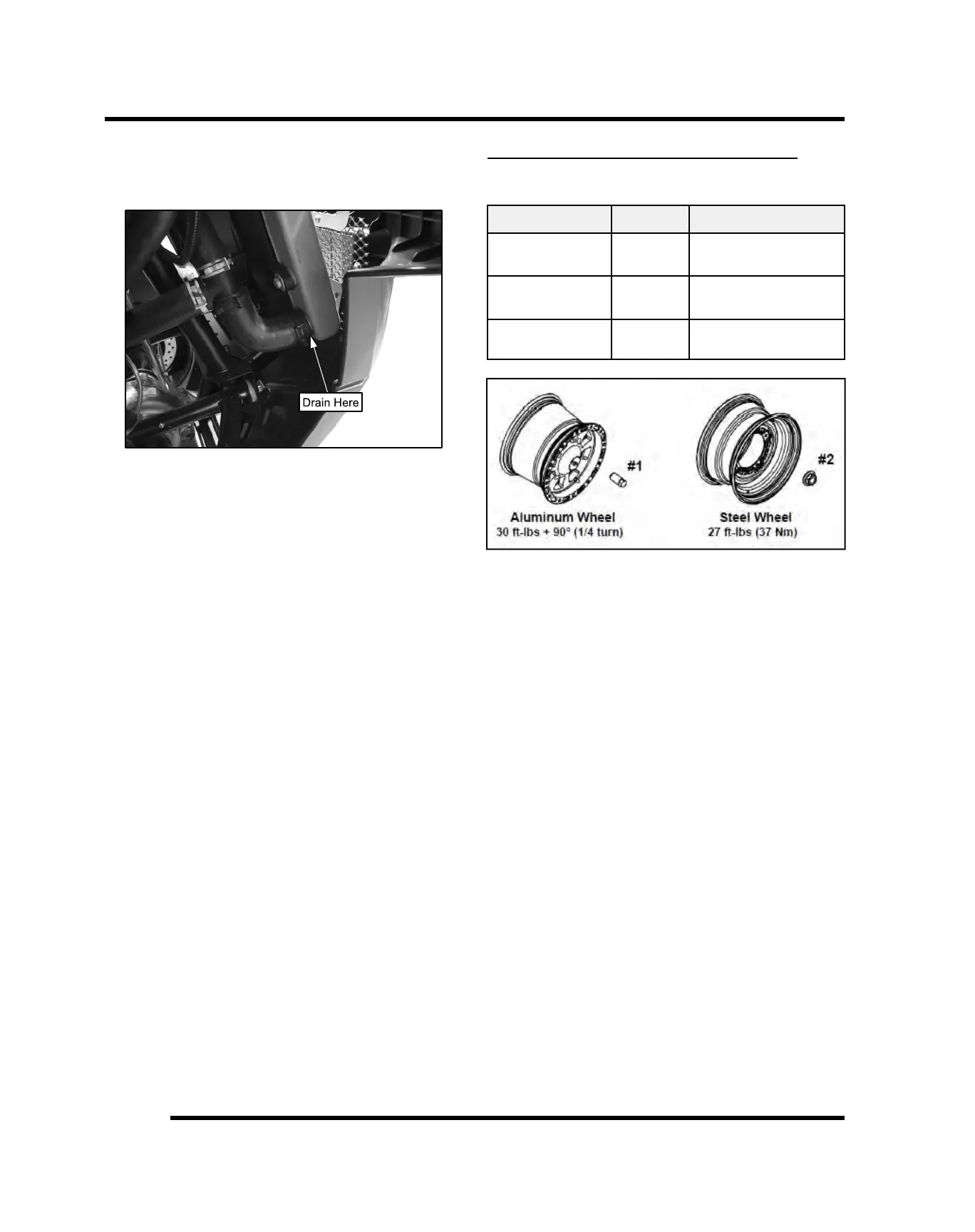

4. Drain the coolant from the radiator by removing the
lower coolant hose from the radiator as shown.
Properly dispose of the coolant.
5. Allow coolant to completely drain.
FINAL DRIVE / WHEEL AND TIRE
Wheel and Hub Torque Table
Item
Nut Type
Specification
Aluminum
Wheels (Cast)
Lug Nut
#1
30 ft-lbs + 90° (1/4
turn)
Steel Wheels
(Black / Camo)
Flange
Nut #2
27 ft-lbs (37 Nm)
Hub Retaining
Nuts
- 80 ft-lbs (108 Nm)
NOTE: Do not lubricate the stud or the lug nut.
Wheel Removal
1. Position the vehicle on a level surface.
2. Place the transmission in PARK (P) and stop the
engine.
3. Loosen the wheel nuts slightly. If wheel hub removal
is required, remove the cotter pin and loosen the hub
nut slightly.
4. Elevate the appropriate side of the vehicle by placing
a suitable stand under the frame.
5. Remove the wheel nuts and remove the wheel.
6. If hub removal is required, remove the hub nut and
washers.
Wheel Installation
1. Verify the transmission is still in PARK (P).
2. Install the wheel hub, washers, and hub nut, if
previously removed.
3. Place the wheel in the correct position on the wheel
hub. Be sure the valve stem is toward the outside
and rotation arrows on the tire point toward forward
rotation.
4. Attach the wheel nuts and finger tighten them.
5. Carefully lower the vehicle to the ground.
MAINTENANCE
