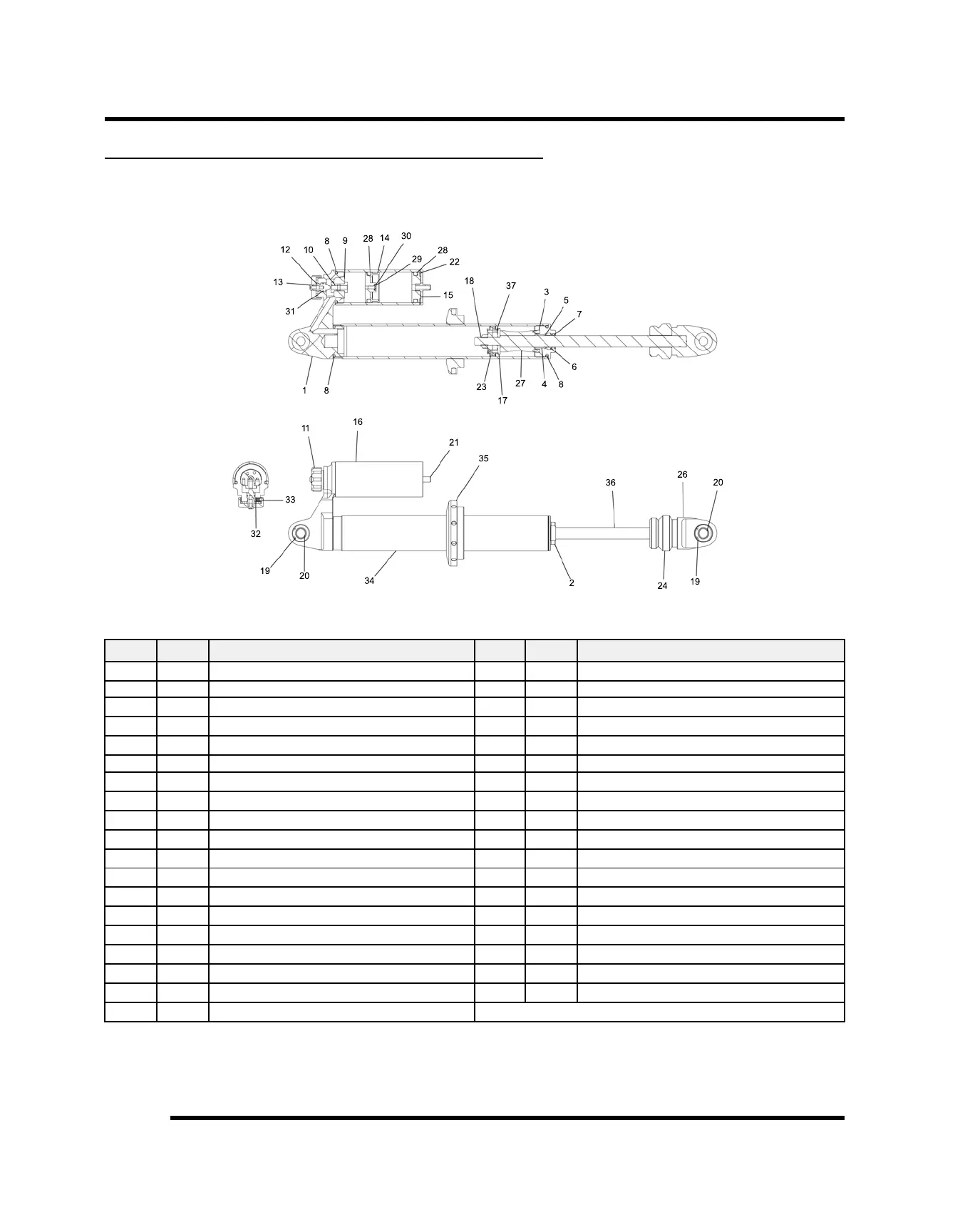

WALKER EVANS™ SHOCK EXPLODED VIEWS
Walker Evans™ 2.0" Shock
Ref.
Qty
Description
Ref.
Qty
Description
1. 1
Body Cap Asm.
20. 2
Spherical Bearing
2. 1 Seal Head Asm. 21. 1 Schraeder Valve
3. 1
Internal Bump Stop
22. 1
Snap Ring
4. 1
Shaft Bushing (0.625")
23. 2
Piston Wear Band (1.750" OD)
5. 1
O-Ring
24. 1
Bump Stop
6. 1 Seal 25.
-
N/A
7. 1
Wiper
26. 1
Shaft Loop
8. 3
O-Ring
27. 1
Shaft Spacer (1.235" x 1.985")
9. 1
Piston, Clicker
28. 2
O-Ring
10. 2 Clicker Bolt 29. 1
Screw (8/32")
11. 1 Clicker Knob 30. 1
O-Ring
12. 1 Clicker Stud 31. 1
O-Ring
13. 1
Screw (10/32")
32. 1
Detent Spring
14. 1
Piston Asm, Floating (IFP)
33. 1 Detent Ball
15. 1
Reservoir End Cap
34. 1
Shock Body
16. 1
Reservoir Body
35. 1
Spring Adjustment Nut
17. 1
Washer (1.50" x 0.125" x 0.348")
36. 1
Shaft, Chrome
18. 1
Crimp Nut (7/16")
37. 1 2-Piece Piston Asm.
19. 4
Snap Ring
