3.66
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

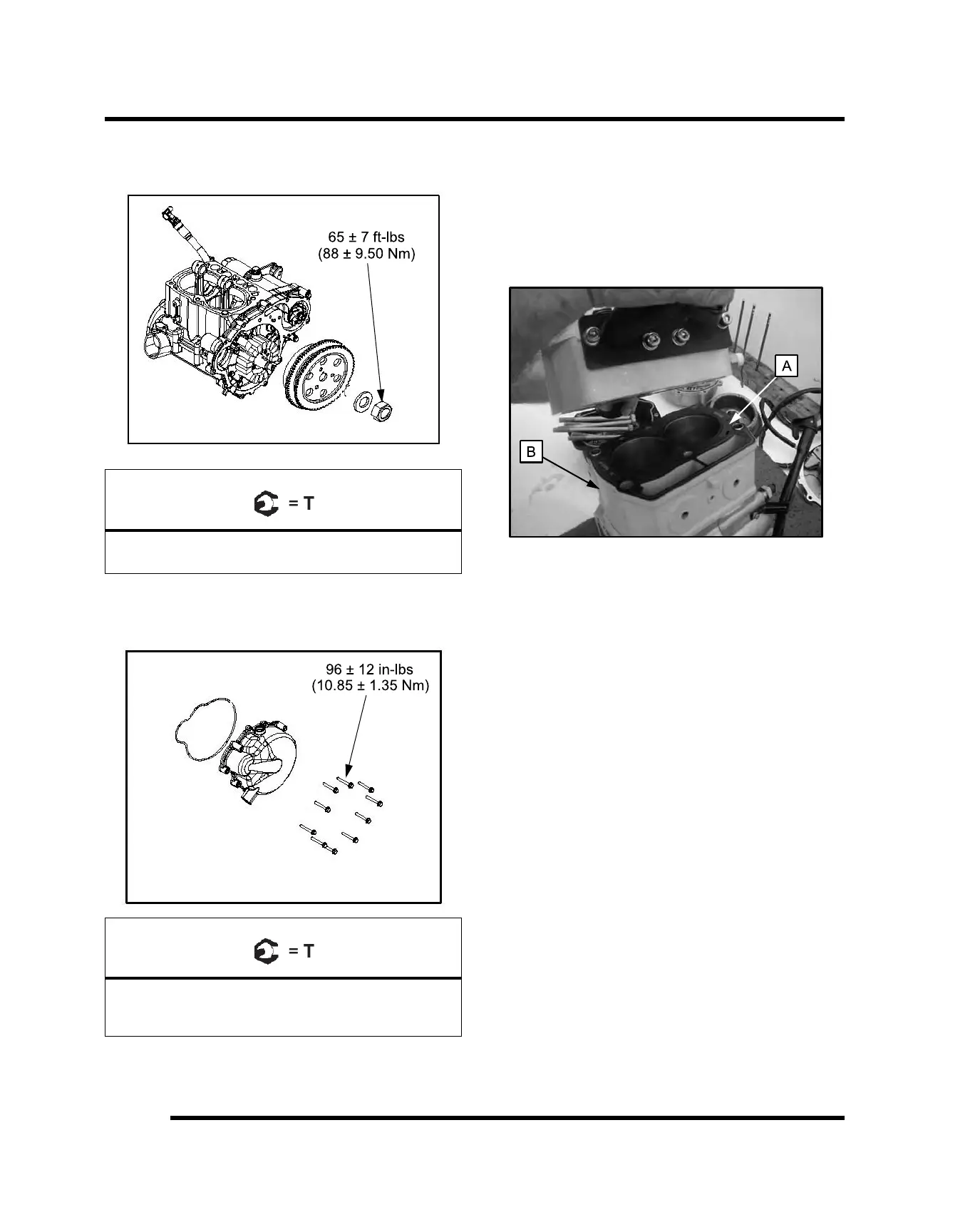

3. Install the flywheel, washer, nut, and key. Torque
flywheel nut to specification.
Flywheel Nut:
65 ± 7 ft-lbs (88 ± 9.50 Nm)
4. Install stator housing with new O-ring. Torque the
bolts to specification and follow proper bolt torque
sequence at the beginning of this chapter.
Stator Housing Bolts:
96 ± 12 in-lbs (10.85 ± 1.35 Nm)
Torque in proper sequence
Cylinder Head Reassembly
NOTE: Before reassembly, clean the bolts and bolt
holes with Loctite Primer N (commercially available)
to remove any debris. This will ensure proper
sealing when installing bolts.
1. Install the head gasket (A) on the cylinder (B).
2. Install cylinder head on cylinder.
ENGINE
