8
8.3
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.
Installation
1. Perform the steps in reverse order to install the gear
shift selector (shifter, cable, console, shift knob).
2. Tighten the shift cable nut to specification.
Shift Cable Nut:
130-155 in-lbs (14.7-17.5 Nm)
Shift Cable Inspection / Adjustment
Shift cable adjustment may be necessary if symptoms
include:
• No AWD or gear position display on instrument
cluster
• Ratcheting noise on deceleration
• Inability to engage a gear
• Excessive gear lash (noise)
• Gear selector moving out of desired range

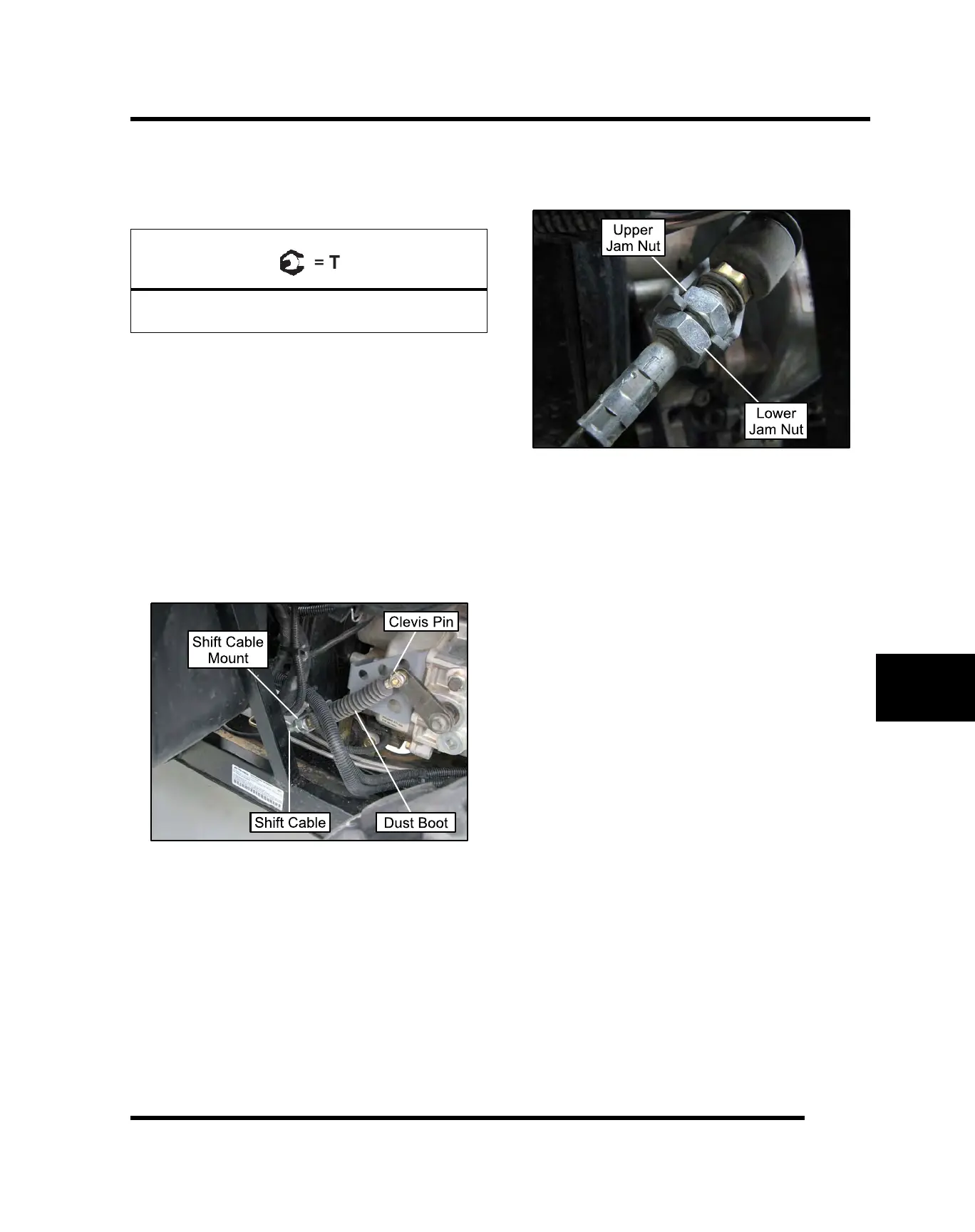

1. Locate the shift cable in the rear LH wheel well area.
2. Inspect shift cable, clevis pin, pivot bushings, and
dust boot. Replace if worn or damaged.
3. If adjustment is required, loosen the lower jam nut
and pull the cable out of the mount to move the
upper jam nut.
4. Adjust the shift cable so there is the same amount of
cable travel when shifting slightly past the detents of
HIGH (H) gear and PARK (P).
5. Thread the upper or lower jam nut as required to
obtain proper cable adjustment.
NOTE: This procedure may require a few
attempts to obtain the proper adjustment.
6. Once the proper adjustment is obtained, place the
shift cable and upper jam nut into the mount. Tighten
the lower jam nut against the mount.
TRANSMISSION
