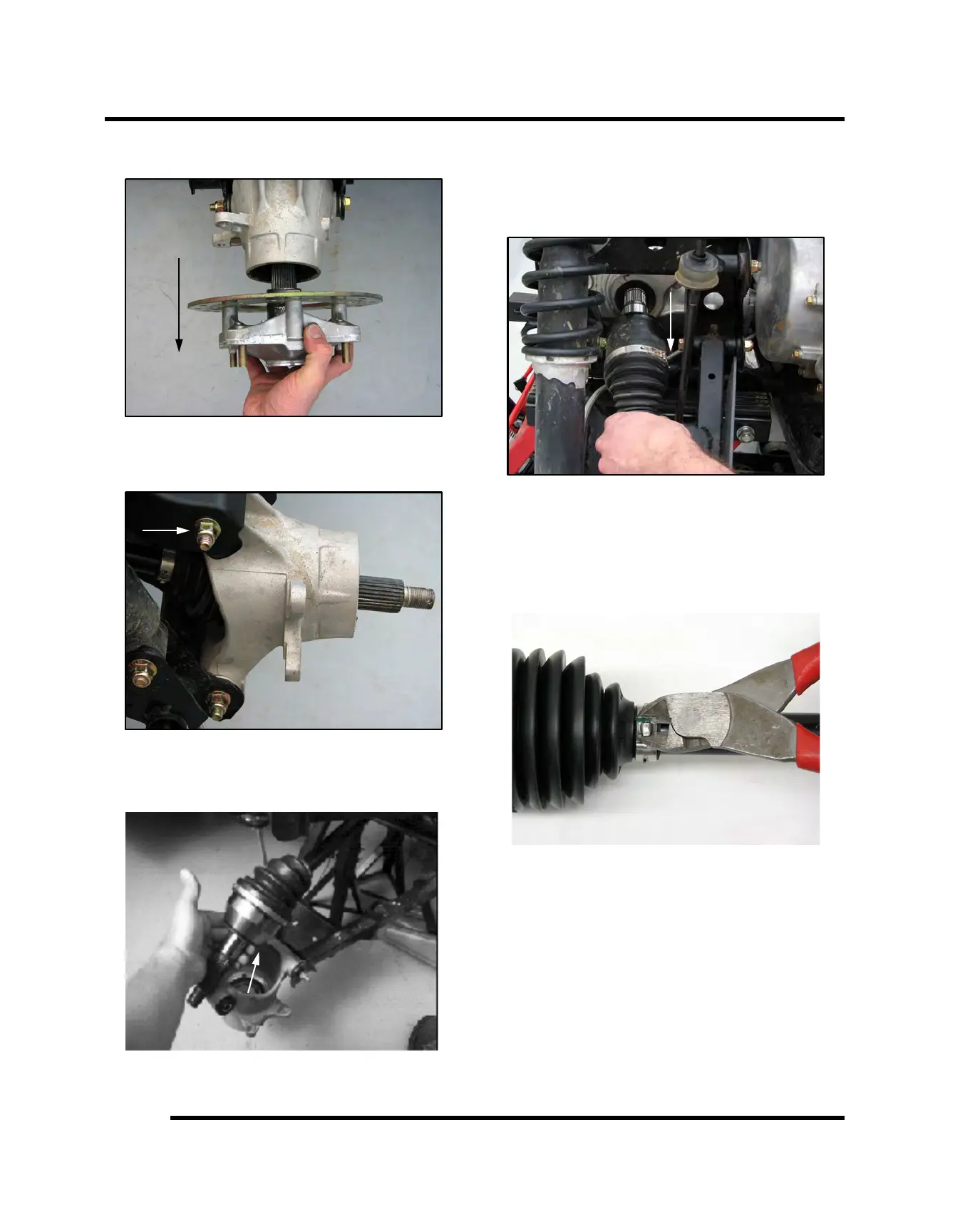

5. Remove the rear wheel hub assembly.
6. Remove the bolt that attaches the rear bearing
carrier to the upper A-arm.
7. Slide the rear drive shaft out of the bearing carrier by
pulling the bearing carrier assembly outward and
tipping it down to remove the shaft.
8. Grasp the rear drive shaft and pull sharply outward
on the shaft to disengage it from the rear gearcase.
NOTE: Take care when removing to prevent
damaging the seal.
9. Inspect axle splines and CV boots for any damage.
Outer CV Joint / Boot Replacement
1. Use a side cutters to cut and discard the boot
clamps.
