6. Install wheel and torque wheel nuts to specification.
Wheel Nuts:
Steel Wheels: 27 ft-lbs (37 Nm)
Aluminum Wheels: 30 ft-lbs + 90° (1/4 turn)
7. Field test unit for proper braking action before putting
into service. Inspect for fluid leaks and firm brakes.
Make sure the brake is not dragging when pedal is
released. If the brake drags, re-check assembly and
installation.
NOTE: If new pads are installed, refer to “FRONT
BRAKE PADS - Brake Burnishing Procedure”.
FRONT BRAKE DISC
Disc Runout

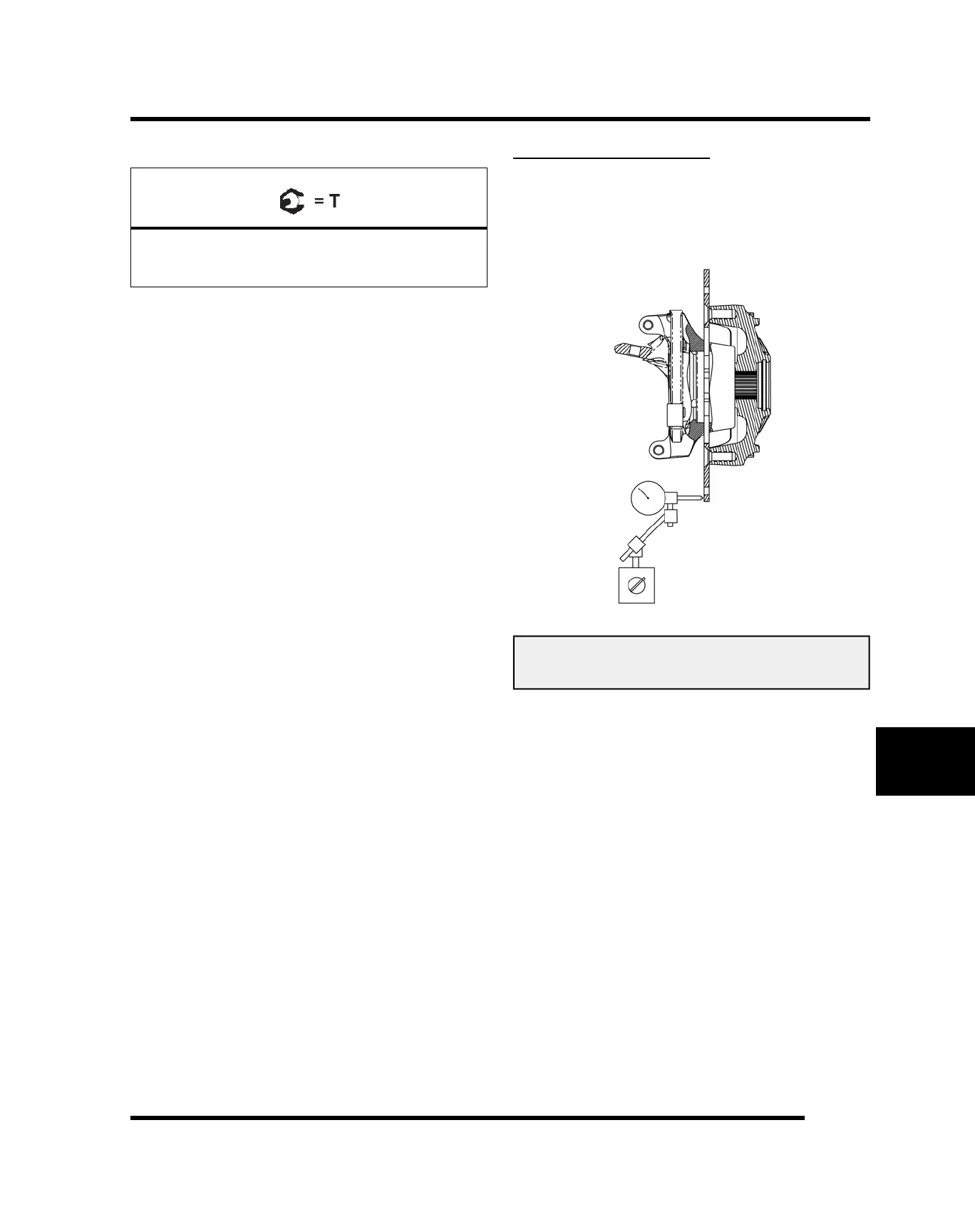

1. Mount dial indicator as shown. Slowly rotate the disc
and read total runout on the dial indicator. Replace
the disc if runout exceeds specification.
Brake Disc Runout:
Service Limit 0.010” (0.254 mm)
