1.7
9924882 - 2013–2014 RZR 800
© Copyright 2013 Polaris Sales Inc.

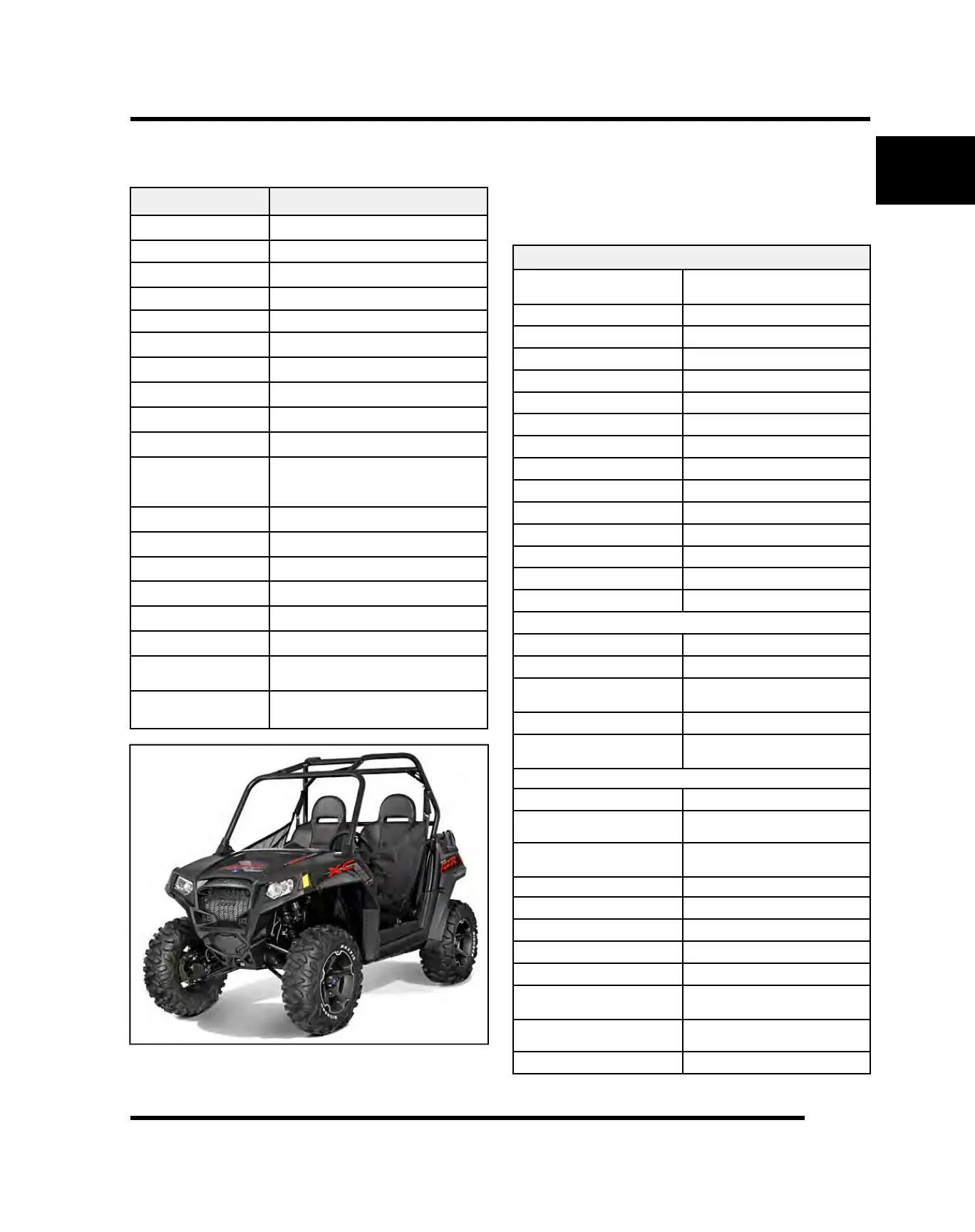

MODEL: 2014 RZR 800 XC
MODEL NUMBER: Z14VH7EAJ
Category Dimension / Capacity
Length
103 in. / 261.6 cm
Width 55 in. / 139.7 cm
Height
69 in. / 175.3 cm
Wheel Base 77 in. / 196 cm
Ground Clearance 11.3 in. / 28.7 cm
Dry Weight 1100 lbs. / 499 kg
Gross Vehicle Weight 1727 lbs. / 783 kg
Front Storage Capacity 25 lbs. / 11.3 kg
Cargo Box Dimension
42 in. x 22 in. / 107 cm x 56 cm
Cargo Box Capacity 300 lbs. / 136 kg
Maximum Weight
Capacity (Payload)
740 lbs. / 335.6 kg
(Includes rider(s), cargo, accessories
and trailer tongue weight)
Hitch Towing Capacity 1500 lbs. / 680 kg
Hitch Tongue Capacity 150 lbs. / 68 kg
Front Wheel Type / Size
Aluminum / 14 x 7
Rear Wheel Type / Size
Aluminum / 14 x 9
Front Tire Type / Size Maxxis Bighorn / 26 x 9 R12
Rear Tire Type / Size Maxxis Bighorn / 26 x 11 R12
Walker Evans Preload
Front / Rear
1.25 in. (3.175 cm) / 1.875 in. (4.76 cm)
Walker Evans Clicker
Setting (Stock)
6 Turns from full soft
MODEL: 2013–2014 RZR / EPS 800
MODEL NUMBER: R13VH76AC, AD, AN, AS;
Z14VH76AC, AD
MODEL NUMBER: R13VH7EAI; Z14VH7EAI, AJ, AK,
AL, AW
Engine
Platform
H.O. Domestic Twin Cylinder,
Liquid Cooled, 4-Stroke
Engine Number
1204670 RZR800-13
Engine Displacement
760cc H.O.
Number of Cylinders
2
Bore & Stroke (mm)
80 x 76.5 mm
Compression Ratio
11:1
Compression Pressure 165 - 185 psi
Engine Idle Speed
1250 ± 100 RPM
Engine Max Operating RPM
6600 RPM
Lubrication
Pressurized Wet Sump
Oil Requirements PS-4 Synthetic
Oil Capacity 2 qts. / 1.9 liters
Coolant Capacity 4.8 qts. / 4.5 liters
Overheat Warning
Instrument Cluster Indicator
Exhaust System Dual Headpipe / Single Silencer
Fuel System
Fuel System Type
Bosch M17 EFI
Fuel Delivery Electronic Fuel Pump (in tank)
Fuel Pressure
2013: 45 +/- 2 psi (310 +/- 14 kPa)
2014: 58 +/- 2 psi (400 +/- 14 kPa)
Fuel Filters
See Chapter 4
Fuel Capacity / Requirement
7.25 gal. (27.4 liters)
87 Octane (minimum)
Electrical
Alternator Rated Output 500 Watts @ 3000 RPM
Headlights (Halogen)
2 - Halogen: Low 55 W / High 60
W
Headlights (LED)
2 - Dual Beam LED:
Low 27 Watts; High 40 Watts
Tail / Brake 2 - 6 Watts / 2 - 27 Watts
Starting System
Electric Start
Ignition System Bosch M17 (ECU Controlled)
Ignition Timing (Variable) 3° - 10° BTDC @ 1200 RPM
Spark plug / Gap RC7YC3 / 0.035 in. (0.9 mm)
Battery (RZR)
Yuasa YTX20HL /
18 Amp Hr. / 310 CCA / 12 Volt
Battery (RZR EPS)
Deka ETX30L / 30 AH
365 CCA / 12 Volt
Instrument Type
Multifunction Instrument Cluster
GENERAL INFORMATION
1
