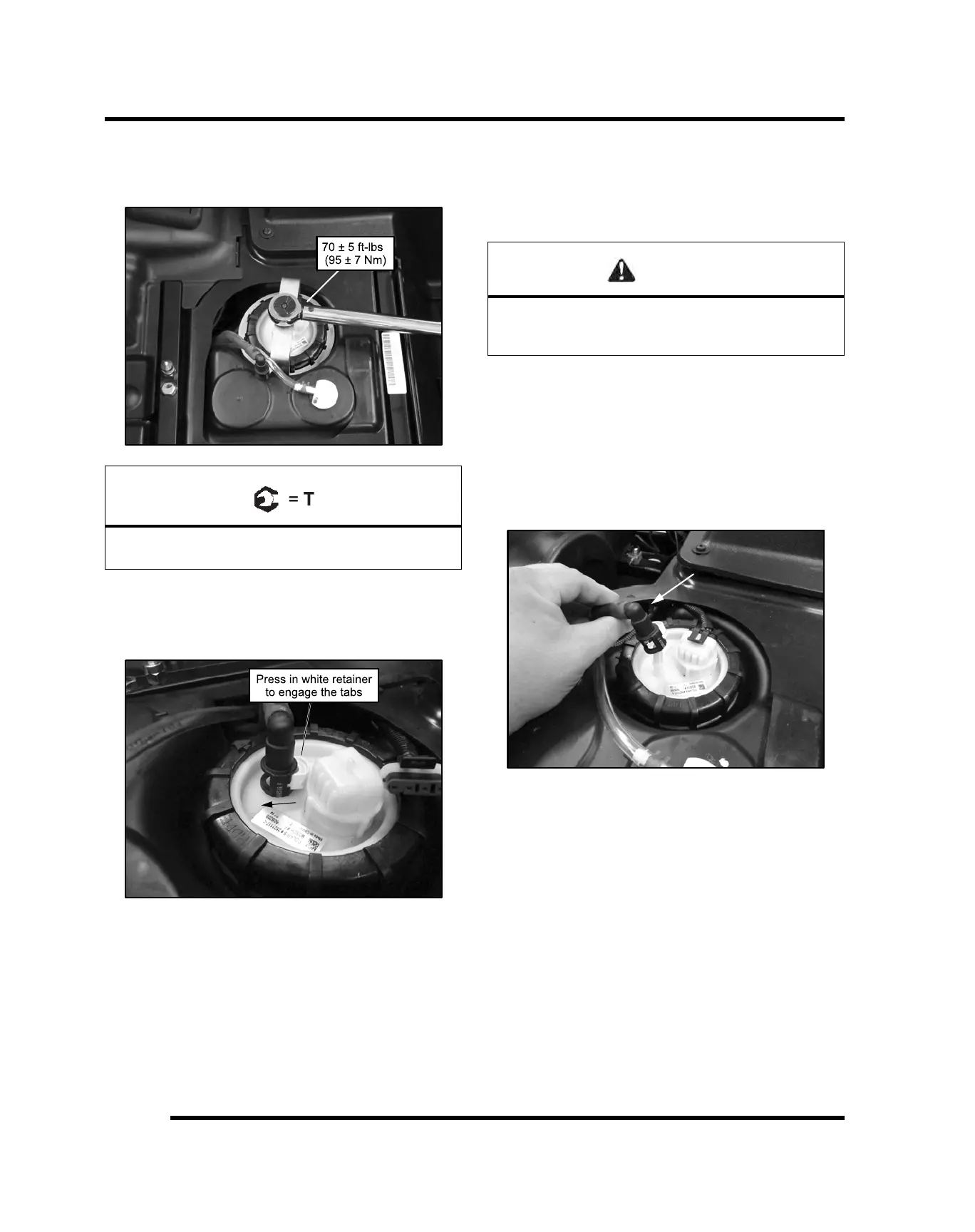

17. Torque PFA nut to specification using the Fuel Pump
Service Tool (PU-50326) and a calibrated torque
wrench.
Fuel Pump PFA Nut:
70 ± 5 ft-lbs (95 ± 7 Nm)
18. Verify alignment of fuel pump and tank orientation
marks.
19. Connect the fuel line to the fuel pump outlet.
IMPORTANT: Be sure to engage the white
retainer on fuel line until it snaps into place. Pull
on fuel line lightly to confirm connection.
20. Connect the fuel pump electrical harness.
21. Install the passenger seat.
22. Test the fuel pump by turning on the key and
listening for the pump to activate. Cycle the key
several times to prime the system.
Fuel Tank Removal (RZR / RZR S)
IMPORTANT: Syphon as much fuel from the tank as
possible before attempting to remove it from the
vehicle.
WARNING
Always wear safety goggles when working with high
pressure or flammable fluids. Failure to do so could
result in serious injury or complications.
1. Remove the driver and passenger seats along with
the rear service panel.
2. Disconnect the negative battery cable from the
battery located under the driver’s seat.
3. While holding a shop towel over the fuel line
connector, disconnect the quick connect fuel line
from the fuel pump. Move the fuel line out of the way
for tank removal.
NOTE: A small amount of fuel may come out of
the fuel line or tank. Properly drain fuel into a
suitable container.
