4
4.27
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.
11. Use cleaning wipes provided to clean fuel tank
surface and threads. Remove all debris, grease and
oil. Allow surfaces to dry completely.

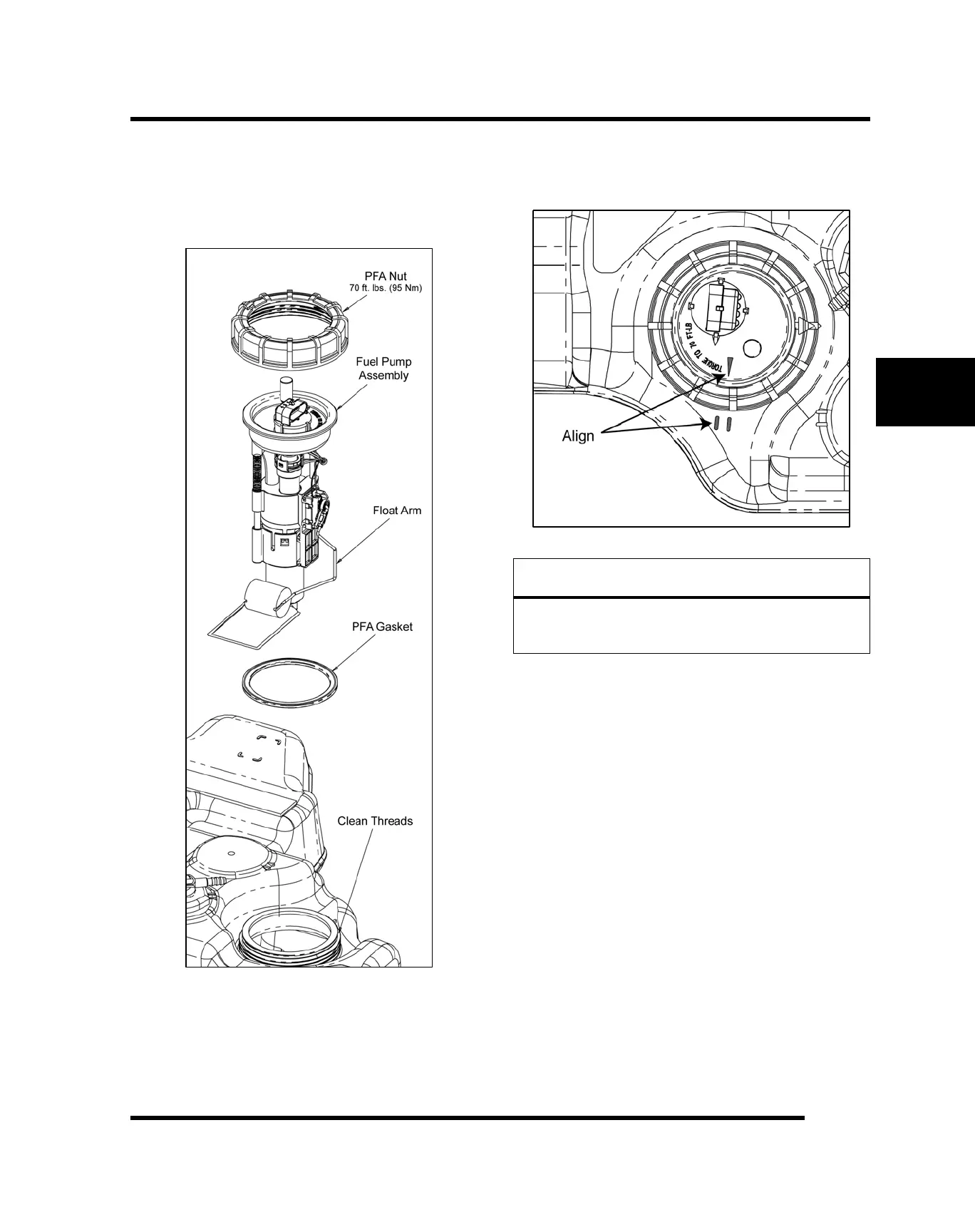

12. Install new PFA gasket onto fuel pump assembly
using care not to damage gasket or bend float arm.
13. Install fuel pump into fuel tank, hold float arm to the
pump body and tilt assembly to ensure float arm
does not get caught or bent during installation.
14. Gently push down on fuel pump flange ensuring
flange is centered.
15. Roughly align orientation mark on fuel pump
between the orientation marks on fuel tank to ensure
float arm does not get bent or snagged.
CAUTION
Failure to align the orientation marks may lead to
interferences with the fuel level float arm and cause
incorrect function.
16. While maintaining downward pressure, thread new
PFA nut onto fuel tank and hand tighten. Use care
when starting PFA nut, ensuring threads are properly
aligned. Verify orientation marks are still aligned
between fuel pump and fuel tank.
ELECTRONIC FUEL INJECTION
