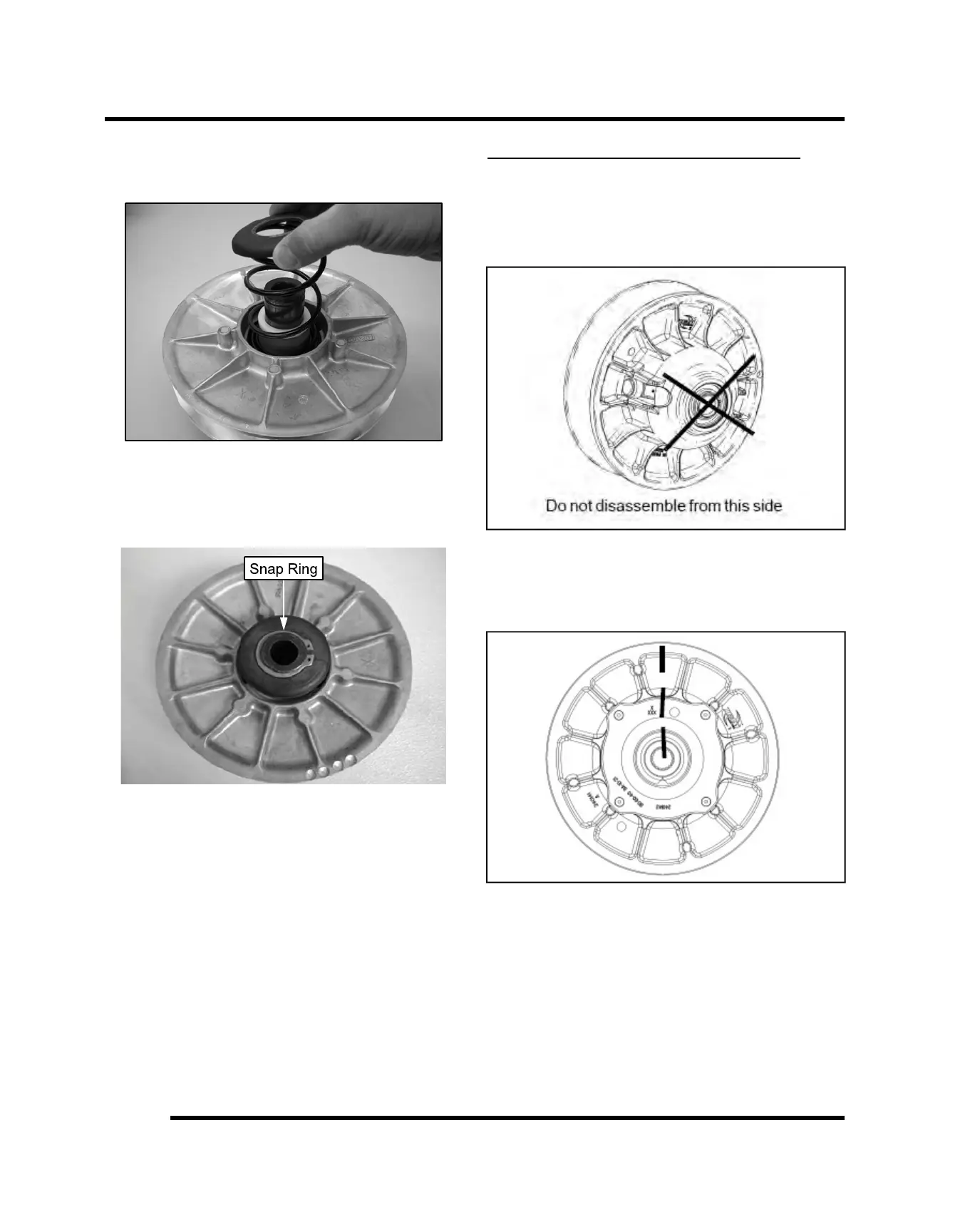

4. Install the spacer over the shaft.
5. Install the outer retainer on top of the spring.
6. Place the driven clutch into the Universal Clutch
Compressor PU-50518.
7. Apply and hold downward pressure on the outer
spring retainer. Carefully install the snap ring.
DRIVEN CLUTCH SERVICE (EBS)
Clutch Disassembly
1. Remove driven clutch from the transmission input
shaft. Do not attempt disassembly of the driven
clutch from the outside snap ring. The driven clutch
must be disassembled from the helix side.
2. It is important to mark the position of the shaft, cam
cover and sheave before disassembly or use the X’s
on the components for reference. This will aid in
reassembly and helps to maintain clutch balance
after reassembly.
