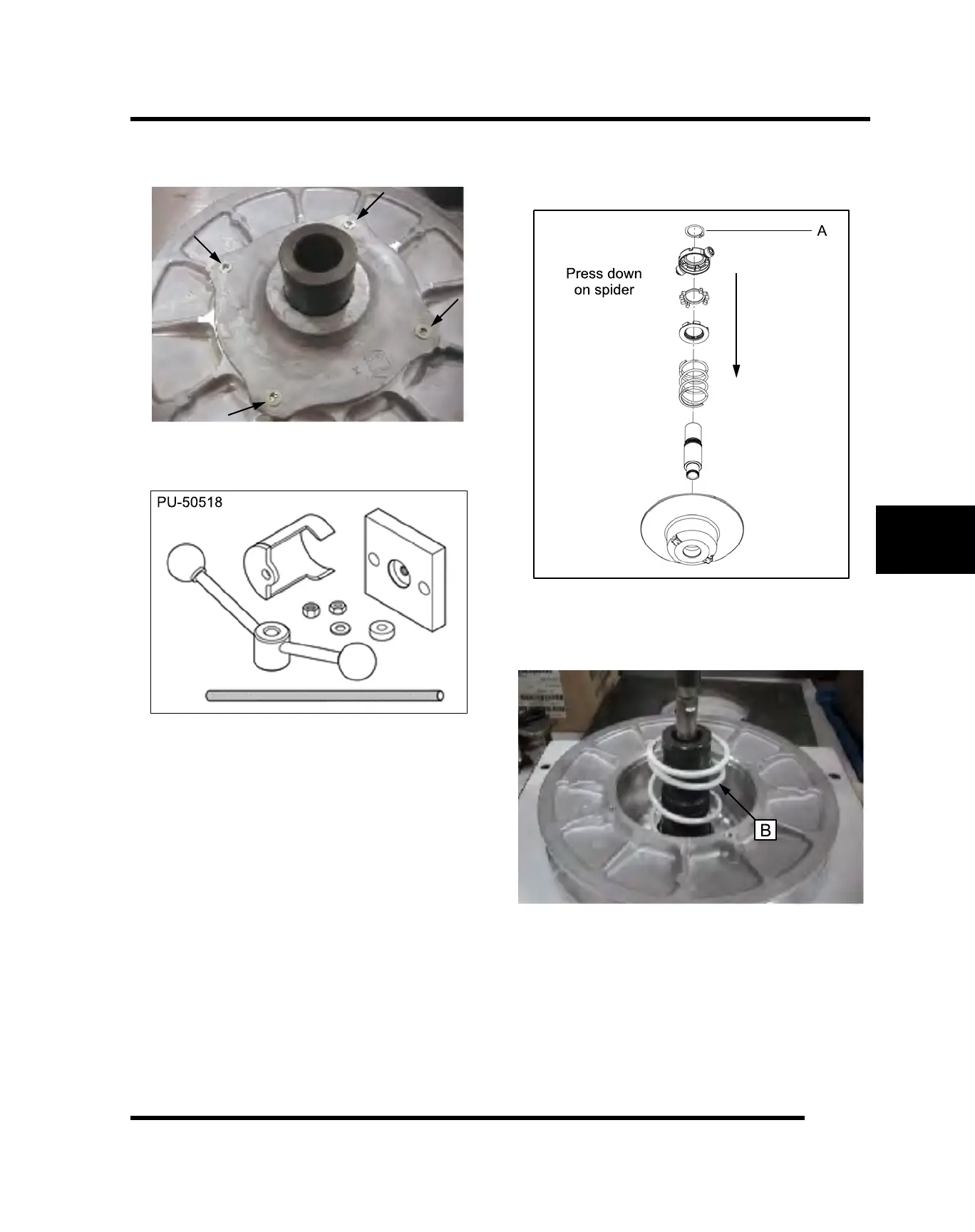

3. Remove the four screws that secure the cam (helix)
assembly using a T25 Torx driver.
4. Place the driven clutch into the Universal Clutch
Compressor PU-50518.
5. Press down on the top of the spider assembly,
pushing the spider onto the shaft. Remove snap ring
(A) and slowly release the assembly.
6. Remove the spider assembly and spring (B).
NOTE: Spring is compression only and has no
torsional wind.
