BODY COMPONENT REMOVAL
Seats

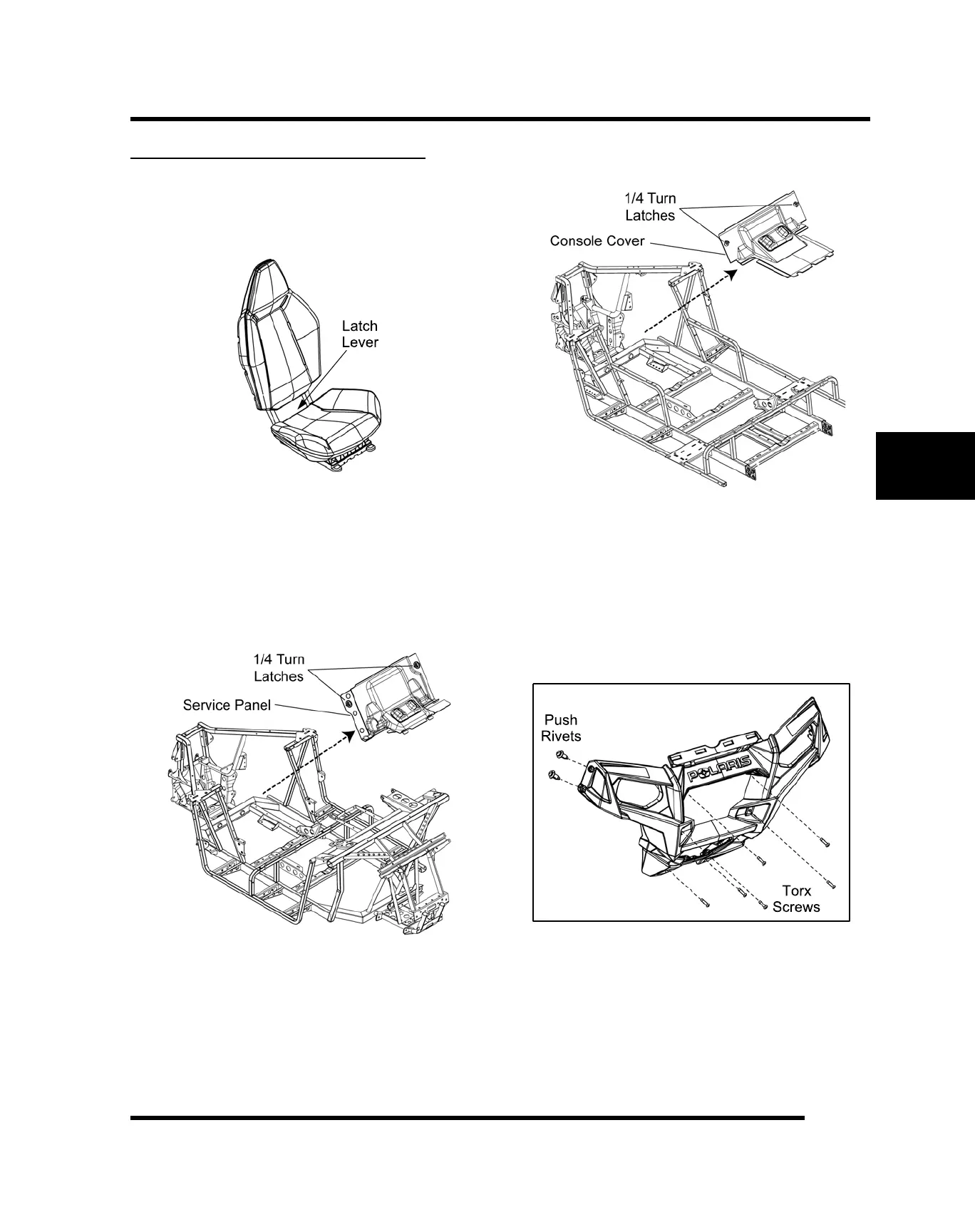

1. To remove any of the seats, lift upward on the latch
lever located behind the seat bottom.
2. Lift upward and forward on the seat while lifting up
on the latch lever and remove the seat from the
vehicle.
Rear Service Panel (RZR / RZR S)
1. Remove driver and passenger seats.
2. Turn both latches 1/4 turn to disengage the panel.
3. Lift the panel upward and towards the front of the
vehicle to remove it.
Rear Console Cover (RZR 4)
1. Remove the rear passenger seats.
2. Turn both latches 1/4 turn to disengage the cover.
3. Pull out on the top while pressing on the center of the
lower portion of the cover to free it from the vehicle.
4. Lift the cover upward and towards the front of the
vehicle to remove it.
Front Bumper
1. Remove the (4) push rivets from the sides of the
front bumper.
2. Remove the (6) Torx screws retaining the upper,
middle and lower portion of the bumper.
3. Disconnect the front head lamp connectors and
remove the front bumper from the vehicle.
