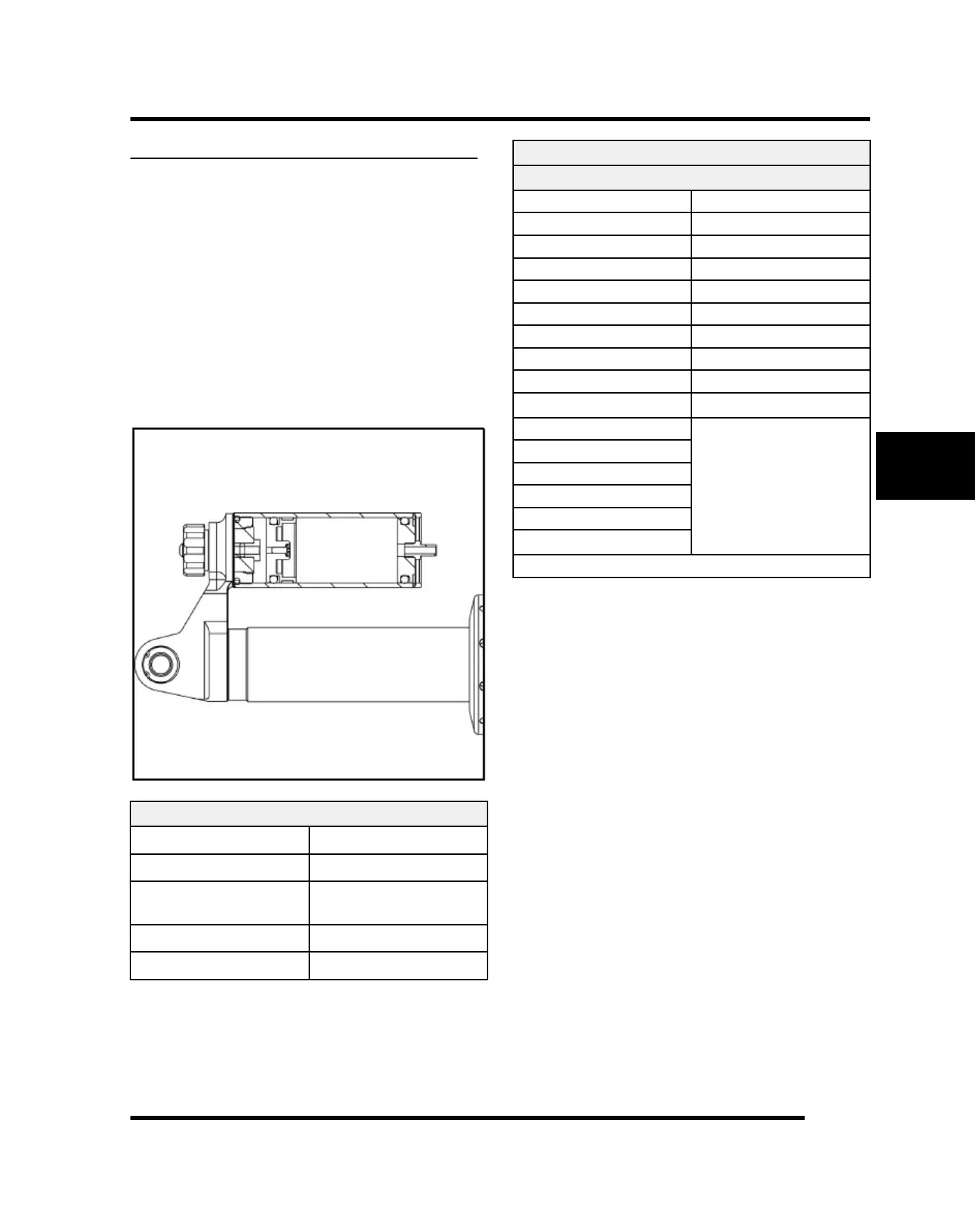

9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.
WALKER EVANS™ SHOCK SERVICE
General Service Information
Recommended Service Intervals
Walker Evans™ Racing Shocks will perform the best if
serviced at regular intervals:
• Every ride - Wash and dry the vehicle and
suspension
• Every 100 hours - Visually inspect shock seals
• Every 1500 miles or Annually - Change shock oil
and replace seals
Front Shock Service Information
SHOCK DESIGN DETAILS
Travel
5.313” (135 mm)
Extended Length 16.313” (414.4 mm)
IFP Location
3.00 ± 0.13” (76.2 ± 3.3
mm)
Nitrogen Pressure 100 psi (689 kPa) ± 10%
Gas Shock Oil
2874124 (qt.)
RZR 800 XC
SHOCK VALVING
COMPRESSION REBOUND
1.550 x 0.008 1.500 x 0.010
1.000 x 0.008 1.100 x 0.008
1.500 x 0.008 1.450 x 0.010
0.900 x 0.008 1.300 x 0.010
1.450 x 0.008 1.200 x 0.010
1.100 x 0.008 1.100 x 0.010
1.500 x 0.010 1.000 x 0.010
1.450 x 0.010 0.900 x 0.010
1.300 x 0.010
1.000 x .065 Back-Up
1.200 x 0.010
1.100 x 0.010
1.000 x 0.010
0.900 x 0.010
0.750 x 0.065
1.500 x .125 Top-Out
Piston Bleed Orifice: 0.086
