DRIVEN CLUTCH SERVICE (NON-EBS)

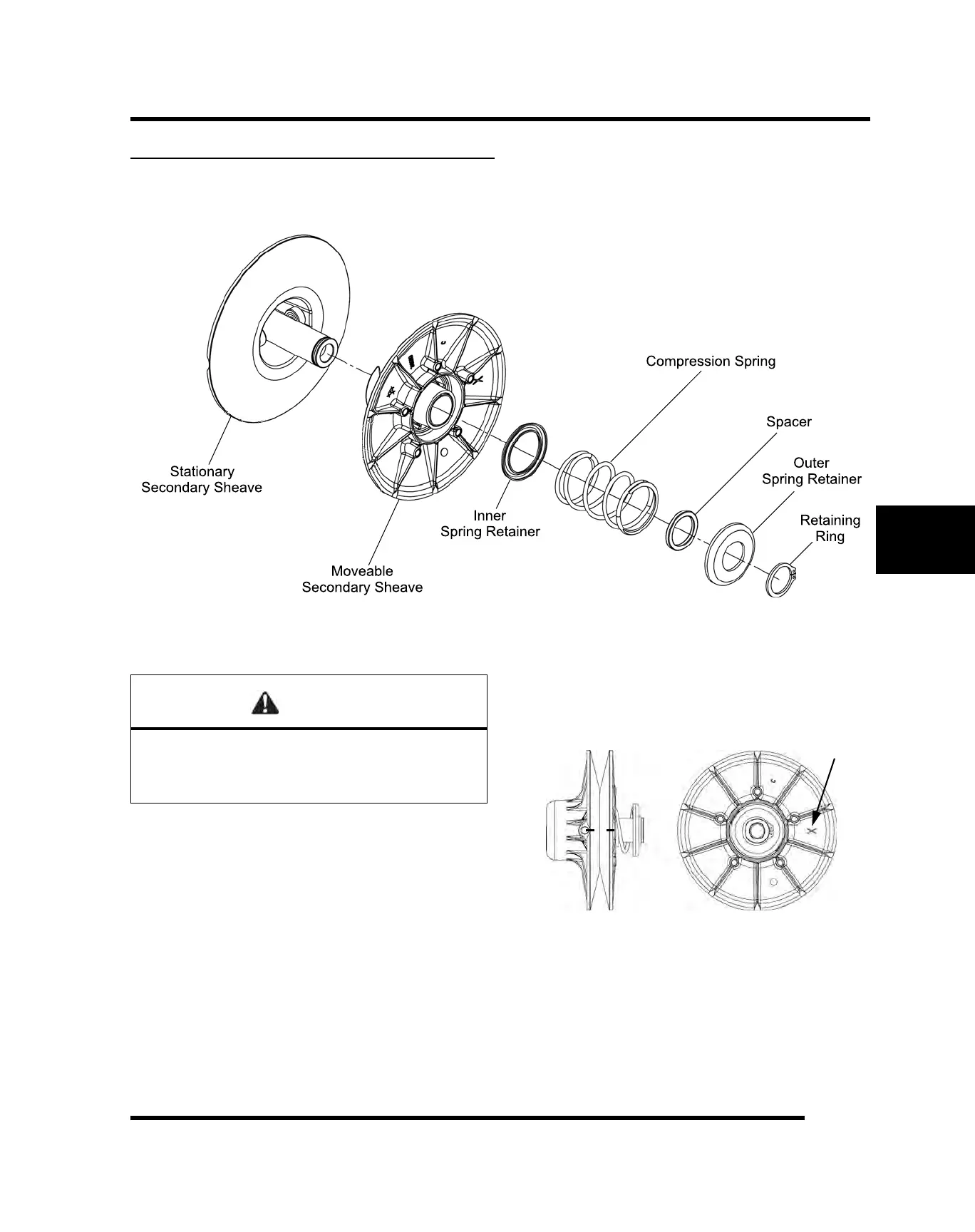

Exploded View
Clutch Disassembly / Inspection
CAUTION
Wear eye protection when removing snap ring to
prevent serious personal injury.
Use caution when removing, the snap ring pressure is
loaded by the compression spring.
1. Remove driven clutch from transmission input shaft.
2. Mark the position of the clutch sheaves before
disassembly or use the X’s on the sheaves for
reference. This aids in reassembly and maintains
clutch balance after reassembly.
CLUTCHING
