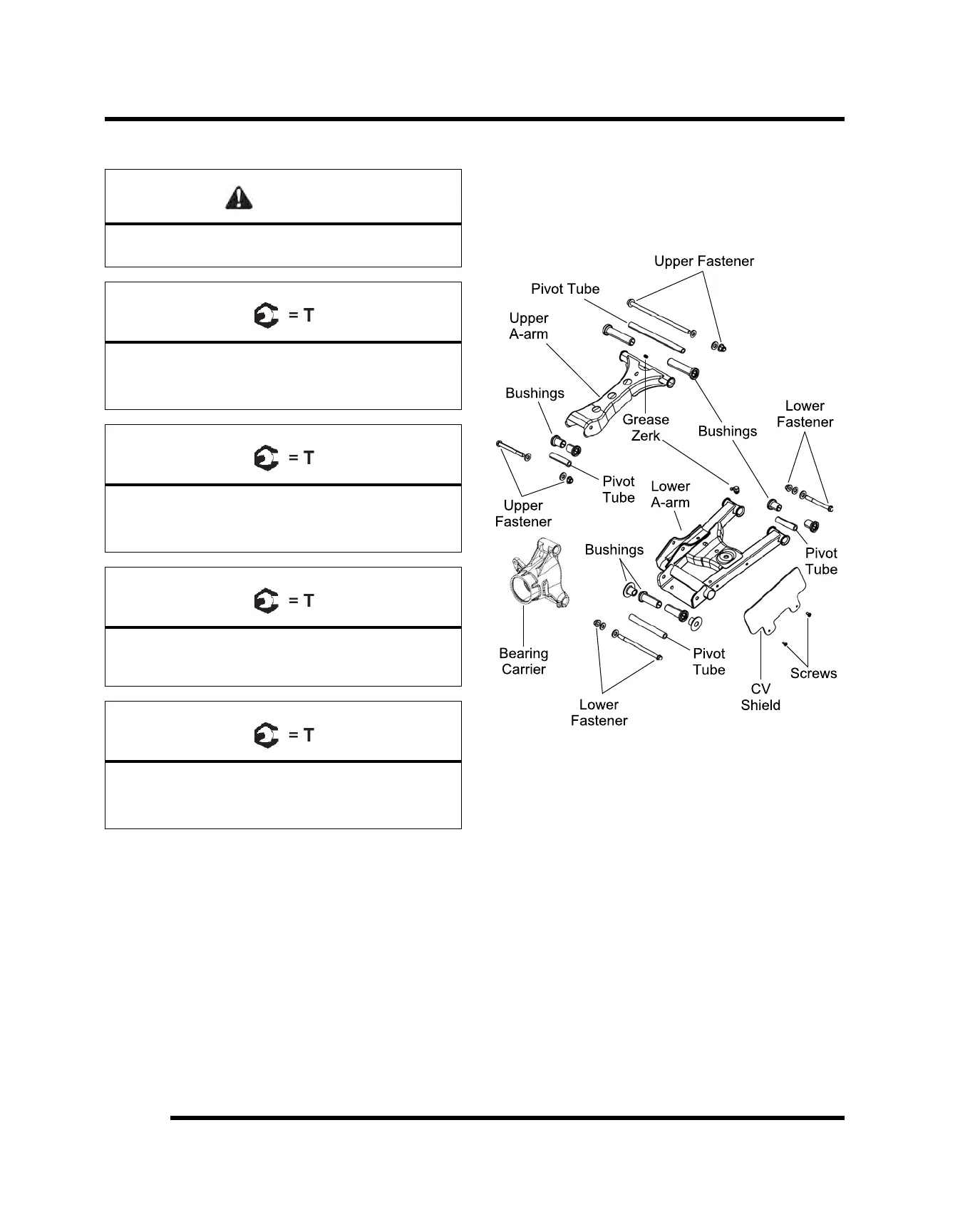

Polaris RZR 800 2013 - Exploded View (Rzr)

5.44
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.
7. Install wheel and torque wheel nuts to specification.
WARNING
Upon A-arm installation completion, test vehicle at low
speeds before putting into service.
Rear Upper / Lower A-arm Bolts:
RZR: 33 ft-lbs (45 Nm)
RZR S / RZR 4: 40 ft-lbs (54 Nm)
Lower Rear Bearing Carrier Bolts:
RZR: 38 ft-lbs (52 Nm)
RZR S / RZR 4: 40 ft-lbs (54 Nm)
Shock Mounting Bolts:
RZR: 37 ft-lbs (50 Nm)
RZR S / RZR 4: 37 ft-lbs (50 Nm)
Upper Rear Bearing Carrier Bolts:
RZR: 33 ft-lbs (45 Nm)
RZR S / RZR 4: 40 ft-lbs (54 Nm)
Exploded View (RZR)
BODY / STEERING / SUSPENSION
