7.60
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

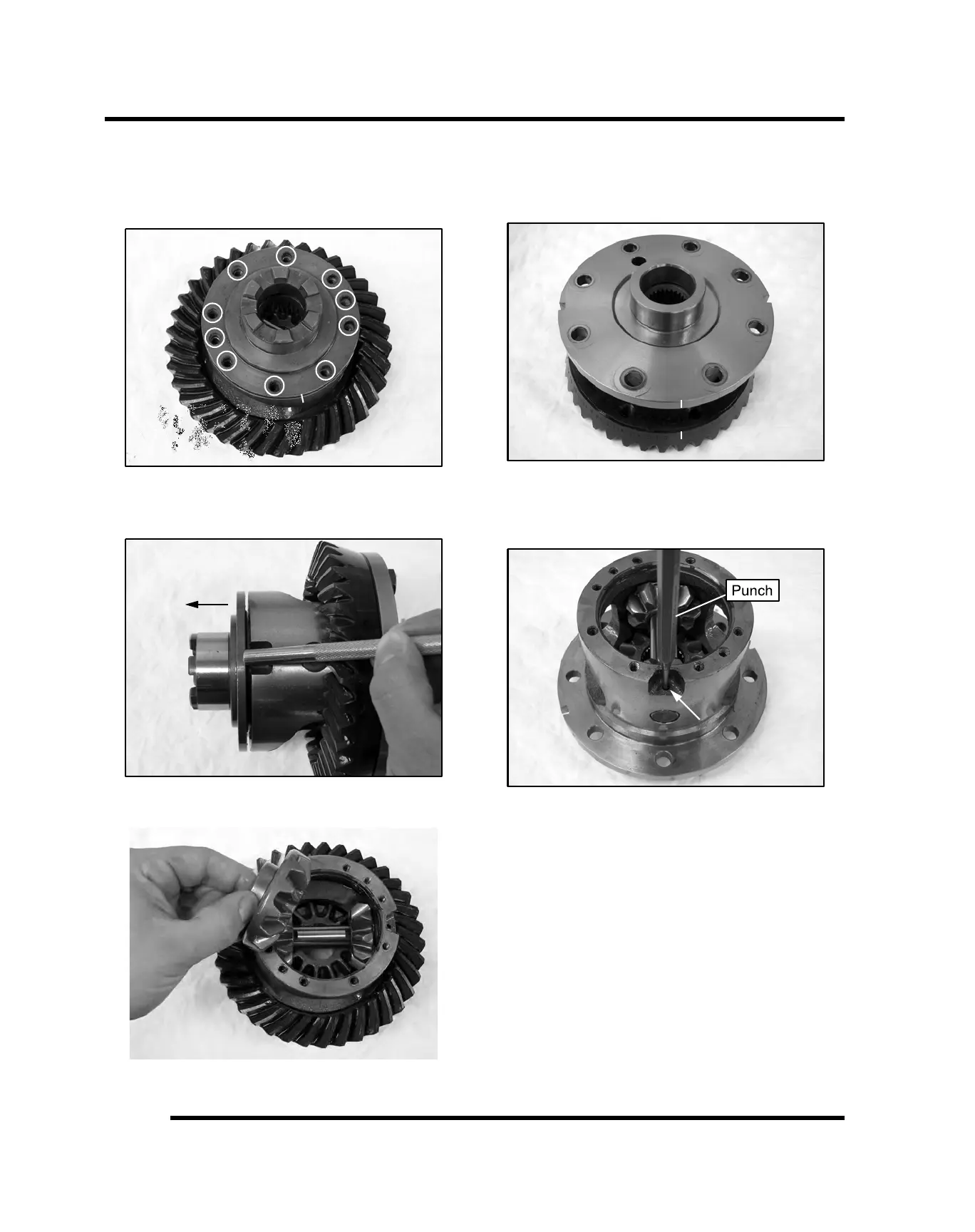

Differential Disassembly
1. Use a scribe to mark the differential cover and case.
Remove the (10) screws retaining the differential
cover.
2. Use a brass punch in the recessed area as shown to
remove the differential cover.
3. Remove the upper differential gear.
4. Use a scribe to mark the ring gear and differential
case. Remove the (8) bolts that secure the ring gear
to the differential and allow the ring gear to slide
down and off.
5. Place the differential assembly upright. Use a roll pin
punch to remove the roll pin from the differential
case.
FINAL DRIVE
