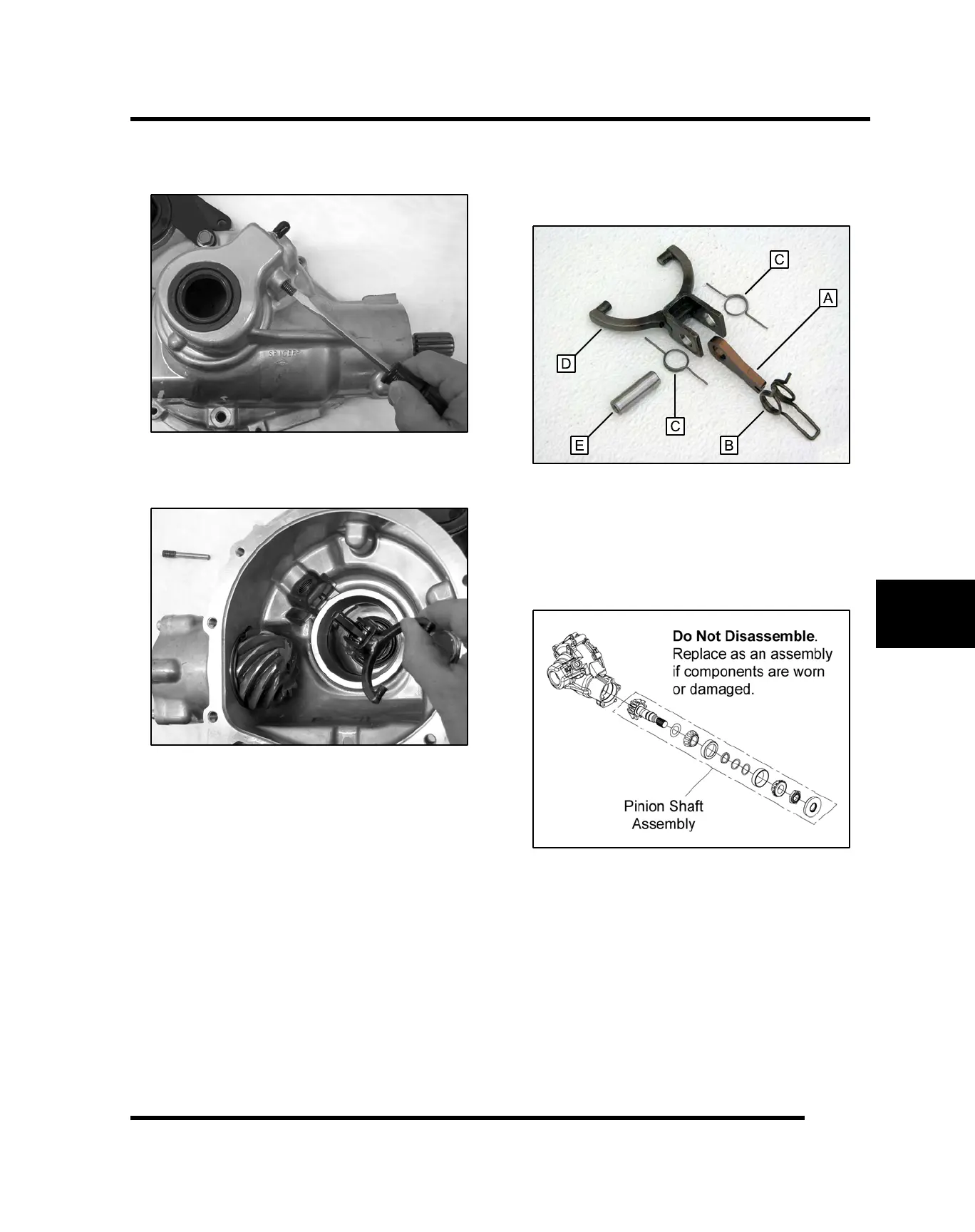

17. Loosen and remove the lock pin assembly from the
gearcase housing.
18. Carefully remove the shift yoke assembly from the
gearcase cover.
19. Inspect the shift lever (A), shift lever spring (B), shift
return springs (C), shift yoke (D), and lock pin
bushing (E). Inspect the components for excessive
wear or damage and replace as needed.
NOTE: The pinion shaft assembly is NOT
intended to be disassembled from the case, as it
requires special OEM tooling in order to properly
reassemble. If there is any damage to the pinion
gear, bearings or case, the gearcase assembly
must be replaced.
FINAL DRIVE
