9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

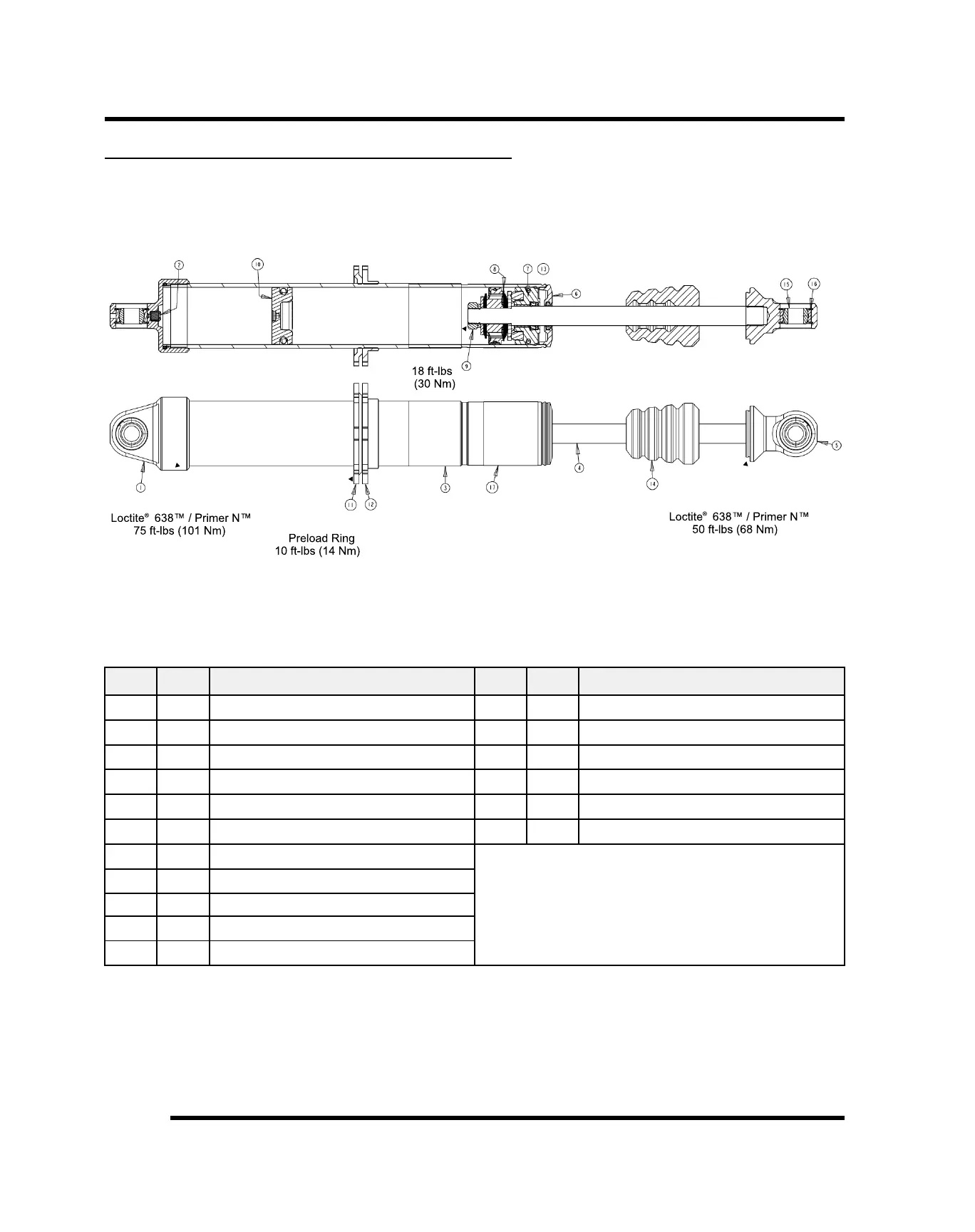

FOX™ PODIUM TOP FILL SHOCK SERVICE
FOX™ 2.0 PODIUM Top Fill Shock (RZR 4
Base Models)
Ref.
Qty
Description
Ref.
Qty
Description
1. 1
Body Cap Asm.
12. 1
Preload Ring
2. 1 Air Valve Asm. 13. 1
Retaining Ring
3. 1
Body
14. 1
Bumper
4. 1 Shaft .620” O.D. 15. 2
Spherical Bearing
5. 1
Eyelet
16. 1
Spiral Retaining Ring
6. 1
Bearing Cap Asm.
- -
Shock Oil (2870995)
7. 1
Bearing Asm.
8. 1
Valving Asm.
9. 1 Lock Nut
10. 1
Piston Asm. Floating
11. 1
Preload Ring
