9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

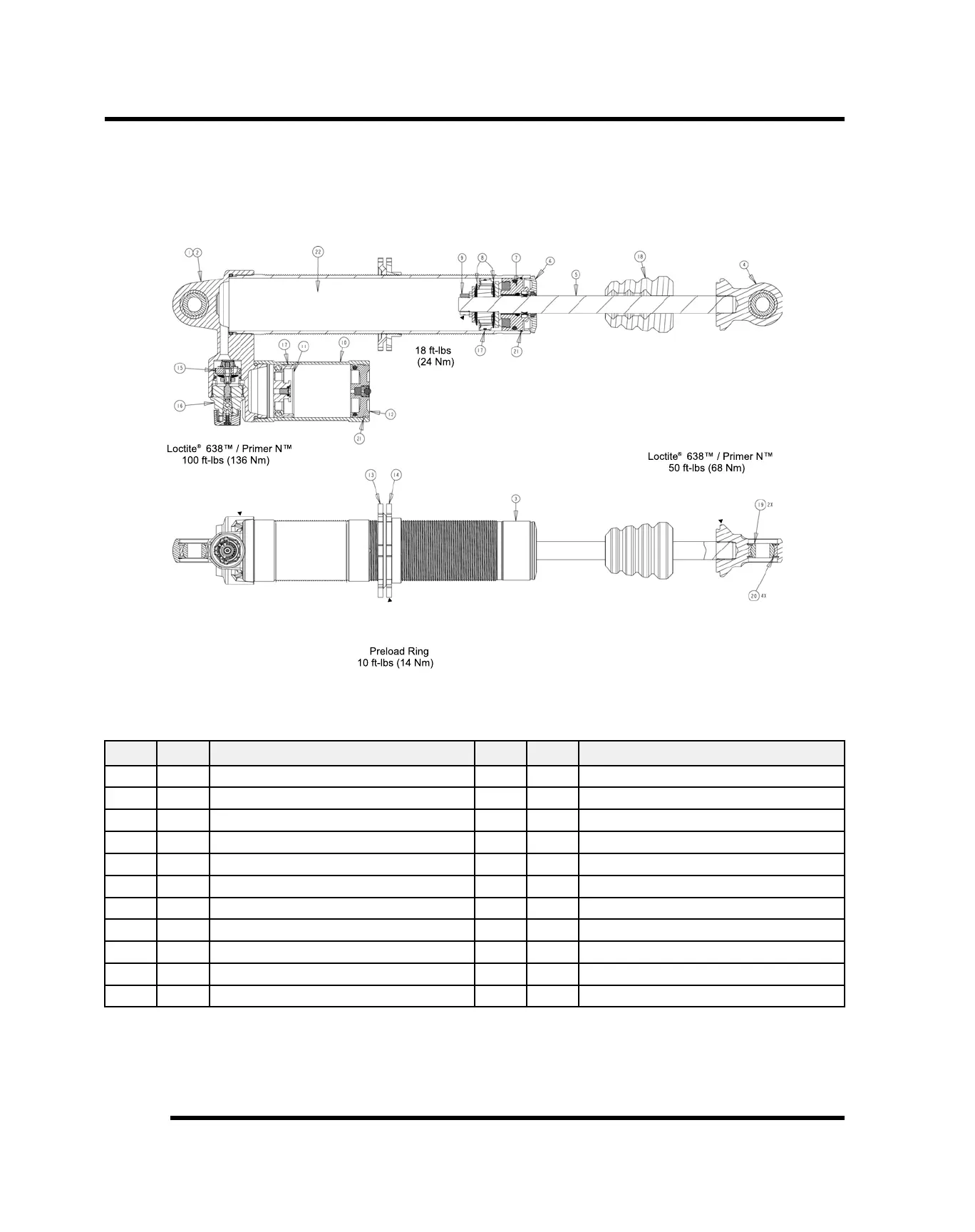

FOX™ 2.0 PODIUM ‘Piggyback’ Shock (RZR
4 L.E. Models)
Ref.
Qty
Description
Ref.
Qty
Description
1. 1
Body Cap Asm.
12. 1
Reservoir End Cap Asm.
2. 1
Body Cap
13. 1
Preload Ring, Jam Nut
3. 1
Body
14. 1
Preload Ring
4. 1
Eyelet
15. 1
Damping Adjust Asm., Piston
5. 1 Shaft 16. 1
Damping Adjust Asm., Concentric
6. 1
Bearing Cap Asm.
17. 2
Bearing, External
7. 1
Bearing Asm.
18. 1
Bumper
8. 1
Valving Asm.
19. 2
Bearing, Spherical
9. 1 Lock Nut 20. 4
Retaining Ring
10. 1 Reservoir 21. 2
Retaining Ring
11. 1
Piston Asm, Floating (IFP)
22.
-
Shock Oil (2870995)
BODY / STEERING / SUSPENSION

Polaris RZR 800 2013 Specifications

General

Brand	Polaris
Model	RZR 800 2013
Category	Offroad Vehicle
Language	English
