9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

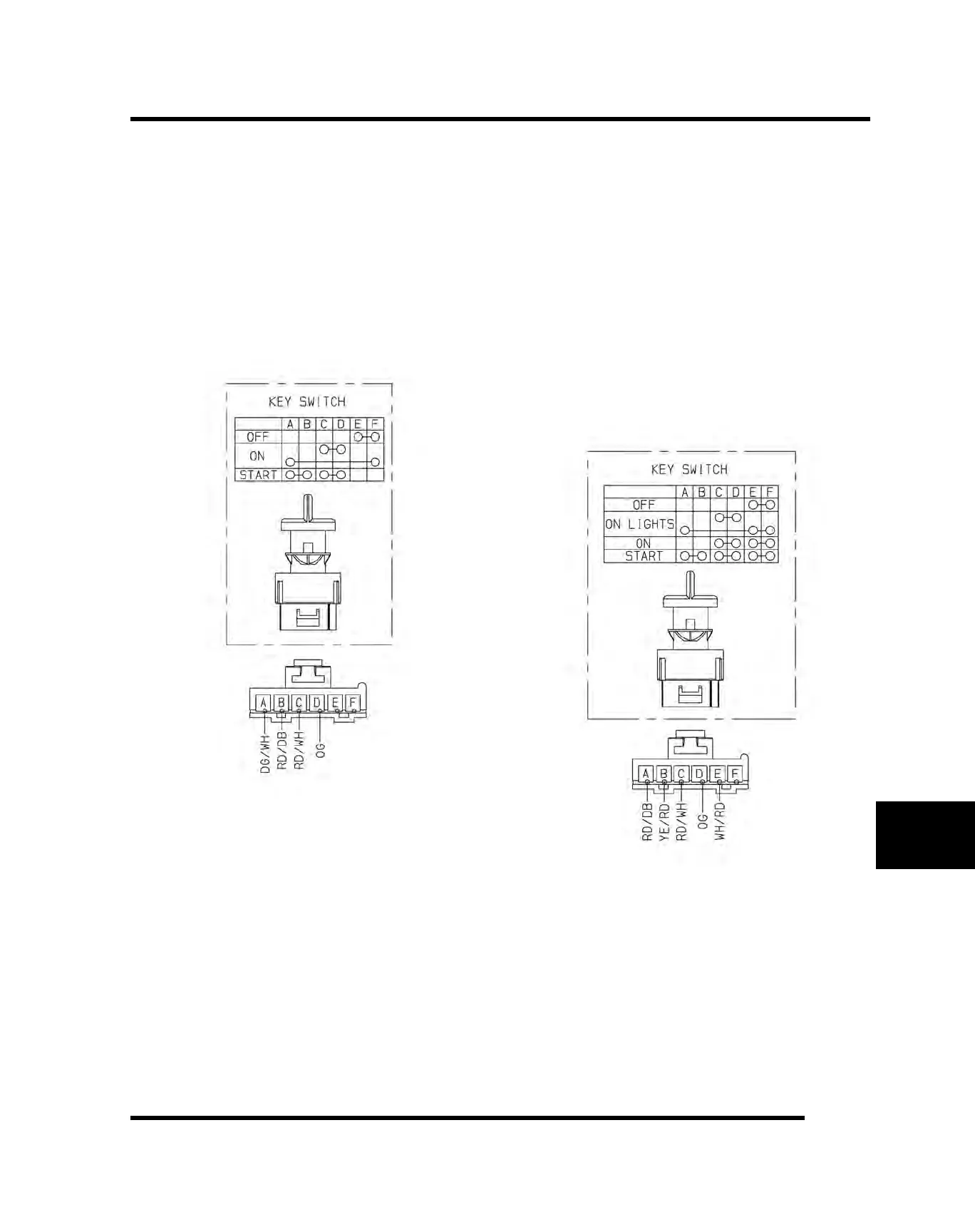

Ignition Key Switch
1. Disconnect the key switch harness by lifting the
connector lock and pulling on the connector. Do not
pull on the wiring.
2. Test between the 3 sets of outputs (OFF / ON /
START). If any of the tests fail, replace ignition
switch assembly.
• Turn the ignition key to ON. There should be
continuity between switch pins C and D; A and F.
• Turn the ignition key to START. There should be
continuity between switch pins A and B; C and D.
Ignition Key Switch (INT’L)
1. Disconnect the key switch harness by lifting the
connector lock and pulling on the connector. Do not
pull on the wiring.
2. Test between the 4 sets of outputs (OFF / ON
LIGHTS / ON / START). If any of the tests fail,
replace ignition switch assembly.
• Turn the ignition key to ON LIGHTS. There should
be continuity between switch pins A, E and F; C
and D.
• Turn the ignition key to ON. There should be
continuity between pins C and D; E and F.
• Turn the ignition key to START. There should be
continuity between pins A and B; C and D; E and
F.
ELECTRICAL
